John Bean BFH 1000 Series Operators Manual

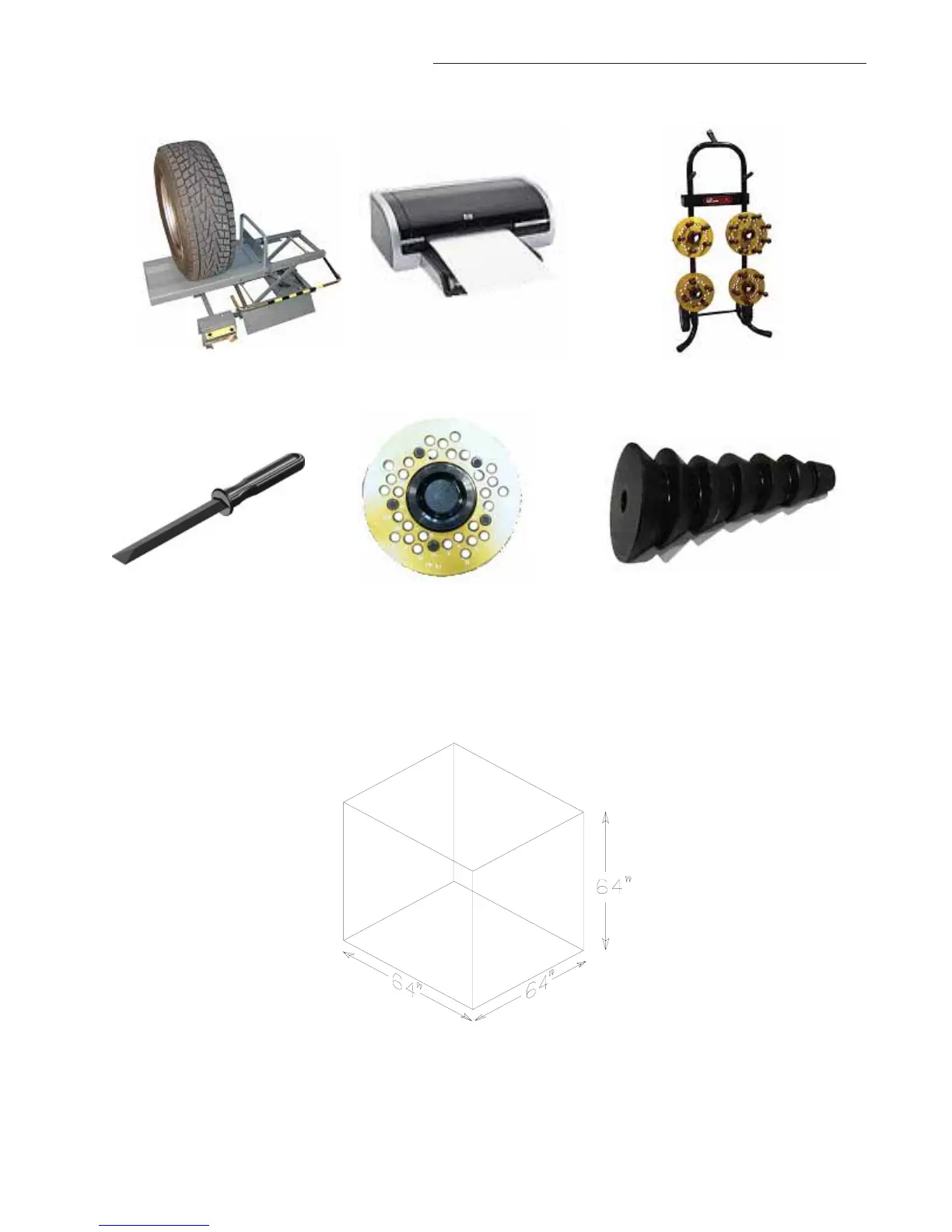

Figure 3 - Footprint Requirements
1.6 OPTIONAL ACCESSORIES - SEE FIGURE 2
Wheel Lift - EAK0221J27A Printer Kit - EAK0221J26A Flange Plate Cart
EAS2081J30A
Stick-on Weight Removal Tool Flange Plates - Kit of 4 7 Cone Set - EAK0221J31A
EEHT300A EAK0221J22A (Standard with BFH Super)
PRE-INSTALLATION CONSIDERATIONS
1.7 DIMENSIONS OF THE MACHINE
Figure 2
EAM0003J64 – 1.70" T0 2.23" Cone
EAM0003J65 – 2.03" T0 3.17" Cone
EAM0003J66 – 2.38" T0 3.51" Cone
EAM0003J67 – 2.74" T0 3.87" Cone
EAM0003J68 – 3.08" T0 4.21" Cone
EAM0003J69 – 3.42" T0 5.40" Cone
EAM0003J70 – 4.21" T0 6.30" Cone
