John Bean BFH 1000 - 8.4 Bare Rim Diagnosis

John Bean BFH 1000 Operators Manual
Page 27

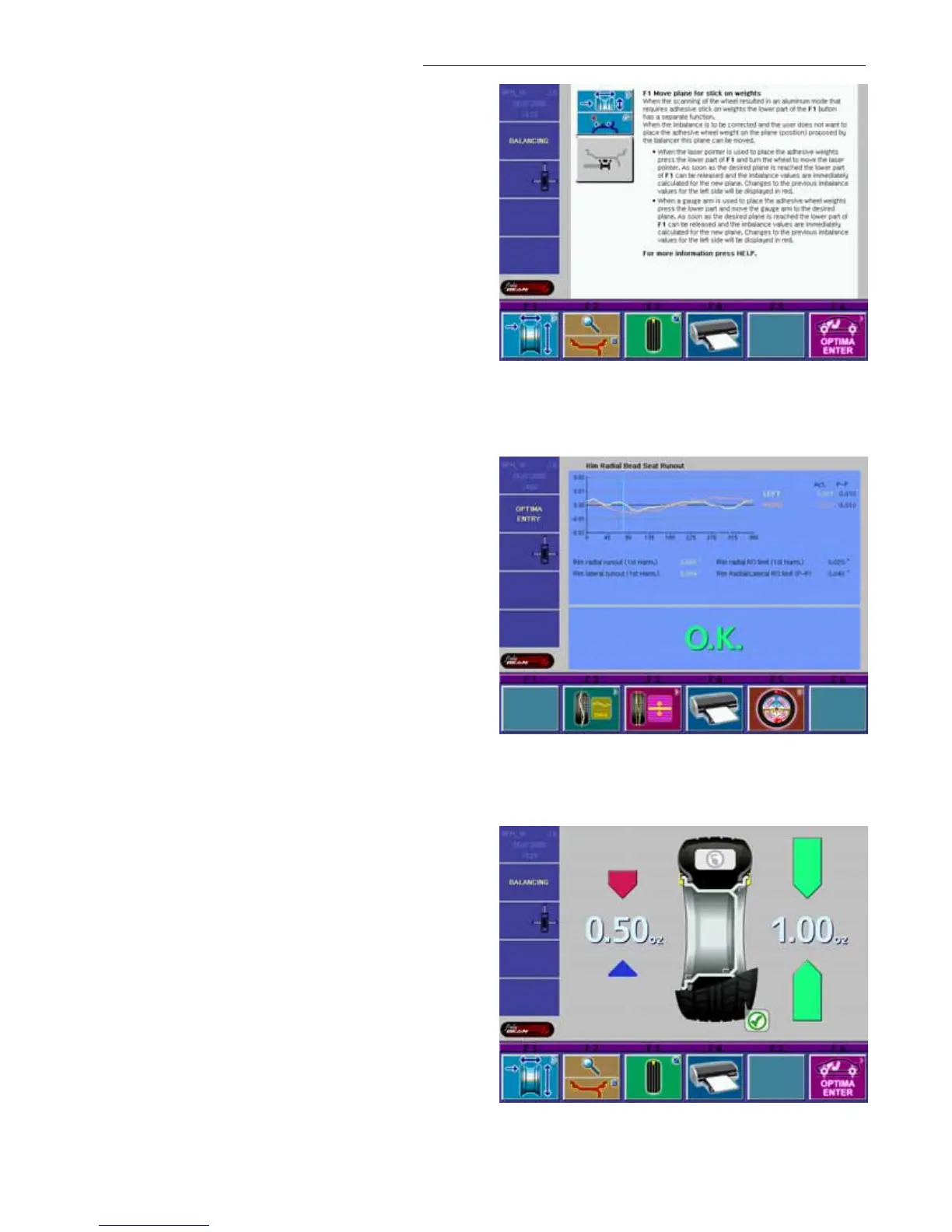

Figure 35
If at any time the process is in question, press the
“HELP” key on the keyboard for more information re-
garding the current process. See Figure 35.
8.4 Bare Rim Diagnosis
The BFH 1000 has the ability to automatically detect
the presence of a bare rim when mounted. The unit will
then measure both bead seat surfaces for radial runout
. The unit will then display a report with a graphical dis-
play of surface irregularities and the values of runout.
See Figure 36
Press cancel to prompt to the weight placement screen
to view the amount of imbalance and correct if desired.
See Figure 37.
Figure 36
Figure 37
