Page 26

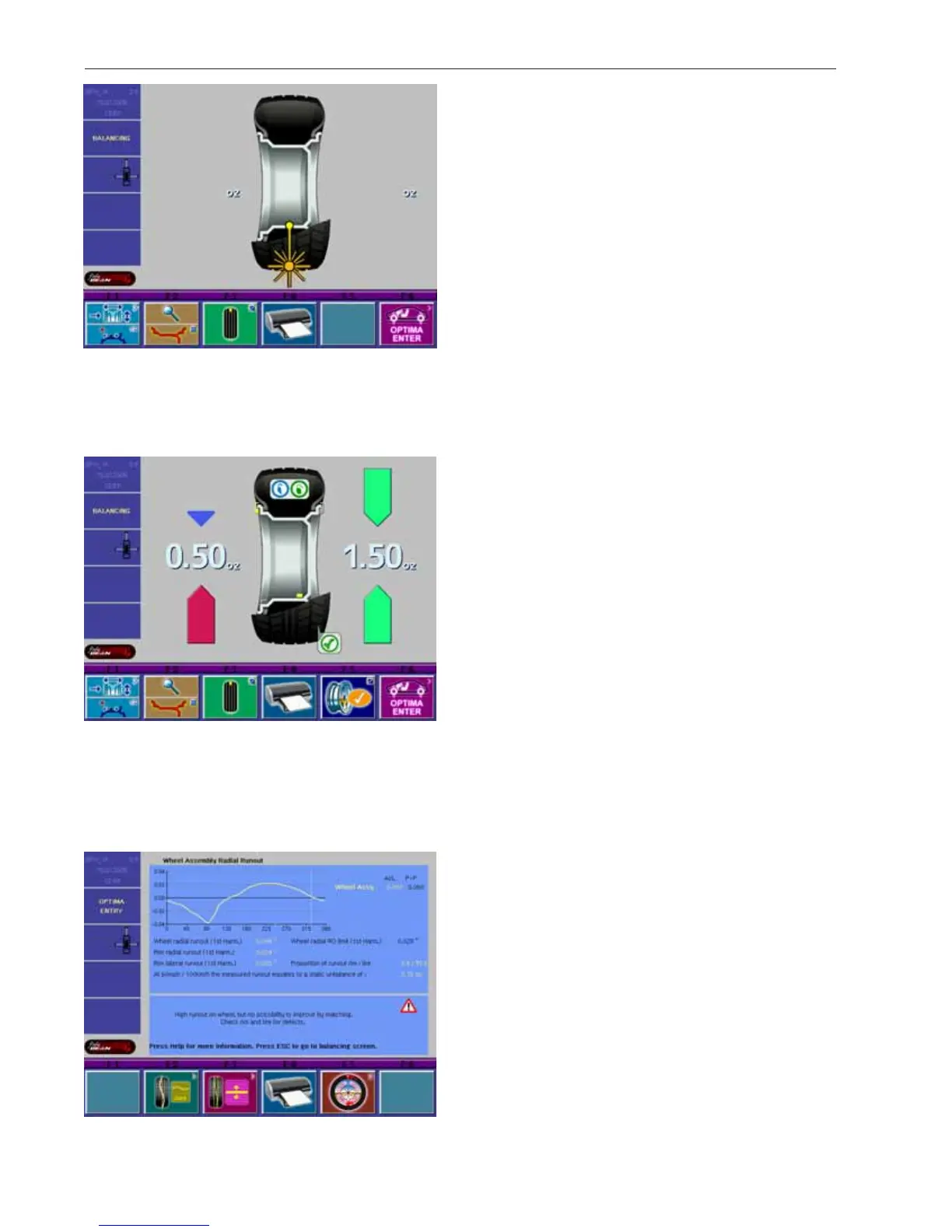

The unit will re-profile and recalculate based on the new
tire-rim combination. See Figure 32.
Corrective weight amounts and locations will be displayed.
If the assembly again exceeded the threshold, the BFH
1000 screen would be displayed with additional sugges-
tions. See Figure 33.
If the assembly passed this time the BFH 1000 display
would say “OK”. If a problem is detected, the information
is displayed on the diagnostics screen. See Figure 34,
the example indicated a high runout on the wheel, BFH
1000 procedures are not possible.
The static equivalent imbalance is shown. A static equiva-
lent indicates how much static imbalance it would take to
equal the out of round condition of this tire.
Figure 32
Figure 33
Figure 34
