Johnson Controls F4-CVM03050-0 - Termination Diagrams

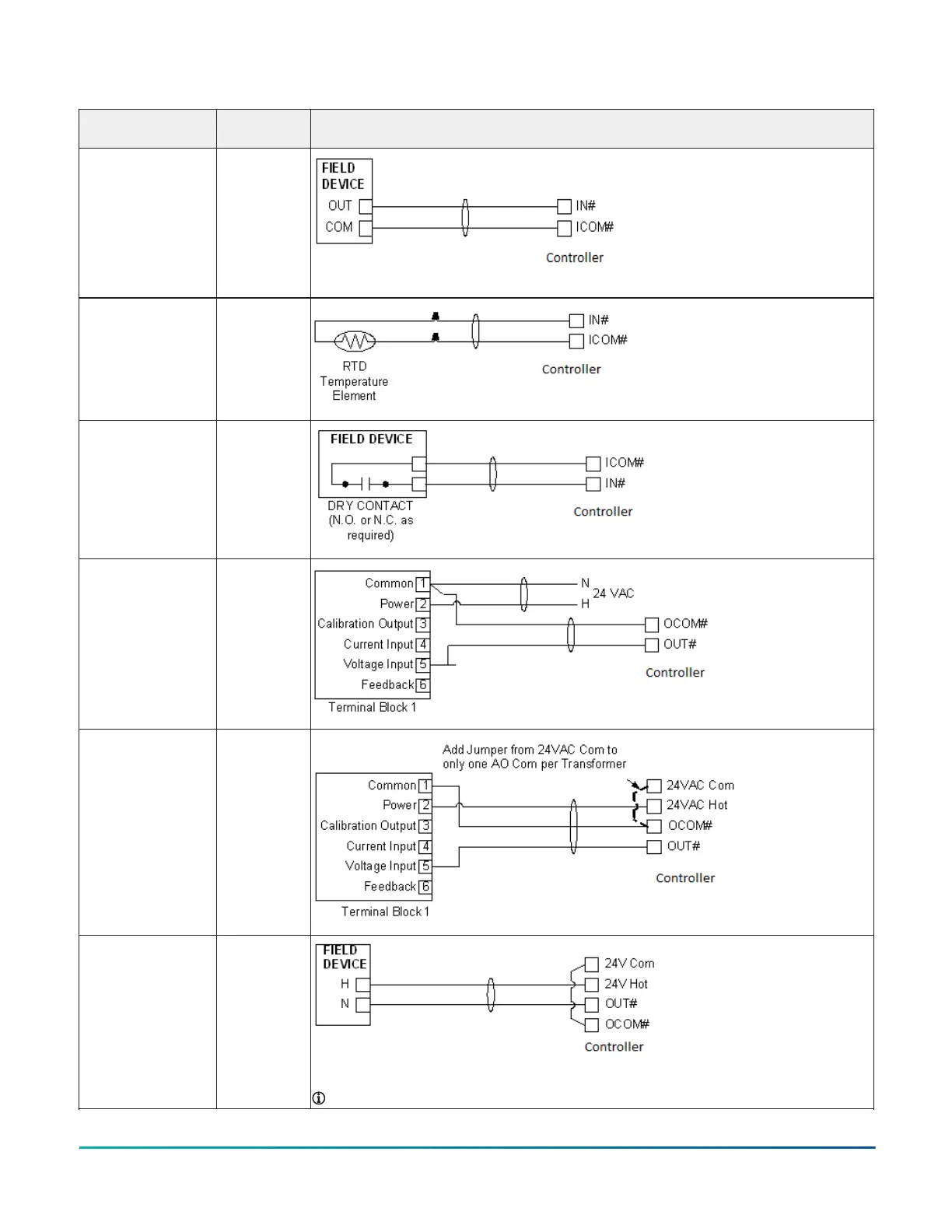

Table 8: Termination details
Type of Field Device
Type of Input/
Output
Termination diagrams
0–10 VDC Output to
Actuator (Internal
Source)
CO
24 VAC Triac Output
(Switch Low, External
Source)
CO
Note: Applies to CO4 and CO5.
Incremental Control
to Actuator (Switch
Low, External Source)
CO
Note: Applies to CO4 and CO5.
Analog Output
(Voltage)
CO
Incremental Control
to Actuator (Switch
Low, Internally
Sourced)
BO
Note: Applies to BO3 (for only), BO1, and BO2.
24 VAC Binary
Output (Switch Low,
Internally Sourced)
BO
F4-CV Series VAV Terminal Equipment Controllers Installation Guide12
