RXF ROTARY SCREW COMPRESSOR UNITS
MAINTENANCE
070.410-IOM (JAN 12)
Page 38

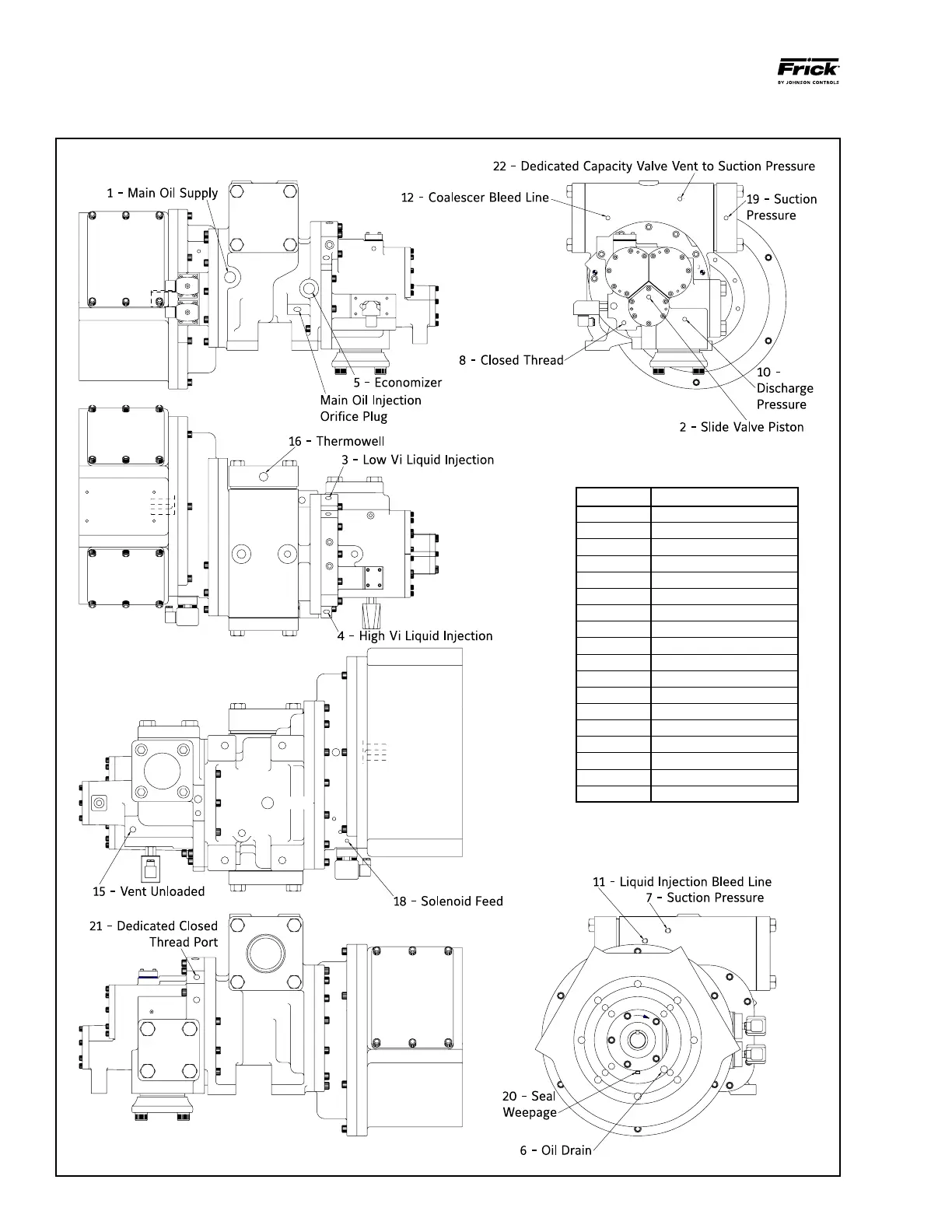

COMPRESSOR PORT LOCATIONS - RXF 24 - 50
PORT CONNECTION SIZE
1 1 - 11½ NPTF
2 1/4 - 18 NPTF
3 3/8 - 18 NPTF
4 3/8 - 18 NPTF
5 1 - 11½ NPTF
6 1/2 - 14 NPTF
7 1/4 - 18 NPTF
8 1/4 - 18 NPTF
10 1/4 - 18 NPTF
11 1/4 - 18 NPTF
12 1/4 - 18 NPTF
15 3/8 - 18 NPTF
16 3/4 - 14 NPTF
18 1/8 - 27 NPTF
19 1/4 - 18 NPTF
20 1/8 - 27 NPTF
21 3/8 - 18 NPTF
22 1/4 - 18 NPTF
