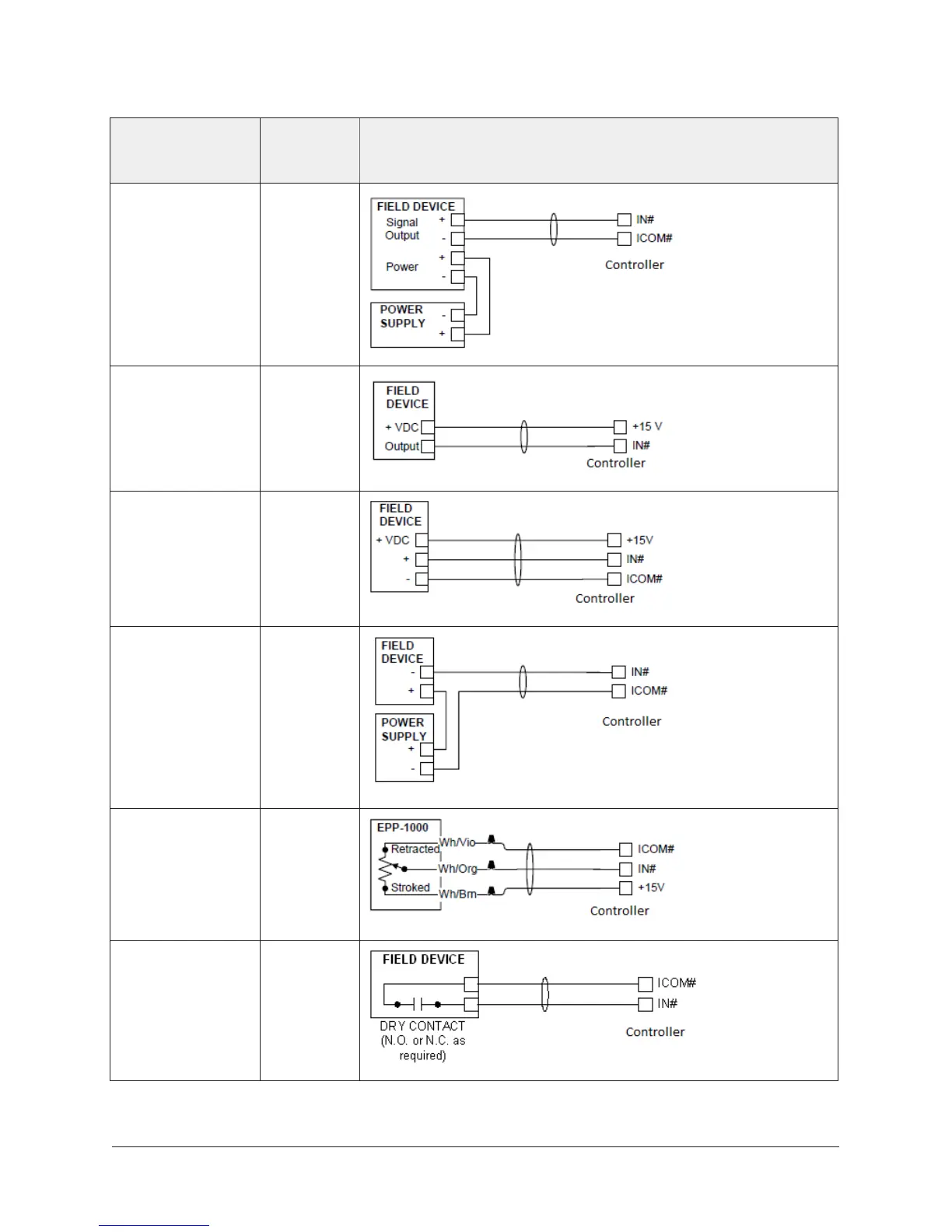

Table 2: Termination details
Type of field
device
Type of
Input/
Output
Termination diagrams
Current Input -
External Source
(Isolated)
UI
Current Input -
Internal Source
(2-wire)
UI
Current Input -
Internal Source (3
wire)
UI
Current Input -
External Source
(in Loop)
UI
Feedback from
EPP-1000
UI
Dry Contact
(Binary Input)
FX-PCG26 General Purpose Programmable Controller Installation Instructions12
