Board Layout
See Figure 7 for the location of LEDs, option slots, and
other features of the FX30E/FX60E. See Figure 10 for a
side view of communication ports and other features. The
FX30E/FX60E ships with onboard static RAM (SRAM)
that can provide station backup during power loss, and
also has two open option card slots for a variety of
available option cards.
Note: An optional NiMH battery pack is included, but
not connected. For connection instructions, see
Backup Configurations.

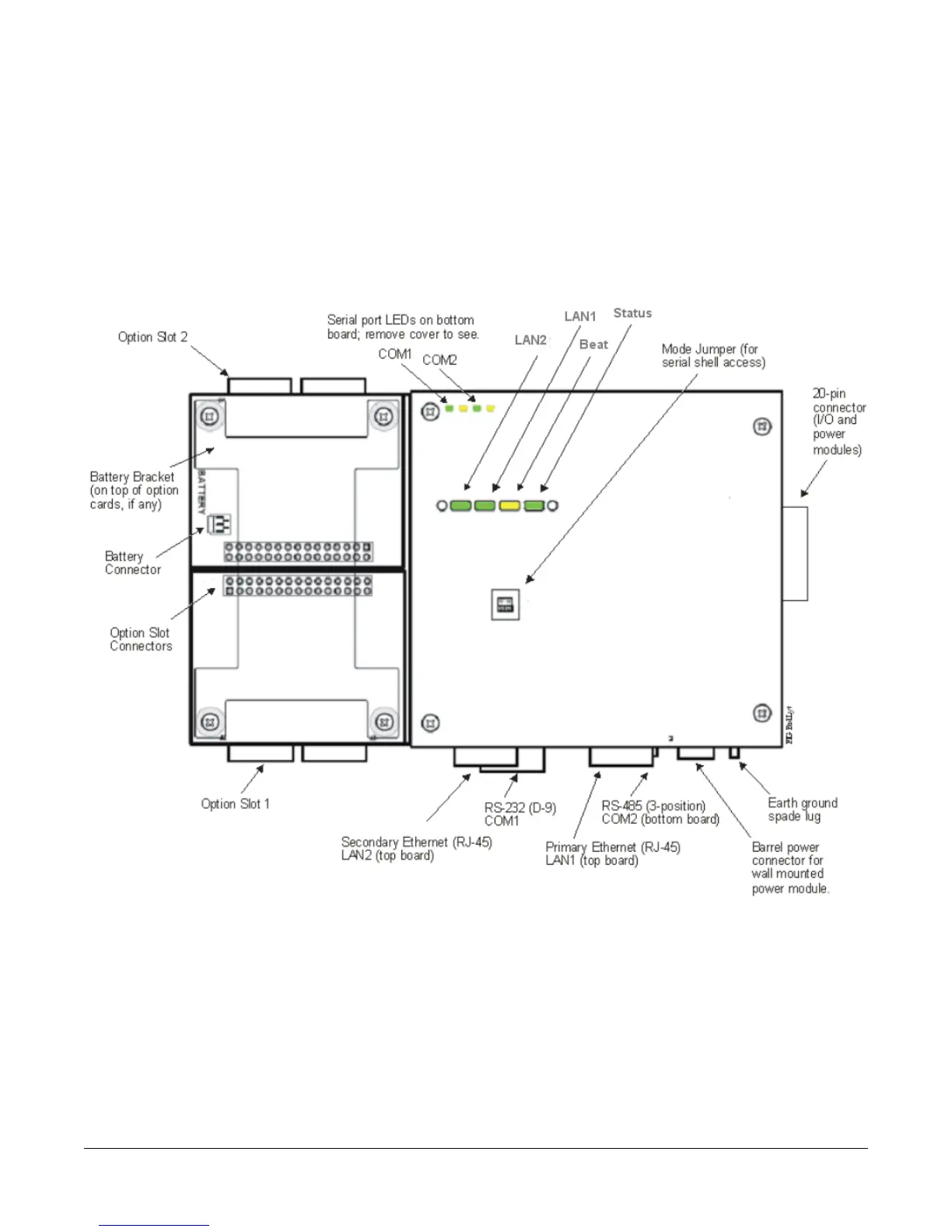

Figure 7: FX30E/FX60E Board Layout Details
8FX30E/FX60E Supervisory Controllers Installation Instructions

Johnson Controls FX30E Specifications

General

Brand	Johnson Controls
Model	FX30E
Category	Controller
Language	English
