Johnson Controls HICM008B21S User Manual

MAINTENANCE
4-6
SM-18003

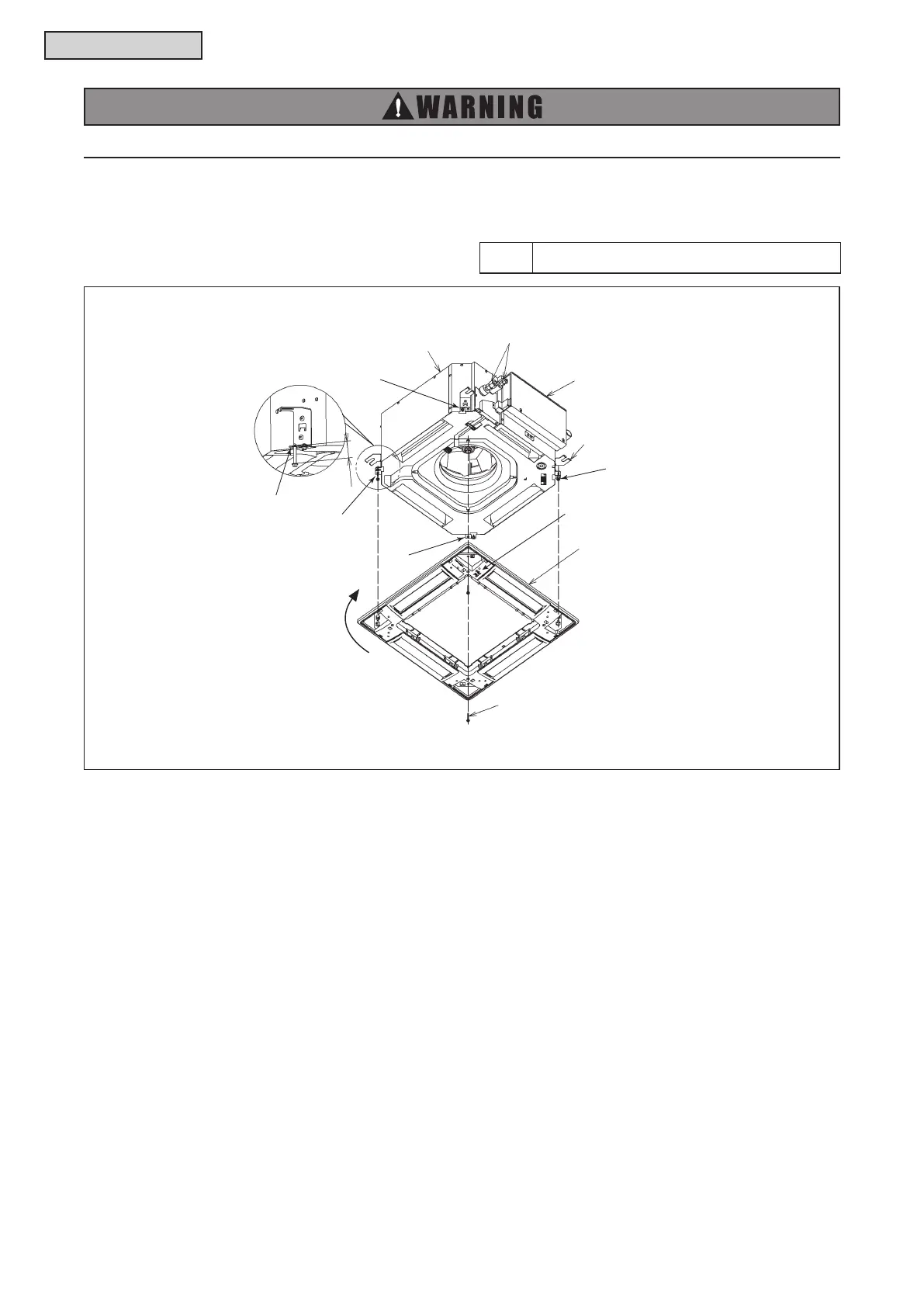

(3) RemovethelongscrewsofAatthedecorativepanel.LoosenthelongscrewsofBandrotatethe
decorativepanelaccordingtothearrowdirectiontoremovethedecorativepanel.
Refrigerant Pipe
Electrical Box
Indoor Unit
Fixing Plate
(Indoor Unit)
Decorative Panel
Indication
“PIPE SIDE”
Long Screw
(Qty: 4pcs.)
33
A
B
A
B
Mounting
Sheet
TURN OFF all power source switches.
Tool PhillipsScrewdriver
