MAINTENANCE
4-16
SM-18003
TURN OFF all power source switches.

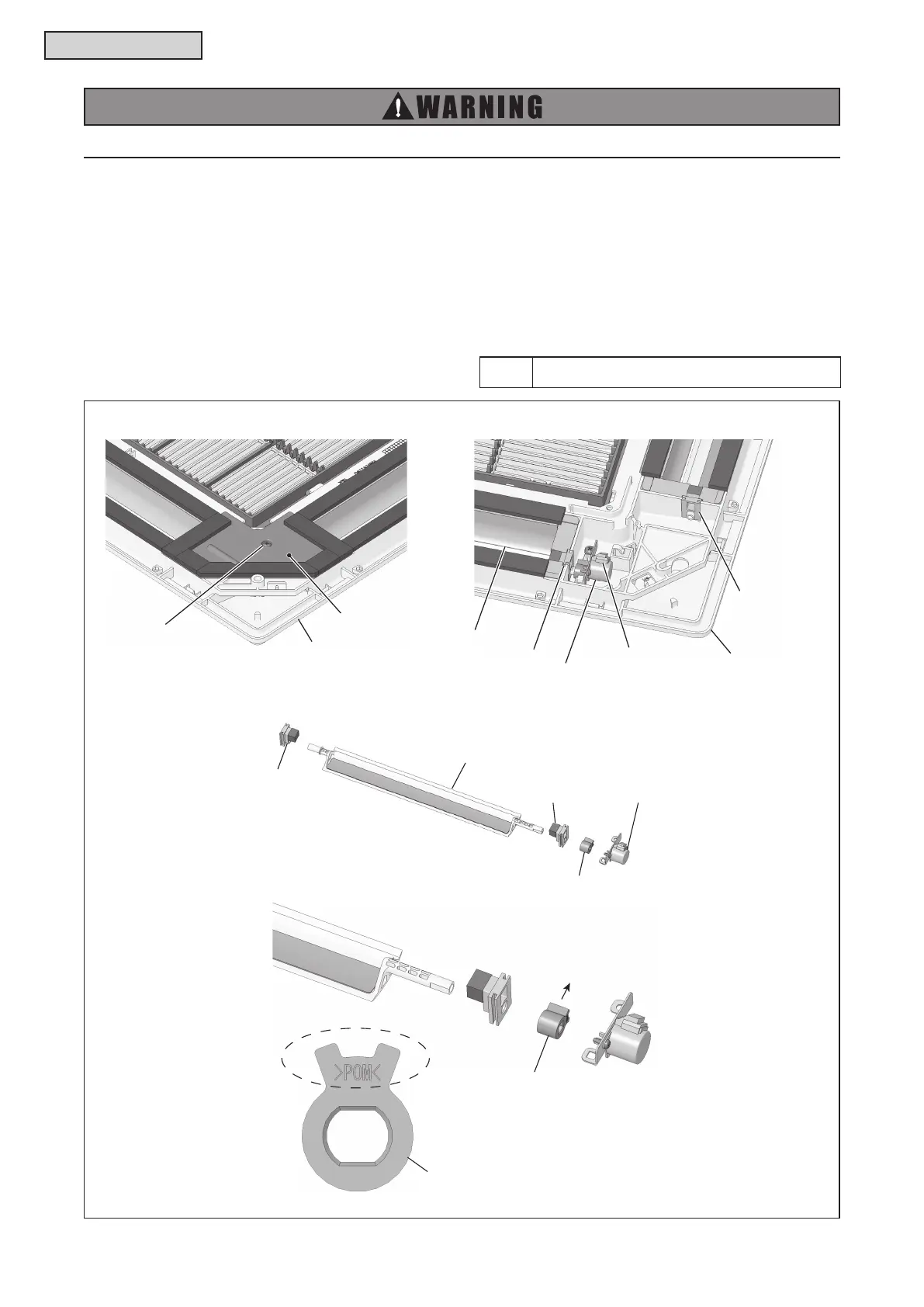

4.2.12 RemovingAutoLouverMotorsandLouver
(1) RemovethedecorativepanelaccordingtoSection4.2.3“RemovingOptionalDecorativePanel.”
(2) RemovethexingscrewforC-coverandremovetheC-cover.
(3) RemovethexingscrewforASMotorfromthedecorativepanel.Thenremovethelouver,louver
bearingandASmotor.
(4) RemovetheASmotor,stopperandbearingfromthelouver.
(5) DisconnecttheconnectorfortheASmotor.Pressthecatchtodisconnecttheconnectortoavoid
breakage.
C-Cover
Decorative Panel
Screw
Decorative Panel
Bearing
Bearing Connector
AS Motor
Louver
AS Moto
r
Stopper
Bearing
Bearing
Louver
Air Inlet Side
Pay attention to the
direction of the stopper.
Rib
Stopper
Tool PhillipsScrewdriver
