MAINTENANCE
SM-18003
4-5
TURN OFF all power source switches.
4.2.3 RemovingOptionalDecorativePanel
(1) Removetheautoswingmotorconnector(CN17)fromPCB.
(2) Removethecornerpocketcovers.

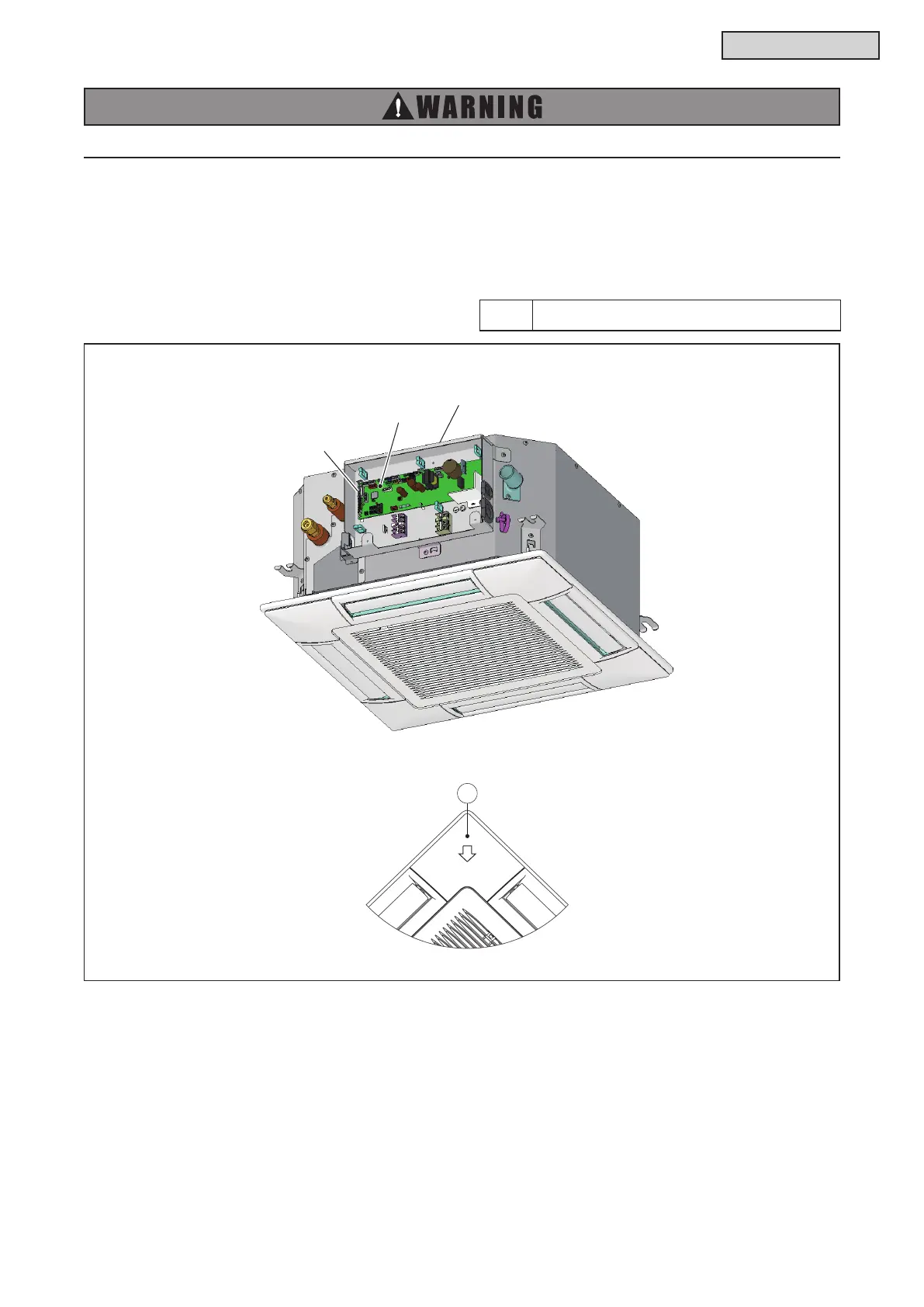

Thecornerpocketcoverscanberemovedpulling"A"parttowardthearrowdirectioninthegure
below.
CN17
PCB
Electrical Box
A
Tool PhillipsScrewdriver
