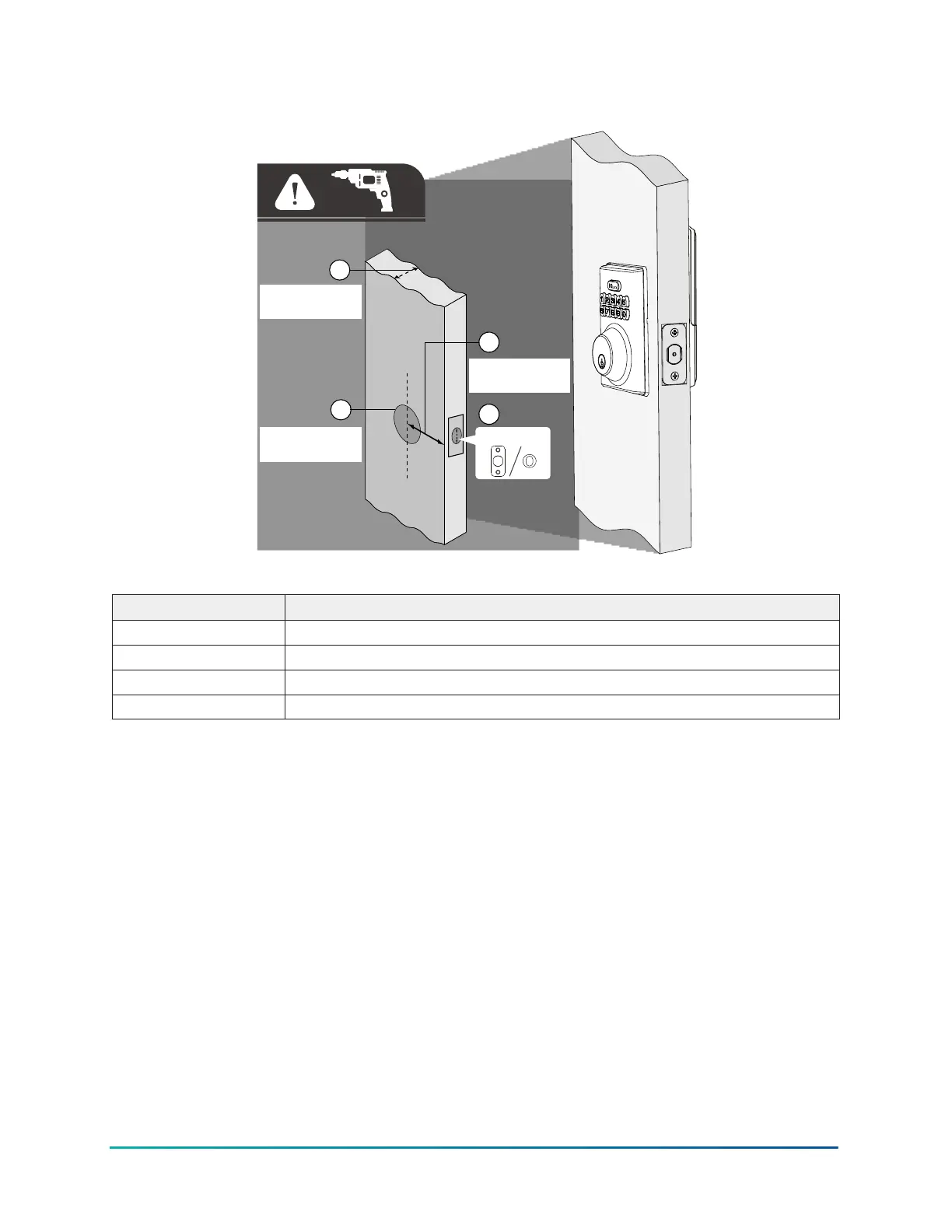

Figure 3: Prerequisite check list
1 in. (25.4 mm)
A
1 1/2 in. or 2 1/8 in.
(38 mm or 54mm)
1 3/8 in. and 2 1/4 in.
(35 mm to 58 mm)
2 3/8 in. or 2 3/4 in.
(60 mm or 70 mm)
C
B
D
Callout Component
A Door hole is 1 1/2 in. or 2 1/8 in. (38 mm or 54mm)
B Door thickness is between 1 3/8 in. and 2 1/4 in. (35 mm to 58 mm)
C Door hole backset is 2 3/8 in. or 2 3/4 in. (60 mm or 70 mm)
D Latch hole is 1 in. (25.4 mm) from top to bottom
9IQ Lock-PowerG Installation and User Guide D-309240
