Typical field wiring

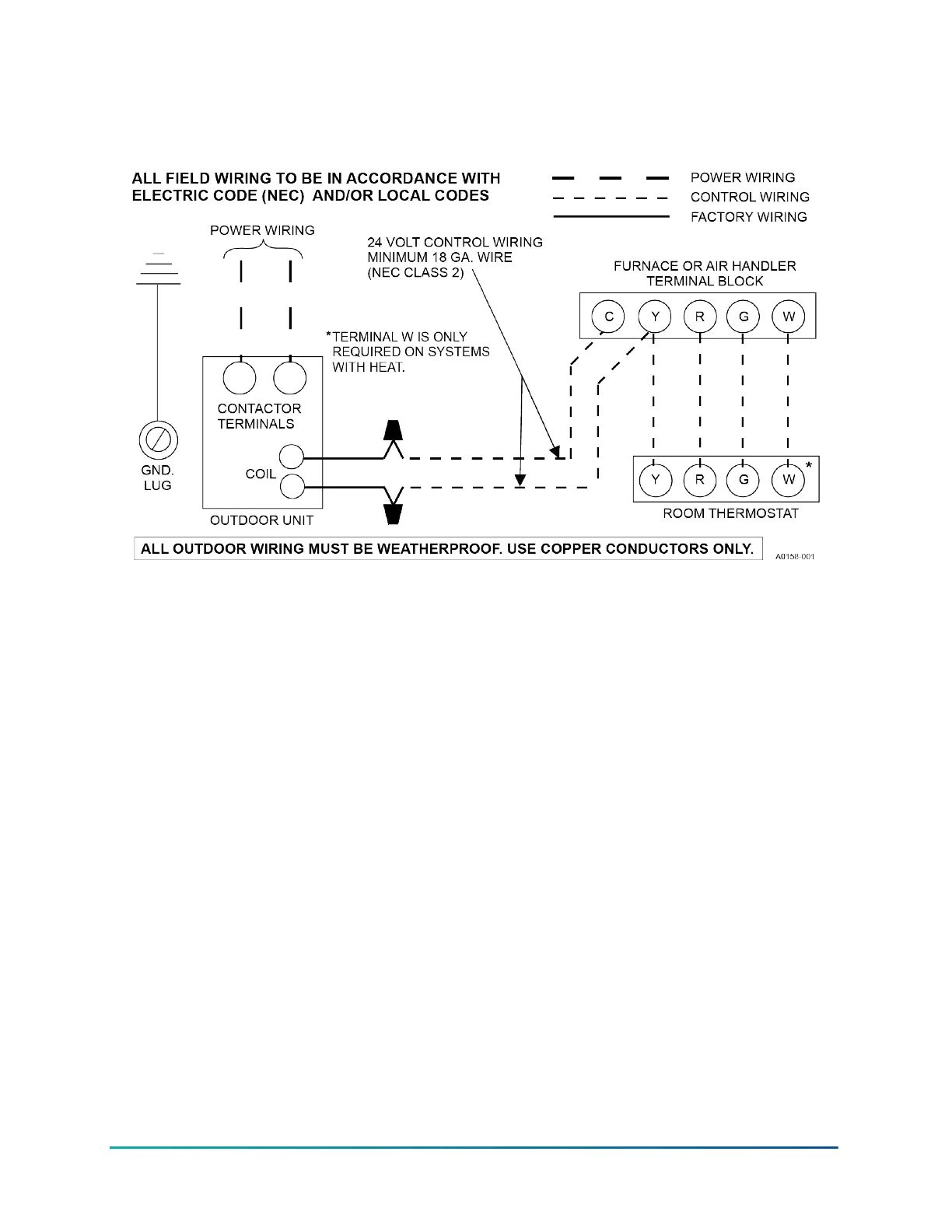

Figure 5: Typical field wiring

77Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase
