Johnson Controls VB09 - FIGURE 5 - Standard Factory Supplied NPSH Hose Kits and Risers; FIGURE 6 - Optional Field Supplied Risers with Factory Supplied NPSH Hose Kits and Shut-Off Valves

17
SECTION 1 - INSTALLATION
FORM 145.18-IOM1
ISSUE DATE: 8/30/2018
1
LD18126
1/2-INCH OR 3/4-INCH FLEXIBLE CONNECTOR HOSE
(24 INCHES LONG)
1/2-INCH OR 3/4-INCH NPSH THREADS
1/2-INCH OR 3/4-INCH MALE NPSH
1/2-INCH OR 3/4-INCH NPSH THREADS
1/2-INCH OR 3/4-INCH MALE NPSH BALL VALVE
GASKET
GASKET
NOTE
National Pipe Straight Hose (NPSH) connection
LD18126

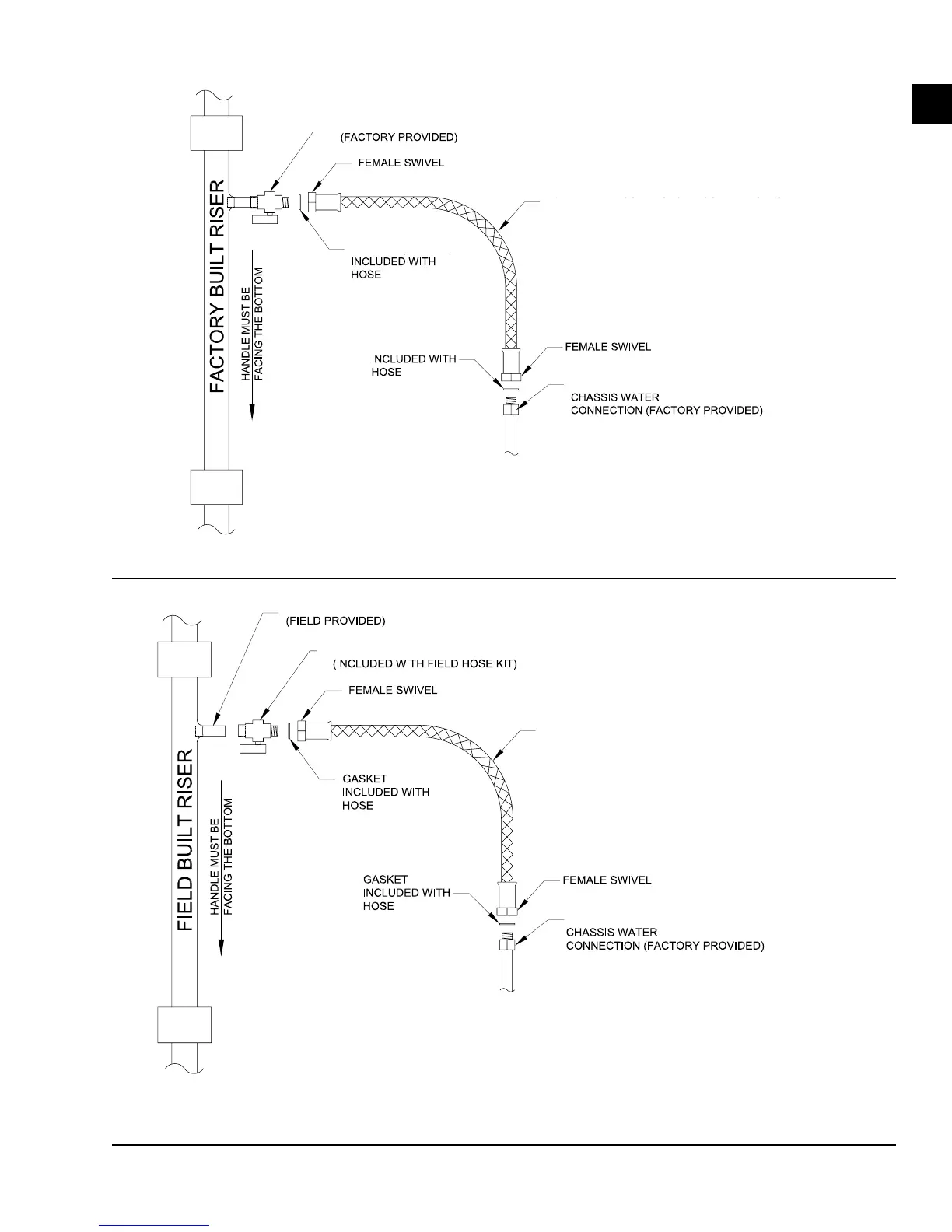

FIGURE 5 - STANDARD FACTORY SUPPLIED NPSH HOSE KITS AND RISERS
LD18127
1/2-INCH OR 3/4-INCH MALE NPSH
1/2-INCH OR 3/4-INCH NPSH THREADS
1/2-INCH OR 3/4-INCH FLEXIBLE CONNECTOR HOSE
(24 INCHES LONG)
1/2-INCH OR 3/4-INCH WATER PIPE STUB-OUT
1/2-INCH OR 3/4-INCH NPSH THREADS
1/2-INCH OR 3/4-INCH SWEAT TO MALE NPSH BALL VALVE
NOTE
National Pipe Straight Hose (NPSH) connection
LD18127
FIGURE 6 - OPTIONAL FIELD SUPPLIED RISERS WITH FACTORY SUPPLIED NPSH HOSE KITS AND SHUT-
OFF VALVES
