22
FORM 145.18-IOM1
ISSUE DATE: 8/30/2018
SECTION 1 - INSTALLATION
RA flange must not
contact door frame
1-inch RA flange
Cabinet
Closet Drywall
Acoustical
Panel Door
Frame
Floor
2.5 inches
3.75 inches
6 inches
LD27621

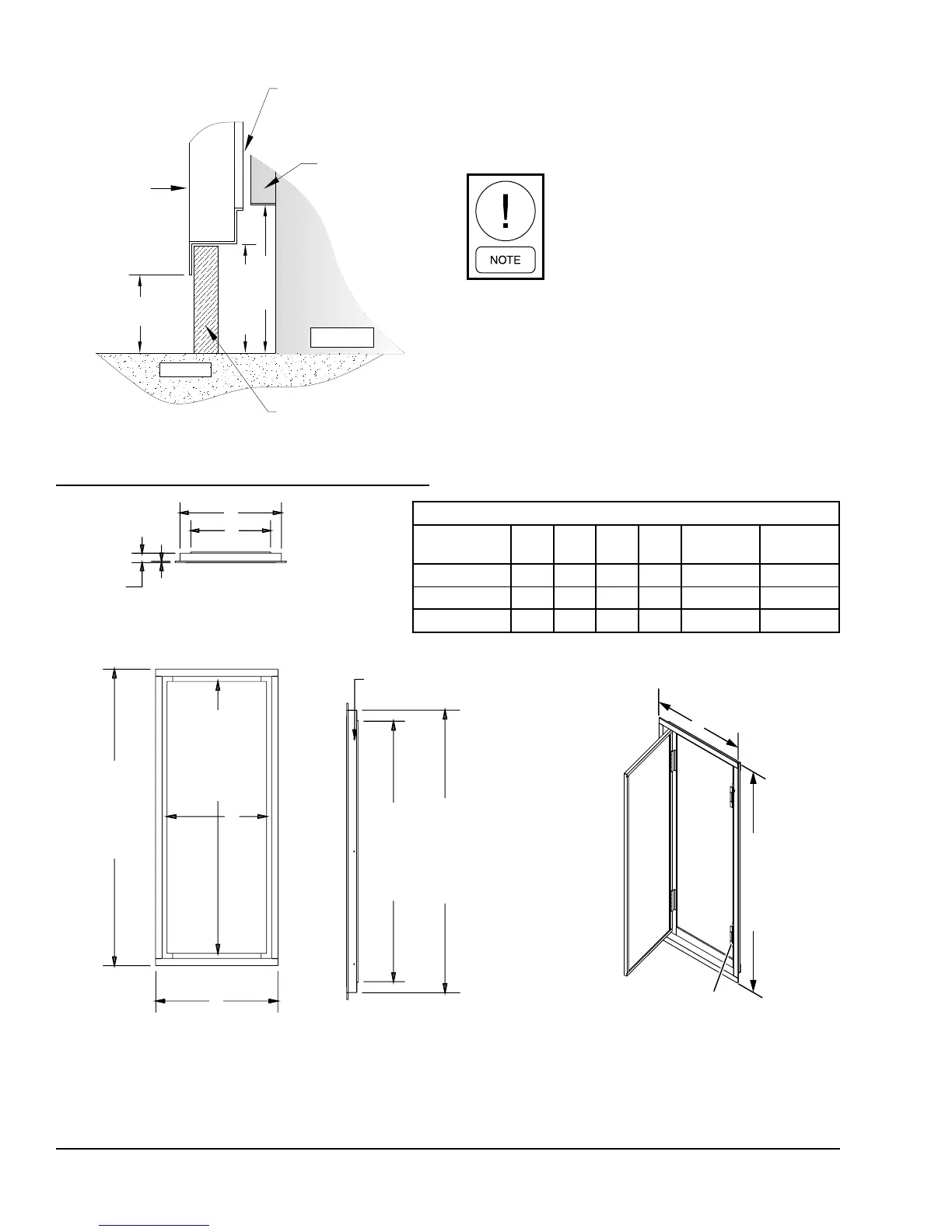

FIGURE 12 - RA PANEL CROSS SECTION
INSTALLATION AT FLOOR LEVEL
NOTES:
-Powder coated in ‘Appliance White’
-Inside panel lined with 1/2-inch acoustical insulation
-Hinged panel complete with magnetic latches
0.28
1.92
B
C
56.75
A
D
52.50
Mounting Holes x 6
54.50
(54 3/4" ROUGH-IN
WALL OPENING)
50.25
Magnetic
Catches x 2
1.92
inches
0.28 inches
B
C
Mounting Holes x 6
50.5 inches
54.75 inches
D
A
52.5 inches
Magnetic Catches x 2
(52.75-inch Rough-In Wall Opening)
48.25 inches
A
54.75 inches
ALL DIMENSIONS ARE IN INCHES
MODEL A B C D
ROUGH-IN
WIDTH
ROUGH-IN
HEIGHT
VSCS09–12 22.75 20.50 16.25 18.50 20.75 52.75
VSCS15–24 25.75 23.50 19.25 21.50 23.75 52.75
VSCS30–36 29.75 27.50 23.25 25.50 27.75 52.75
NOTES:
1. Acoustic panel is powder coated in appliance white
2. Acoustic panel can be installed on the right hand side or left hand side.
3. See Figure 11 on page 21 for additional RA panel and cabinet installation information.
LD19319C
FIGURE 13 - RA PANEL DIMENSIONS
Figure 12 on page 22 shows a cutaway view for a
standard cabinet with no stand. Add the stand height to
the cabinet to obtain the correct dimension of the RA
panel from floor.
For maximum return airow, the ush
mounted acoustic panel must be centered
vertically and horizontally over the RA
opening of the cabinet. SA duct collar
extensions may be required to prevent
short cycling.
