Mounting and Wiring VMA1400 Series Controllers Technical Bulletin
24
Connecting the N2 Bus
Note: A hardware connection between the VMA and the Network
Control Module (NCM) or N30 is required if the VMA is to
communicate with the Metasys Operator Workstation
(OWS).
To connect the N2 Bus:
1. Set the N2 address of the VMA per engineering drawings before
wiring the VMA (if not already done).
2. Connect the N2 Bus wires to the VMA, and continue in a daisy
chain to the next VMA. Repeat this process for each VMA.
To
Next
N2
Device
N2 REF
N2-
N2+
NCM200 Series
(TB1 or Communicator
Terminal Board)
HRD
GRD
SFT
GRD
N2+
N2-
SFT
GRD
REF
1
2
36
7
8
NCM300 Series
Port 1 - N2 Bus
or
REF N2- N2+
N2+
N2-
REF
SHLD
N2+
N2-
N2 REF
NCMCONN4

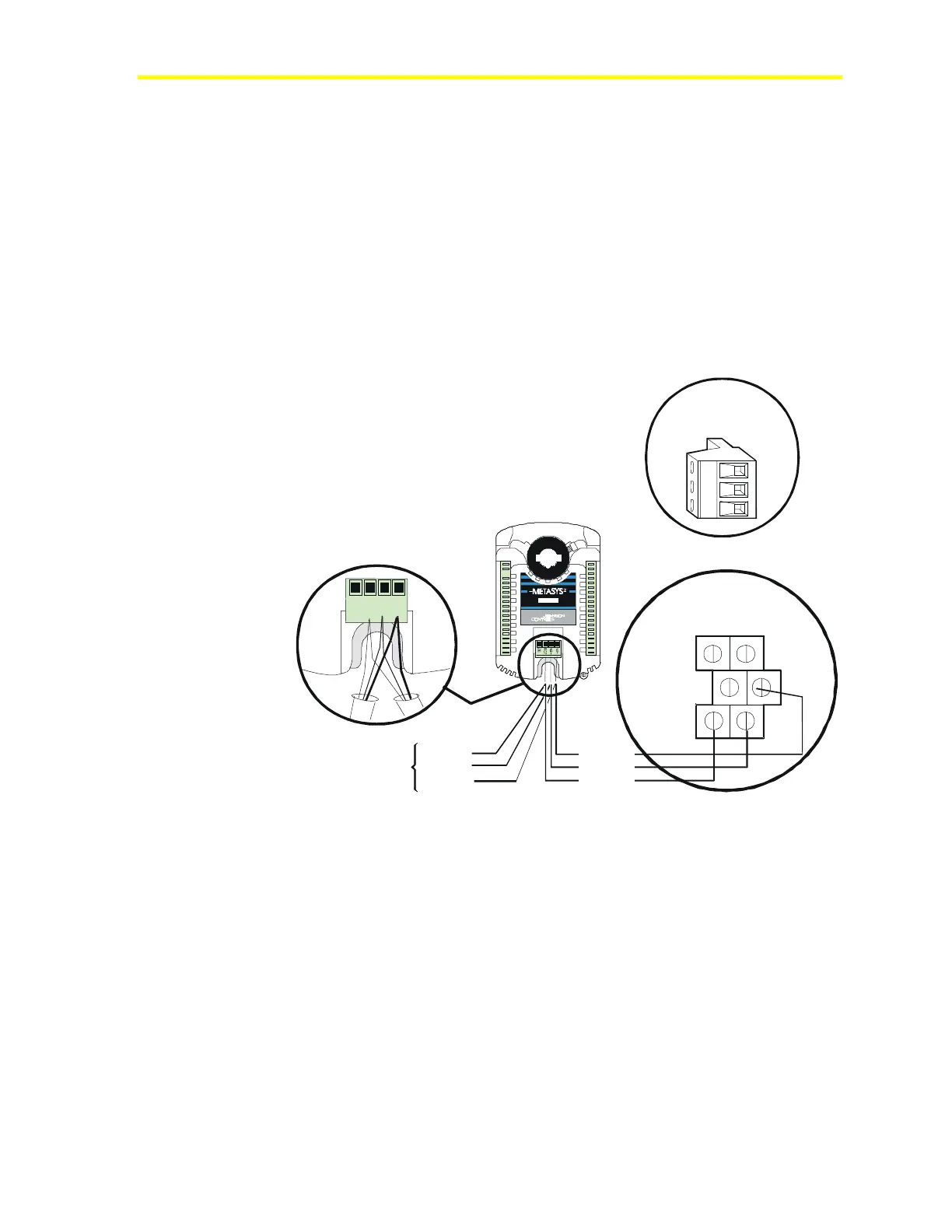

Figure 12: Connecting the VMA to an NCM
3. Apply power. Locate and observe the VMA LED. Refer to
Table 12 to interpret the LED indications.
