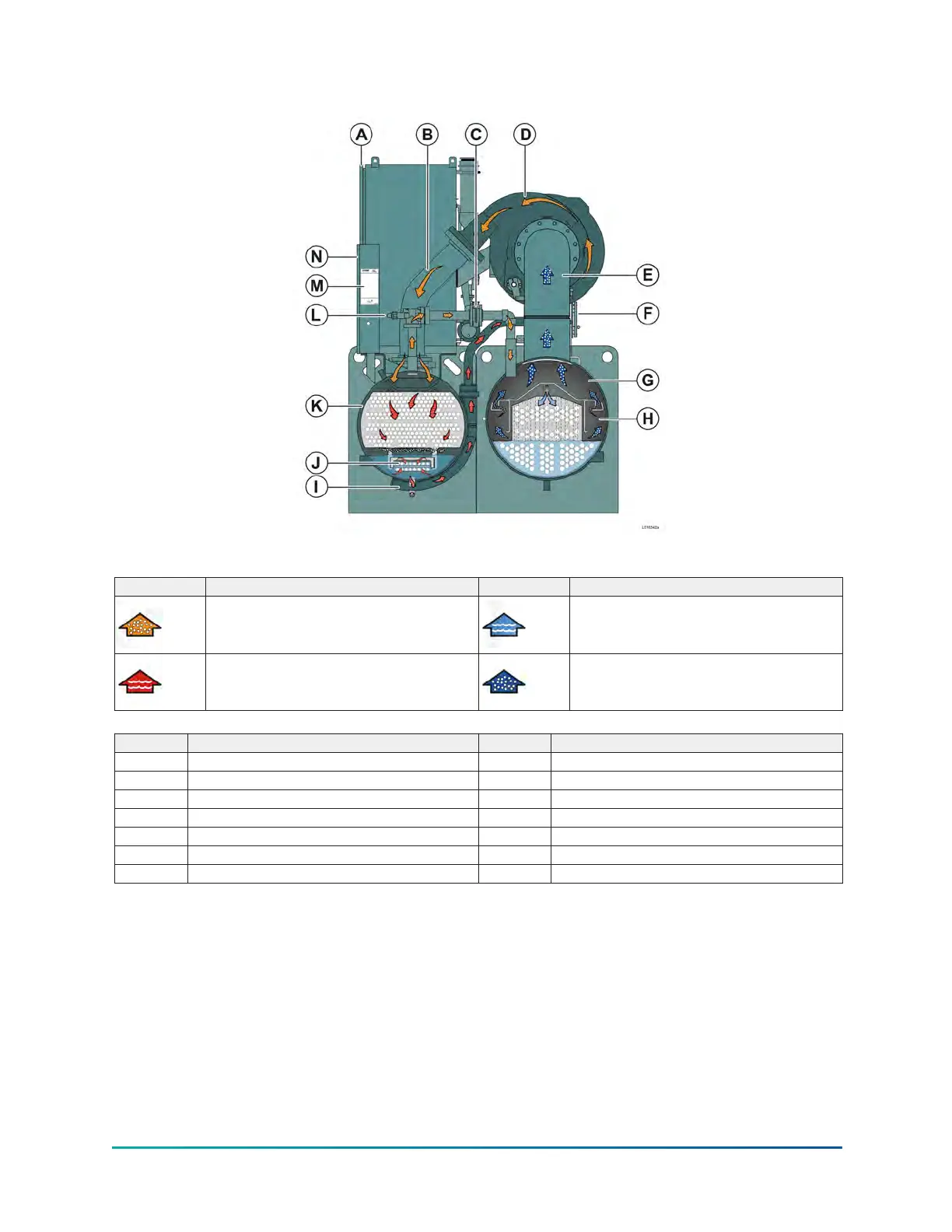

Figure 8: Refrigerant flow-through chiller
Table 6: Refrigerant states
Icon Description Icon Description
High pressure vapor Low pressure liquid refrigerant
High pressure liquid refrigerant Low pressure vapor
Callout Description Callout Description
A Variable speed drive H Suction baffle
B Discharge line I Liquid line
C Optional gas bypass valve J Sub-cooler
D Compressor K Condenser
E Suction line L Isolation valve
F Power panel M System data plate
G Evaporator N Control panel
