OptiView screens
Home screen

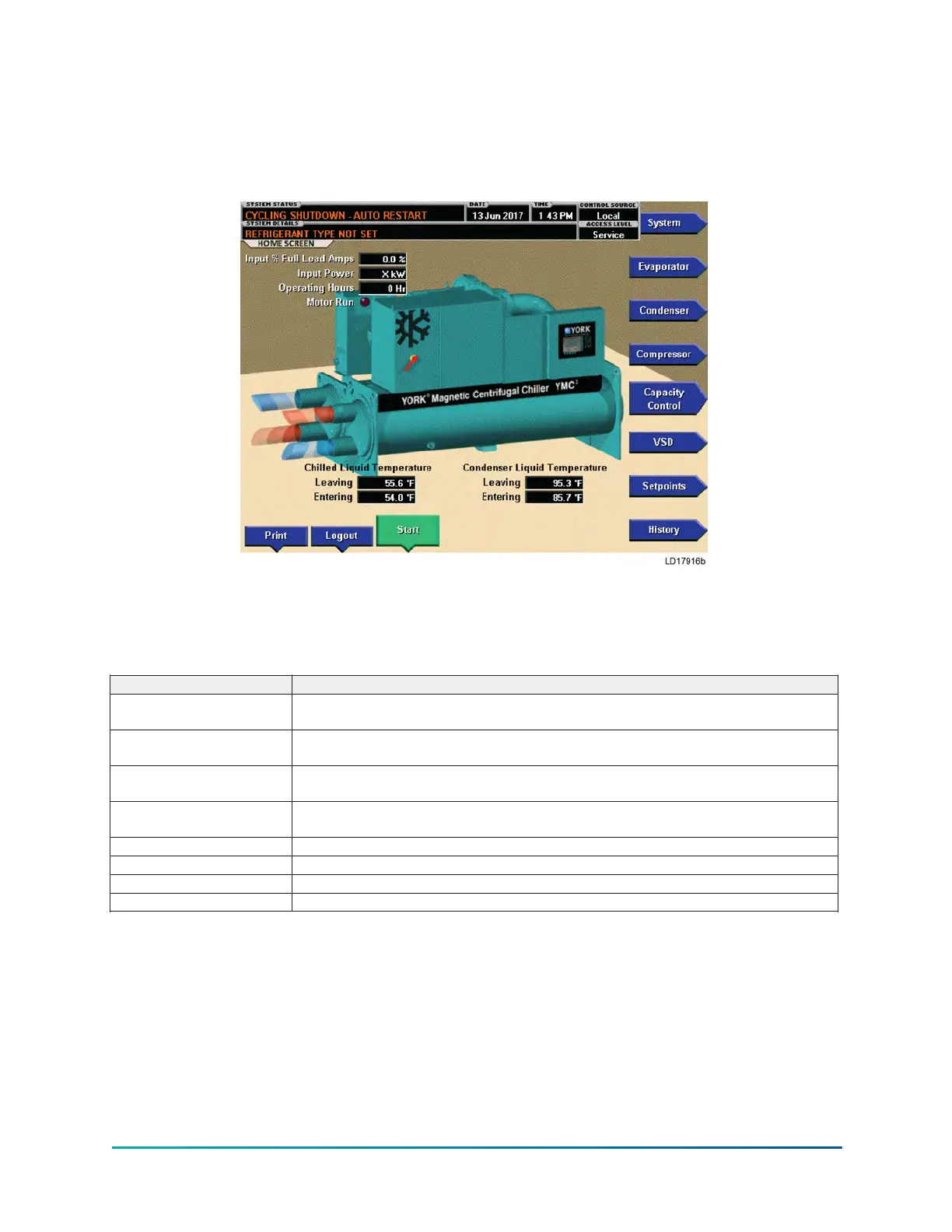

Figure 27: Home screen
When the chiller system is powered on, the default display shown in Figure 27 appears. The home
screen display depicts a visual representation of the chiller itself. Animation indicates the chilled
liquid flow and condenser cooling liquid flow when the flow switch inputs are satisfied.
Table 14: Display only fields
Field/LED name Description
Chilled Liquid Temperature -
Leaving
Displays the temperature of the liquid as it leaves the evaporator.
Chilled Liquid Temperature -
Entering
Displays the temperature of the liquid as it enters the evaporator.
Condenser Liquid
Temperature - Leaving
Displays the temperature of the liquid as it leaves the condenser.
Condenser Liquid
Temperature - Entering
Displays the temperature of the liquid as it enters the condenser.
Input % Full Load Amps This displays the percentage of full load amps used by the system.
Input Power (kW) This displays the total input power used by the system.
Operating Hours Displays the cumulative operating hours of the chiller.
Motor Run (LED) Is on when the digital output that gives the VSD a motor run command is on.
