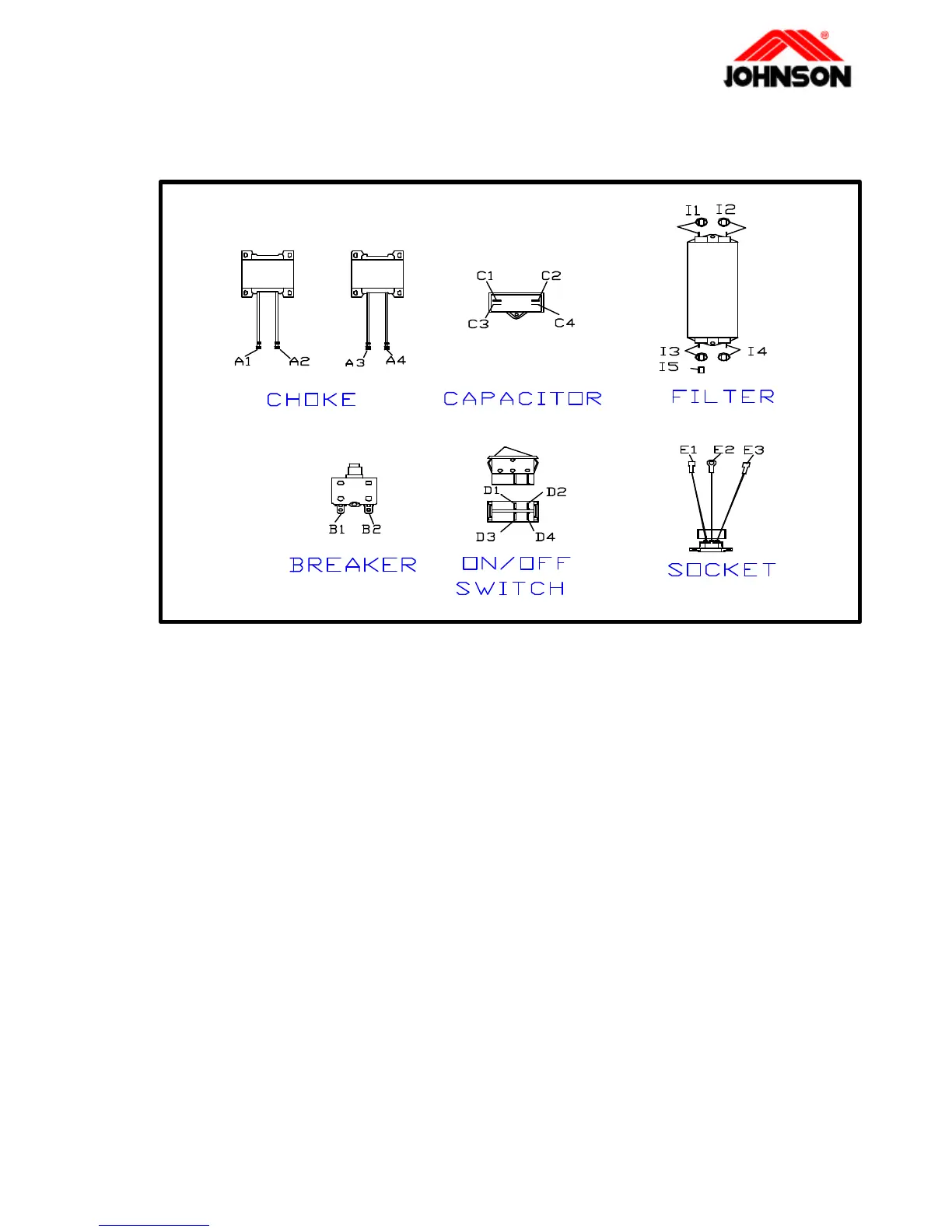

WIRING DIAGRAM (TERMINAL END, CE)
Ø E1-----B1
Ø E2-----Ground
Ø E3-----D2
Ø B2-----D4
Ø D1-----I3
Ø D3-----I4
Ø I5-----Ground
Ø I1-----A2
Ø I2-----A3
Ø A1-----C1
Ø A4-----C2
Ø C3-----AC1 of MCB
Ø C4-----AC2 of MCB
3-1 Revision: 1.0 Date: 2001-06-01
