CONSOLE CABLE REPLACEMENT (JET-7000 series)
Tools required:
ü Philips
screwdriver
ü T-handle key
(5mm).
Procedure:

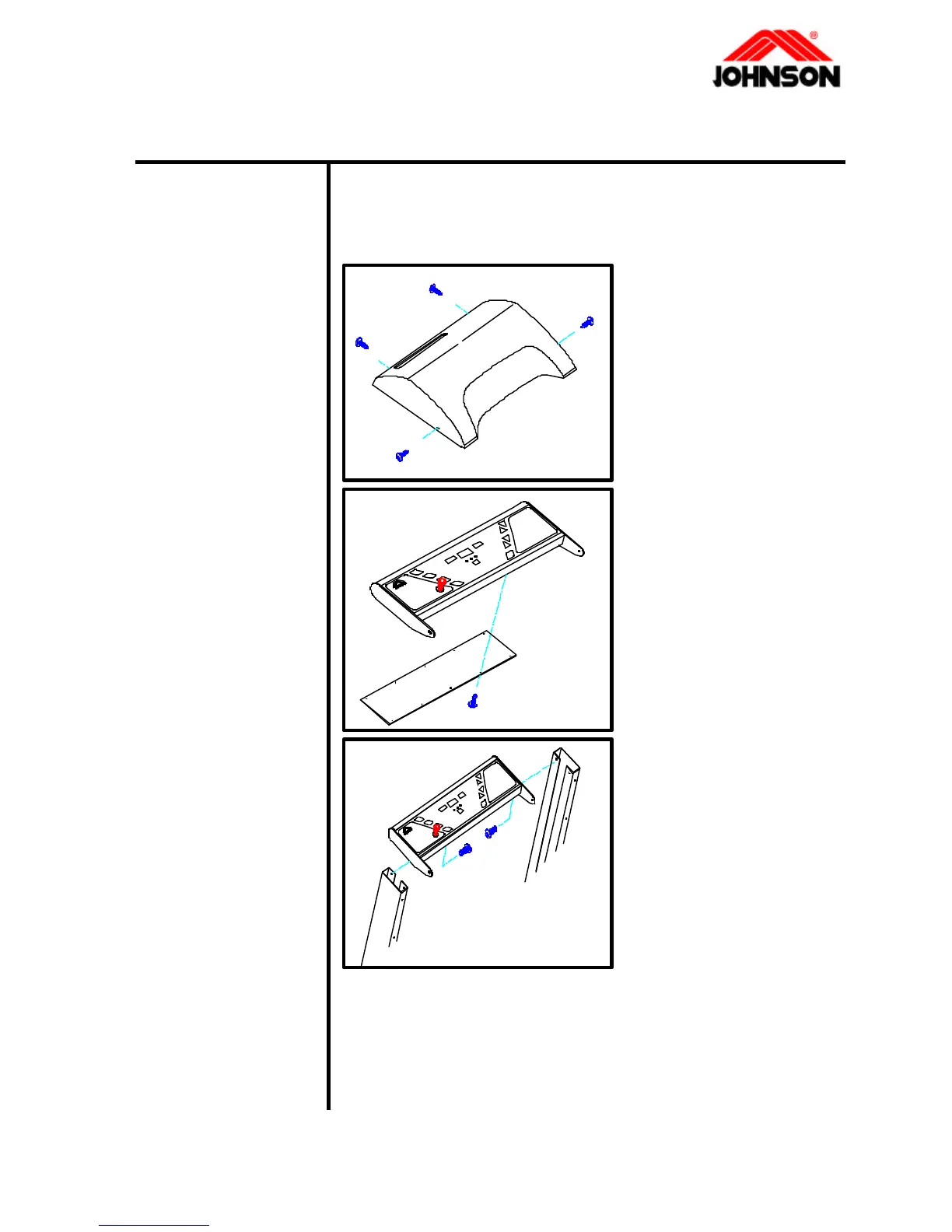

1. Remove screws from
the front cover by using
the screwdriver and
remove it.
2. Use the T-handle key
(5mm) to remove screws
of the left handle bar and
remove it.
3. With the screwdriver
remove the screws from
the console base plate.
4. Disconnect the console
cable from the PCB and
MCB.
5. Use the T-handle key
(5mm) to remove the
screws holding the console
base to the stanchion and
remove the console base.
