CONSOLE CABLE REPLACEMENT (JET-7000 series)
Tools required:
ü Philips
screwdriver
ü T-handle key
(5mm).
Procedure:

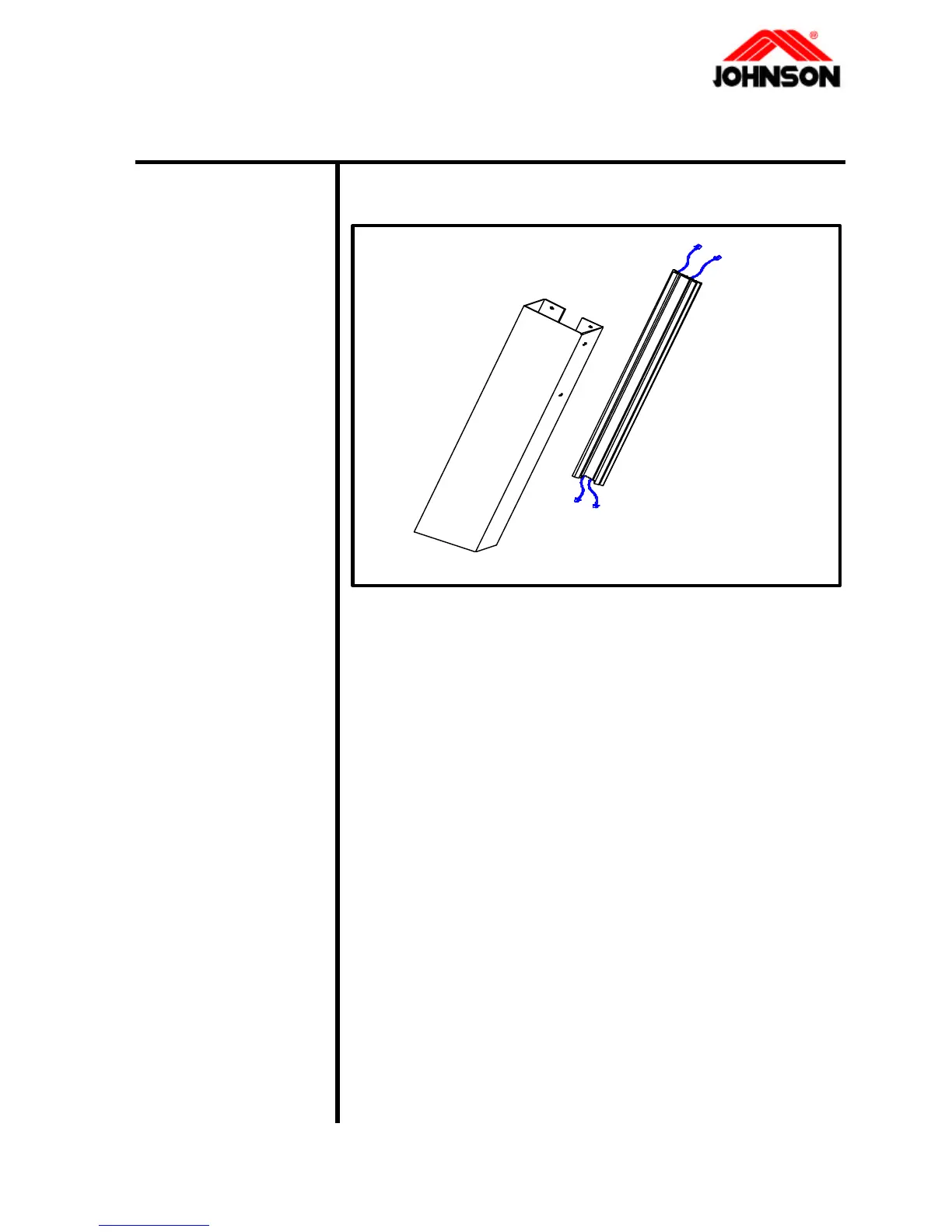

6. Remove the left stanchion protrusion out and pull out
both cables.
7. Install the new cable into the left stanchion protrusion.
8. Install the stanchion protrusion onto the stanchion.
9. Install the console base onto the stanchion and tighten it.
10. Install the console base plate and tighten the screws.
11. Install the left handle bar and tighten it.
12. Install the front cover and tighten the screws.
7-7 Revision: 1.0 Date: 2001-06-01
