PCB REPLACEMENT
Tools required:
ü Philips screwdriver
ü Nutdriver (6mm)
Procedure:

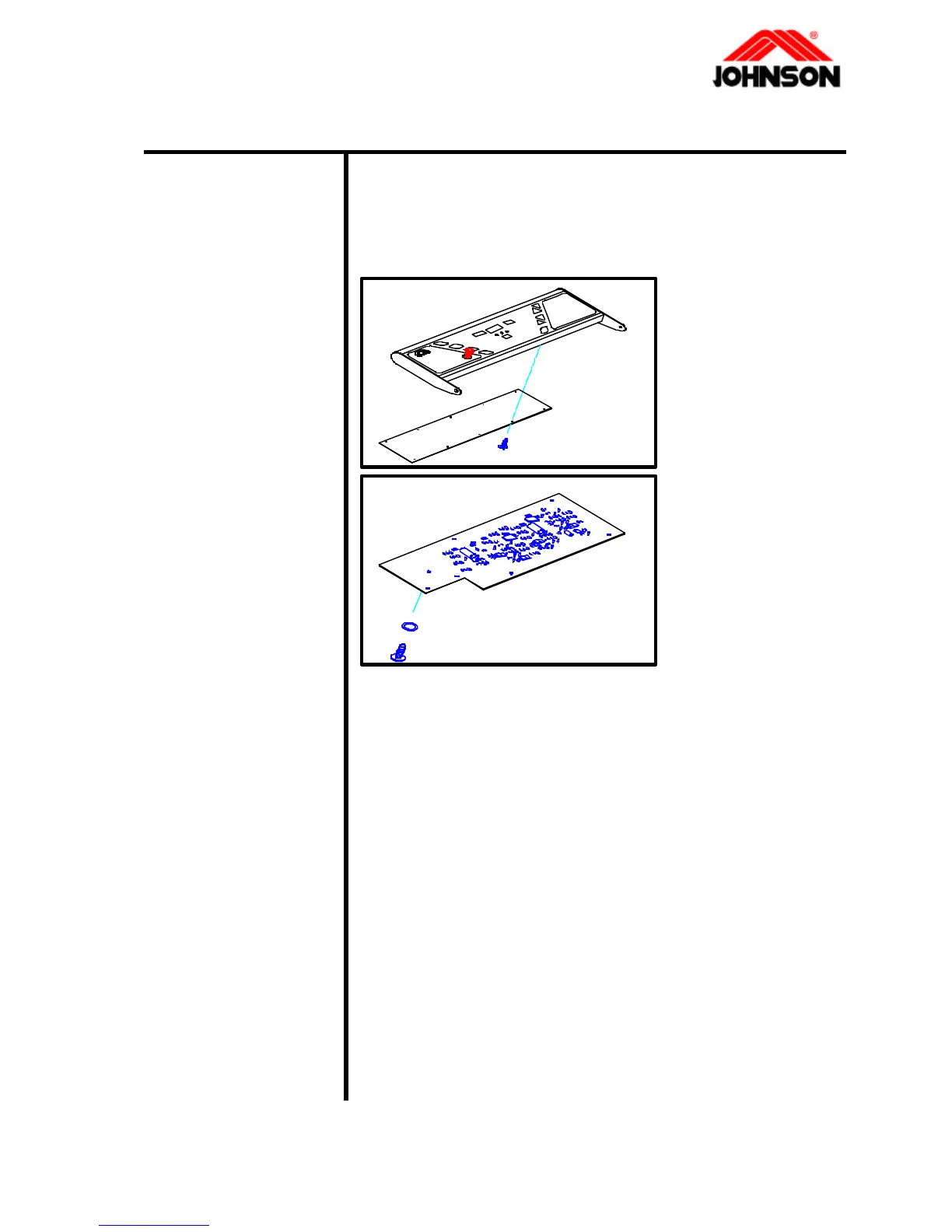

1. Use screwdriver to
loosen the screws of
console base plate.
2. Disconnect the
console cables from
the PCB.
3. Use the Nutdriver
(6mm) to loosen the
screws holding the
PCB to the base to
remove the PCB.
4. Replace with a new PCB and tighten the screws.
5. Reconnect the cables with PCB by referring to wiring
diagram.
6. Install the console base plate.
7. Turn on the power.
Enter the Engineering Mode.
(Refer to the console engineering mode guide for
details of calibration)
7-8 Revision: 1.0 Date: 2001-06-01
