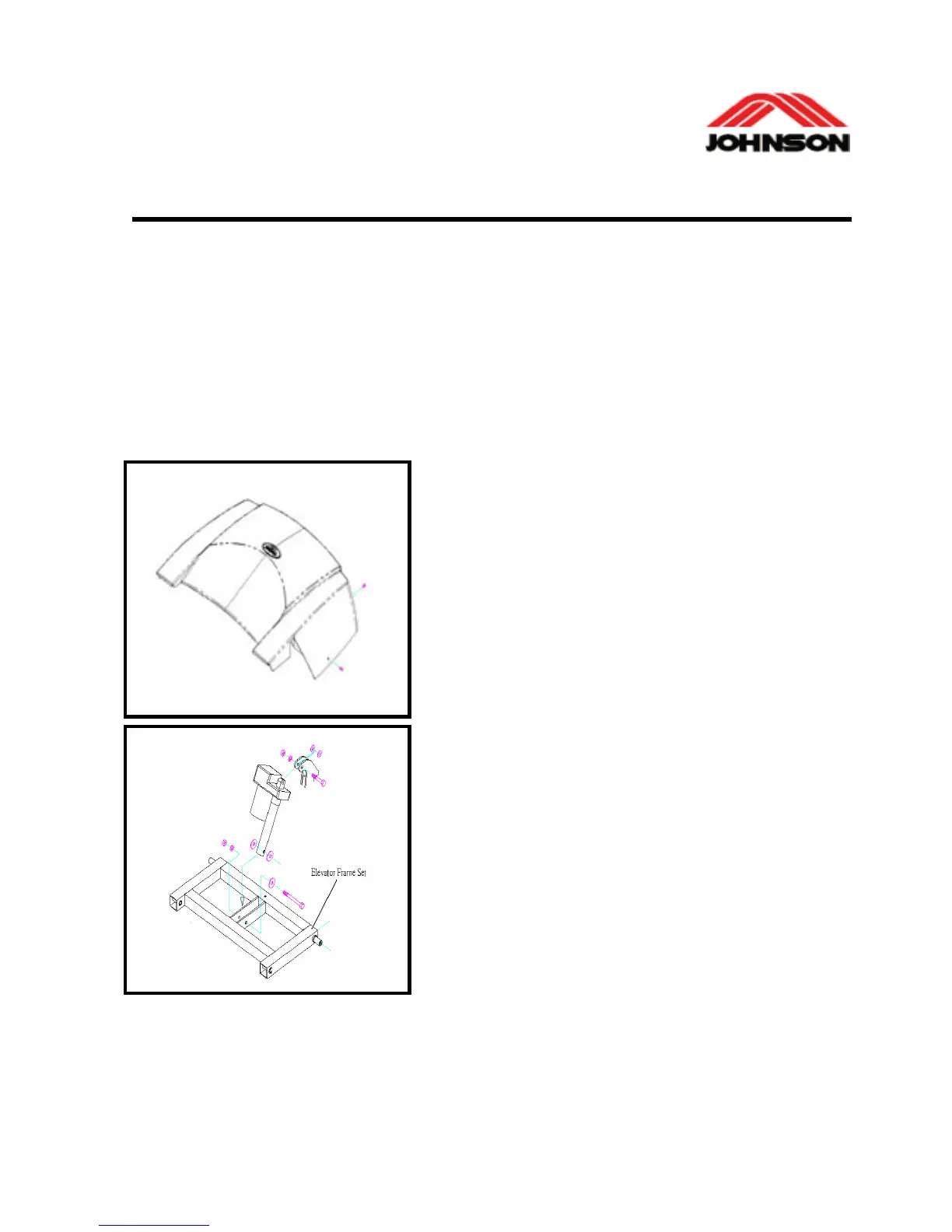

INCLINE MOTOR REPLACEMENT
Tools required:
9 Philips screwdriver
9 Wrench (14mm)
9 Wrench ( 17mm)
Procedure:
1. Remove screws of both top and bottom
motor covers by using a screwdriver
2. Disconnect cables from the connectors of the
incline motor and MCB and also disconnect
the ground wire.
3. Fold up the treadmill and then loose a nut
and a bolt on the top fixed plate by using the
wrenches (14, 17).
4. Replace the incline motor with a new one.
5. Tighten a nut and a bolt on the incline motor
at first. Then fixed another bolt on the
Elevator Frame Set.
6. Reconnect cables and the grounding wire to
the connectors and the frame.
7. Remove the support under the frame.
8. Turn on the power and enter the Engineering
Mode to check if the extreme inclines are
within the correct range.
9. Install motor covers and secure the
screws.
