Jonsered CS 2240 Workshop Manual

English – 13

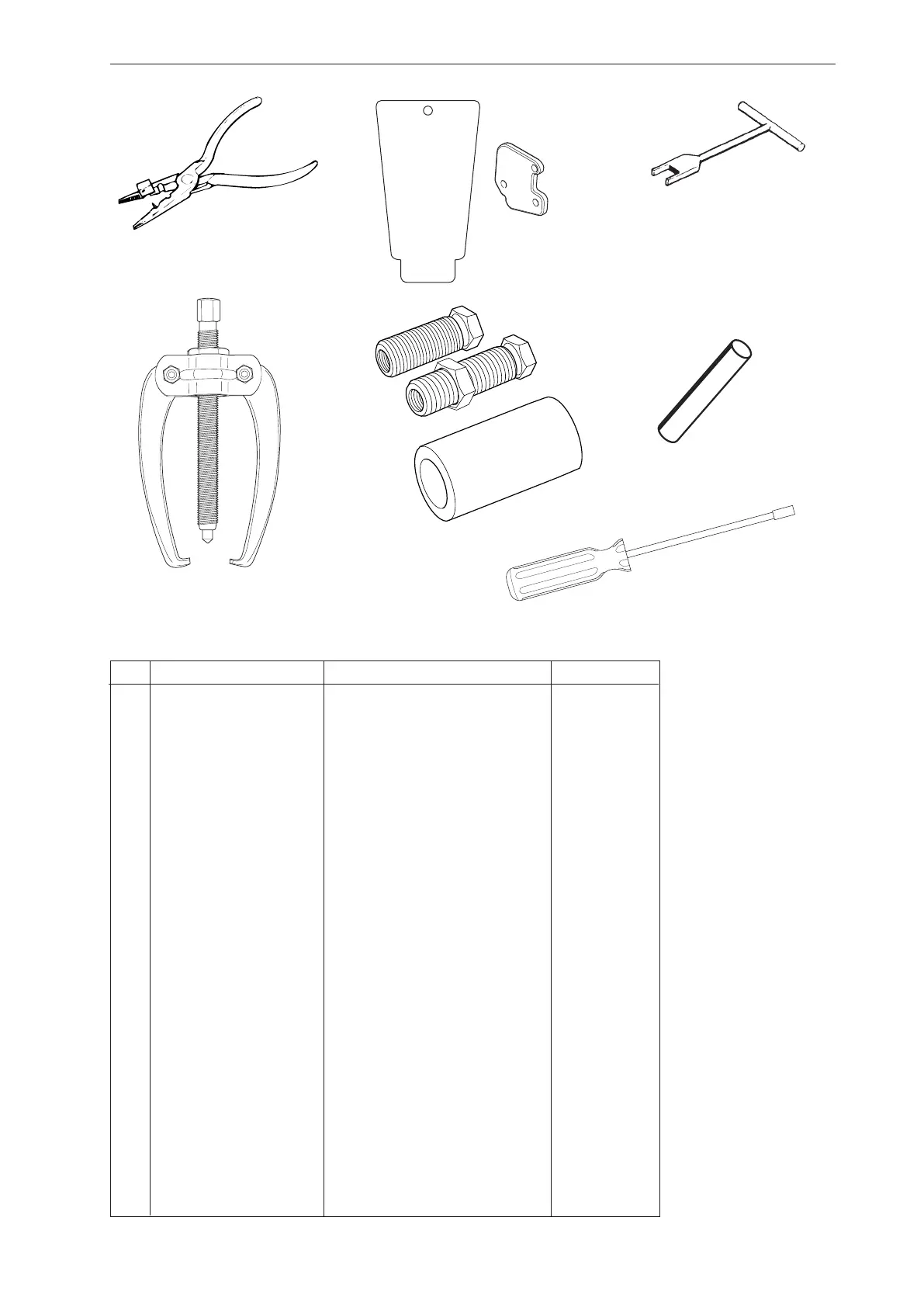

Special tools
12 13a
14
15
13b
16a
16c
16b
17
18
Item Description Used for Order no.
1 Clutch tool Centrifugal clutch 502 54 16-03
2 Piston stop Locking the crankshaft 504 91 06-05
3 Fuel lter hook Withdrawing the fuel lter 502 50 83-01
4 Allen key, 4mm For M5 bolts 502 50 87-01
5 Allen key, 4mm For M5 bolts 502 50 18-01
5 Allen key, 5mm For M6 bolts 502 50 64-01
6 Pressure tester Pressure testing cylinder 503 84 40-02
7 Feeler gauge Adjusting ignition module 502 51 34-02
8 Assembly xture Assembling chain saw 502 51 02-01
9 Pressure gauge Pressurisation during testing 531 03 06-23
10 Test spark plug Checking the ignition module 501 97 64-01
11 Rev counter Adjusting carburettor 502 71 14-01
12 Assembly pliers Fitting spark plug guard 502 50 06-01
13a Cover plate, exhaust Sealing the exhaust port 502 54 11-02
13b Cover plates, inlet Sealing the intake manifold 504 63 93-01
14 Assembly tool Assembling spring, chain brake 502 50 67-01
15 Puller Pulling bearing of crankshaft 504 90 90-01
16a Sleeve Fitting crankshaft 502 50 30-22
16b Shaft extension Flywheel side 502 50 30-22
16c Shaft extension Cluch side 502 50 30-22
17 Punch Dismantling the ywheel 502 51 94-01
18 Adjustment screwdriver Adjustment of the carburettor 530 03 55-60

Jonsered CS 2240 Specifications

General

Engine Displacement	40.9 cm³
Power Output	1.8 kW
Weight (excluding cutting equipment)	4.4 kg
Chain Pitch	3/8"
Fuel Tank Volume	0.37 liters
Oil Tank Volume	0.25 liters
