Jonsered CS 2240 Workshop Manual

English – 25
Repair instructions
WARNING!
If the recoil spring is still under
tension when the pulley is re-
moved it can fly out and cause
injury. Wear eye protection.

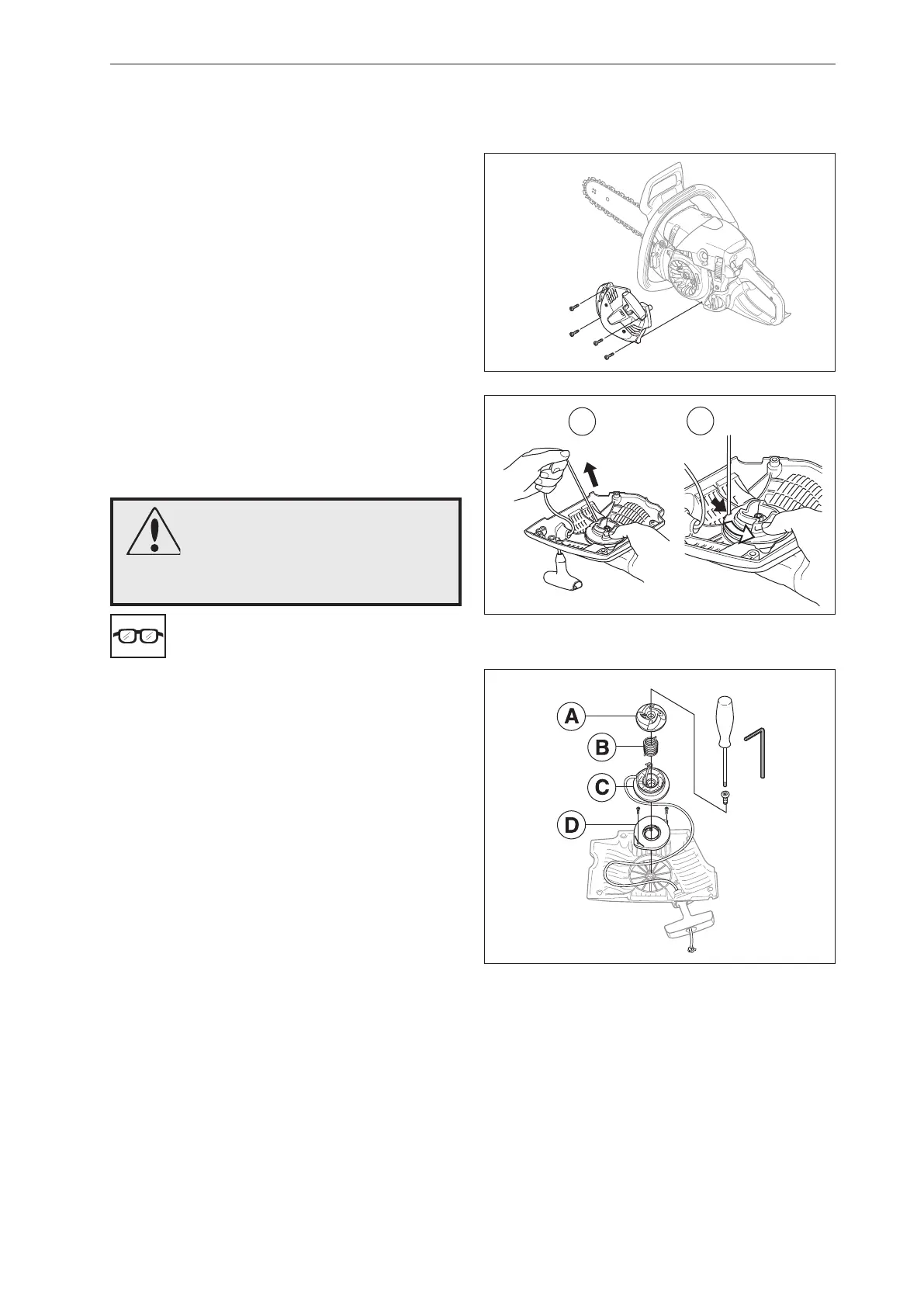

7.1 Starter assembly – removal
1
Undo the four bolts that fasten the starter assembly
to the crankcase and lift off the starter assembly.
(see gure 1)
3
Remove the bolt from the centre of the pulley and
lift off the pulley. (see gure 3)
Cleaning and inspection
Clean the parts and check the following:
• The starter cord.
• That the pawls on the ywheel are undama-
ged, i.e. that they spring back towards the
centre and move freely.
• Lubricate the return spring with light oil.
7 Repair instructions
1
2
2
Pull out about 30 cm of the cord and fasten it in the
notch in the pulley rim. Release the tension in the
return spring by letting the pulley wind backwards
slowly. (see gure 2)
Fig 1
Fig 2
Fig 3

Jonsered CS 2240 Specifications

General

Engine Displacement	40.9 cm³
Power Output	1.8 kW
Weight (excluding cutting equipment)	4.4 kg
Chain Pitch	3/8"
Fuel Tank Volume	0.37 liters
Oil Tank Volume	0.25 liters
