Jonsered CS 2240 Workshop Manual

32 – English
Repair instructions
7.12 Assembling the oil pump and screen
1
Fit the chain guide plate with tightening torque
1–1.5 Nm.
Fit the drive gear, needle bearing, clutch drum and
the clutch (min. 20 Nm).
Fit the chain, bar and clutch cover.
WARNING!
Poor chain lubrication can result
in failure of the chain, which could
cause serious or fatal injury.

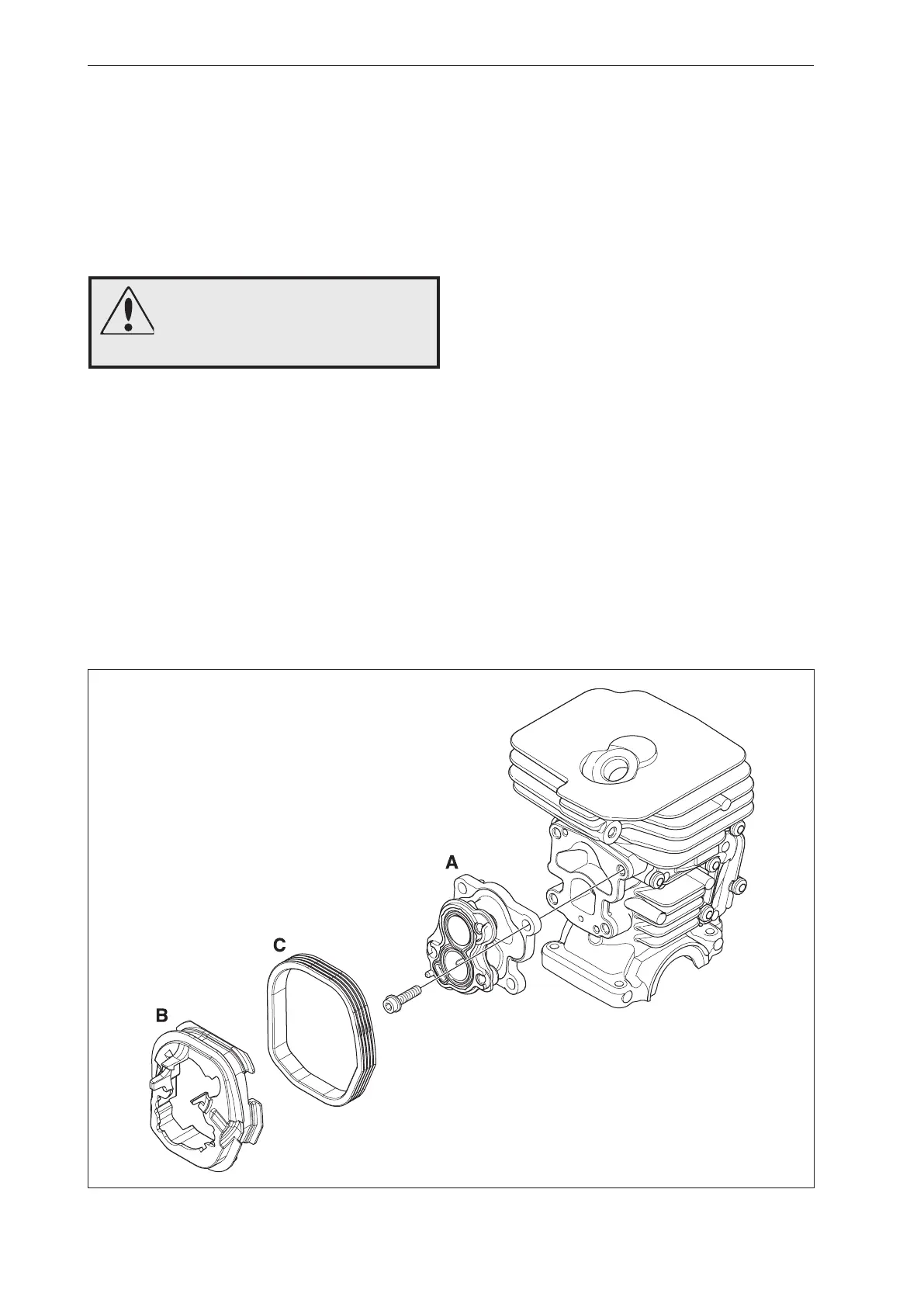

7.13 Air intake system – removal
The air intake system comprises:
• intake manifold (A)
• plastic partition wall (B)
• rubber partition wall (C)
(see gure 21)
1
Now loosen the screws using tool 502 50 87-01..
7.14 Assembling the intake system
1
Fit the intake manifold (A) and the partition walls
(B and C) on the cylinder using tool 502 50 87-01
(see gure 21).
Cleaning and inspection
Clean and check all parts carefully. Parts must be
replaced if cracked or show signs of other defects.
Always use original spare parts.
Fig 21

Jonsered CS 2240 Specifications

General

Engine Displacement	40.9 cm³
Power Output	1.8 kW
Weight (excluding cutting equipment)	4.4 kg
Chain Pitch	3/8"
Fuel Tank Volume	0.37 liters
Oil Tank Volume	0.25 liters
