Jonsered CS 2240 Workshop Manual

44 – English
1
First remove the old fuel lter from the tank unit
using special tool 502 50 83-01.
2
Pull the fuel hose (B) out of the tank unit and pull
off the lter.
3
Fit the new fuel lter (A) and feed the fuel hose
back into position.
7.20 Replacing the fuel hose/
return hose
The fuel hose is moulded and can only be removed
from outside of the fuel tank.
Use suitable pliers with a plain cutting face and
loosen the hose (B) (see gure 45) from the fuel
tank. Align the cut-out against the plastic pin when
assembling. Replace the return hose when required.
7.21 Replacing the air-purge
Dismantling
1. Dismantle the cylinder cover and the air lter.
2. Loosen the suction hose (C) and return hose
from the fuel pump (see gure 31).
3. Unsnap the fuel pump from the lter holder.
Assembling
1. Fit the return hose on the fuel pump.
2. Snap the purge into the lter holder (see gure
51).
4. Assemble the air lter and cylinder cover.
NOTE!
Do not use knurled pliers to disconnect or
reconnect the fuel hose. This could dam-
age the hose and lead to leakage or frac-
ture.
Repair instructions
7.19 Replacing the fuel filter

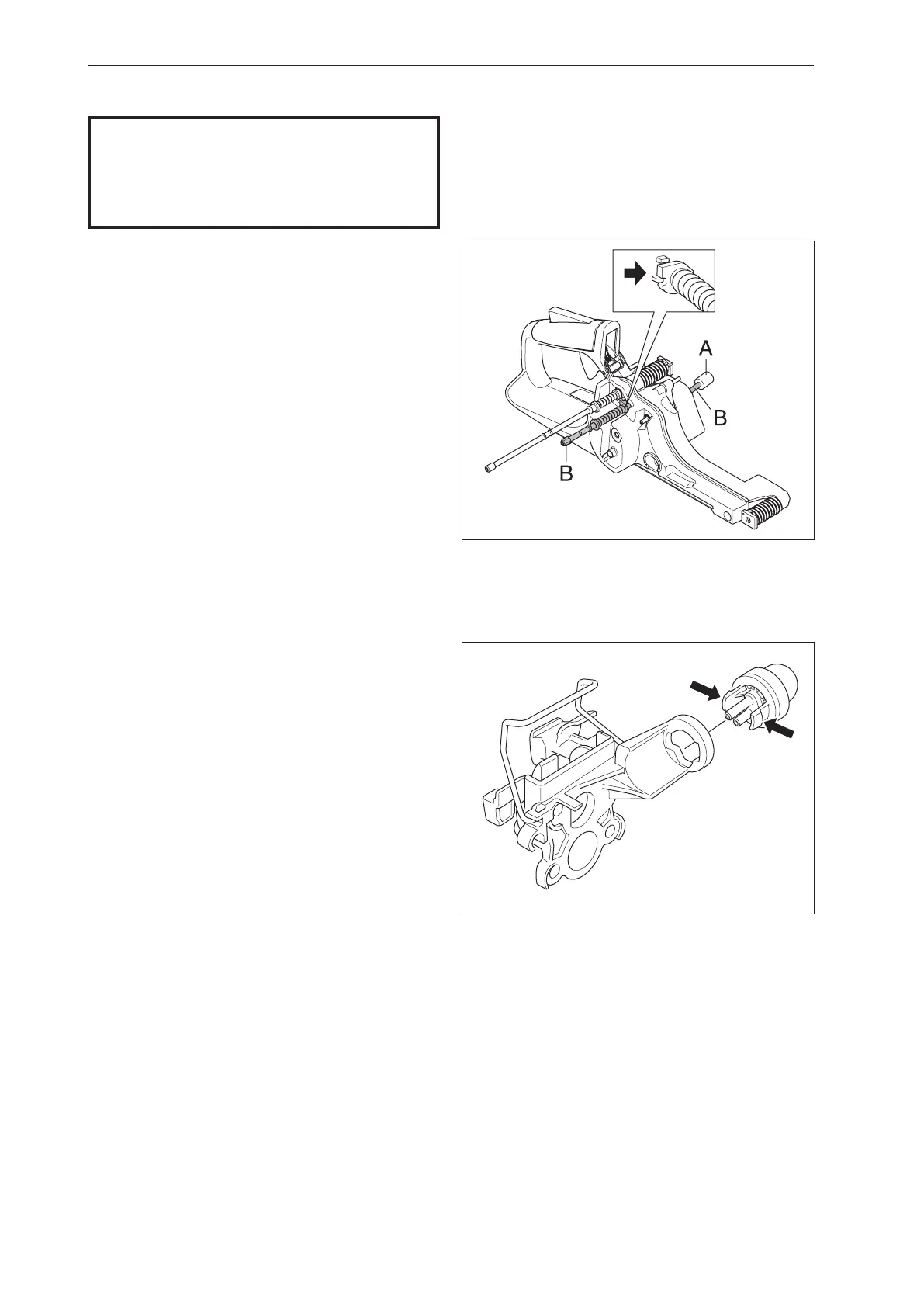

Fig 51
Fig 52

Jonsered CS 2240 Specifications

General

Engine Displacement	40.9 cm³
Power Output	1.8 kW
Weight (excluding cutting equipment)	4.4 kg
Chain Pitch	3/8"
Fuel Tank Volume	0.37 liters
Oil Tank Volume	0.25 liters
