34 – English
Repair instructions
Function

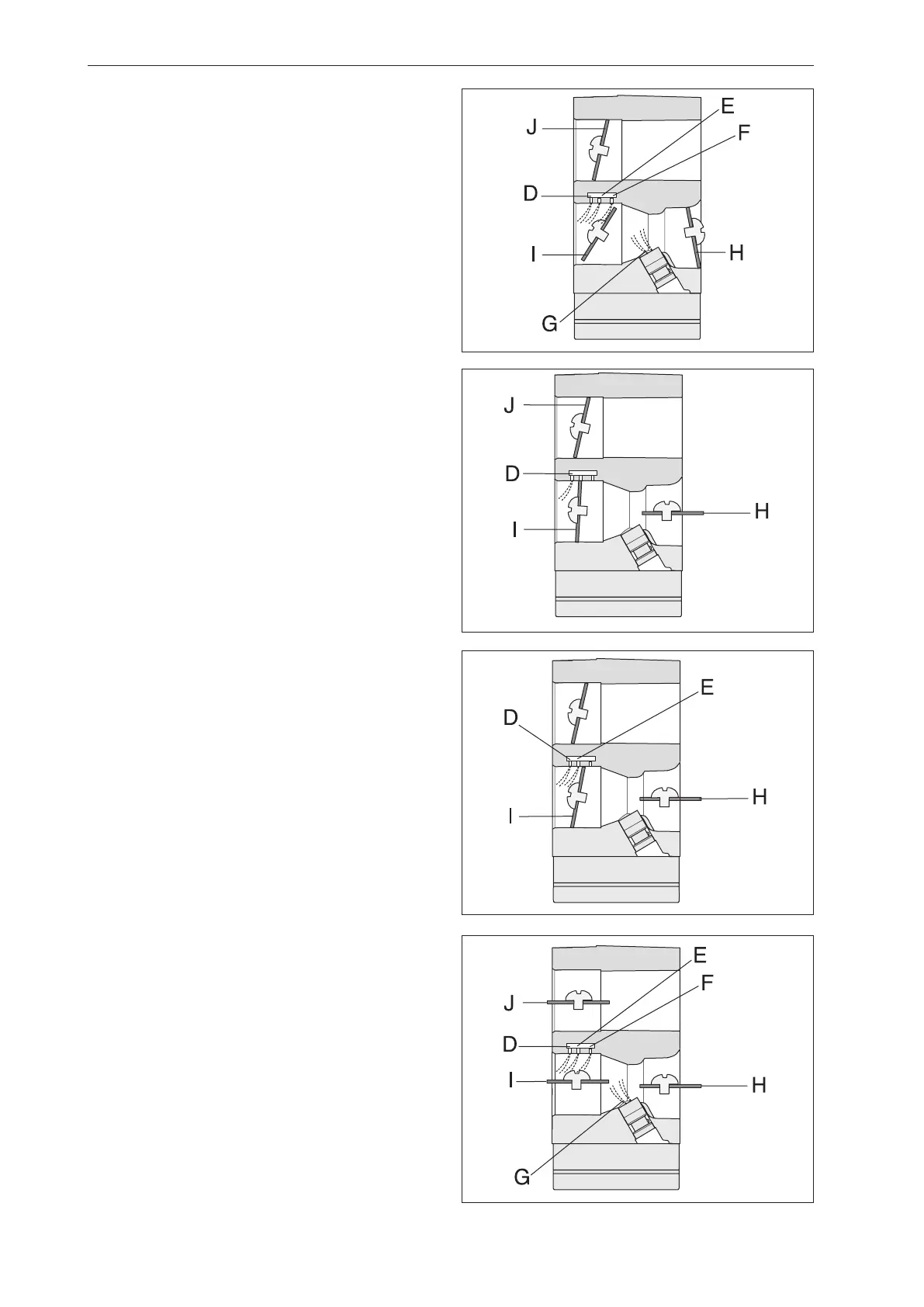

The carburettor operates differently in the following
modes:
Cold start mode
Idling mode
Part throttle mode
Full throttle mode
In the cold start mode (see gure) the choke valve
(H) is fully closed. This increases the vacuum in
the carburettor so that fuel is sucked more easily
from all the diffuser jets (D, E and F). The throttle
valve (I) is partly open. Extra air inlet (J) is closed
(see gure 25).
In the idling mode (see gure) the throttle valve (I
and J) is closed and the choke valve (H) is open.
Air is sucked in through an aperture in the throttle
valve and a small amount of fuel is supplied th-
rough the diffuser jet (D) (see gure 26).
In the part throttle mode (see gure below) the th-
rottle valve (I) is partially open and the choke valve
(H) is open. Fuel is supplied through the diffuser
jets (D and E). The throttle valve (J) starts to open
(see gure 27).
In full throttle mode (se gure below) all valves
are open and fuel is supplied through all diffuser
jets (D, E, F and G). Extra air inlet (J) is also fully
opened (see gure 28).
Fig 25
Fig 26
Fig 27
Fig 28
