6.10 Throttle lock, throttle trigger and
return spring – refitting
1
Lubricate all pins and mating surfaces with a light
oil.
2

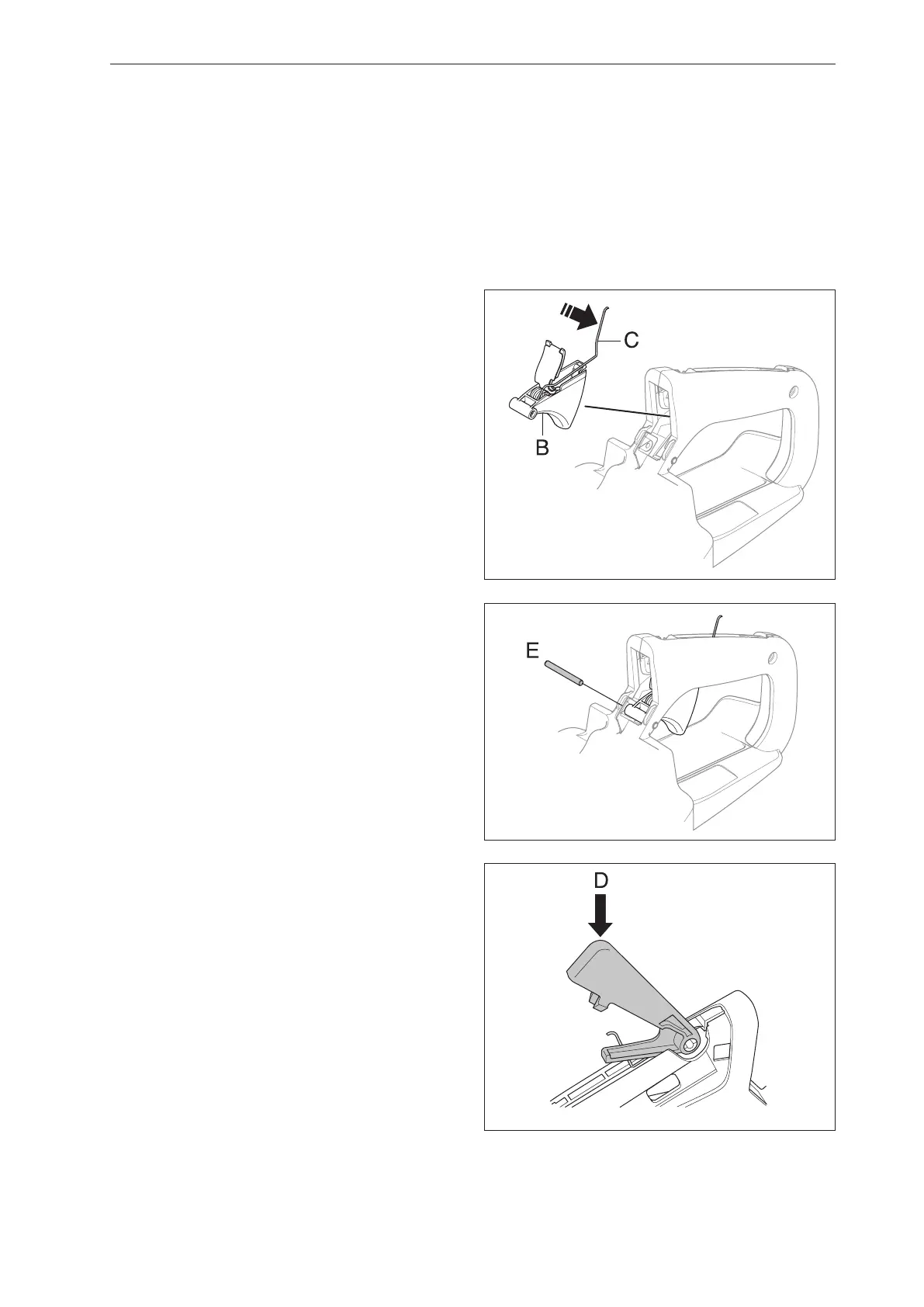

Fit the throttle control (B) and spring (C) (see
gure 22).
3
Hold the spring and insert the throttle lock into the
cut-out in the handle (see gure 23).
4
Fit the throttle control pin (E) with the help of a
punch. (see gure 23)
5
Fit the throttle lock (D) by pressing it onto the shaft
in the handle (see gure 24).
6
Assemble the handle insert using a screw, when
the throttle control, lever, throttle cable and throttle
control lock with pin are tted correctly (see gure
25).
Safety equipment
Cleaning and inspection
• Clean and inspect all parts carefully. If there are
any cracks or other defects replace the dama-
ged parts with new ones. Always use original
parts.
• Check that the spring is not broken and has not
lost its tension.
Fig 22
Fig 23
Fig 24
