28 – English
Repair instructions

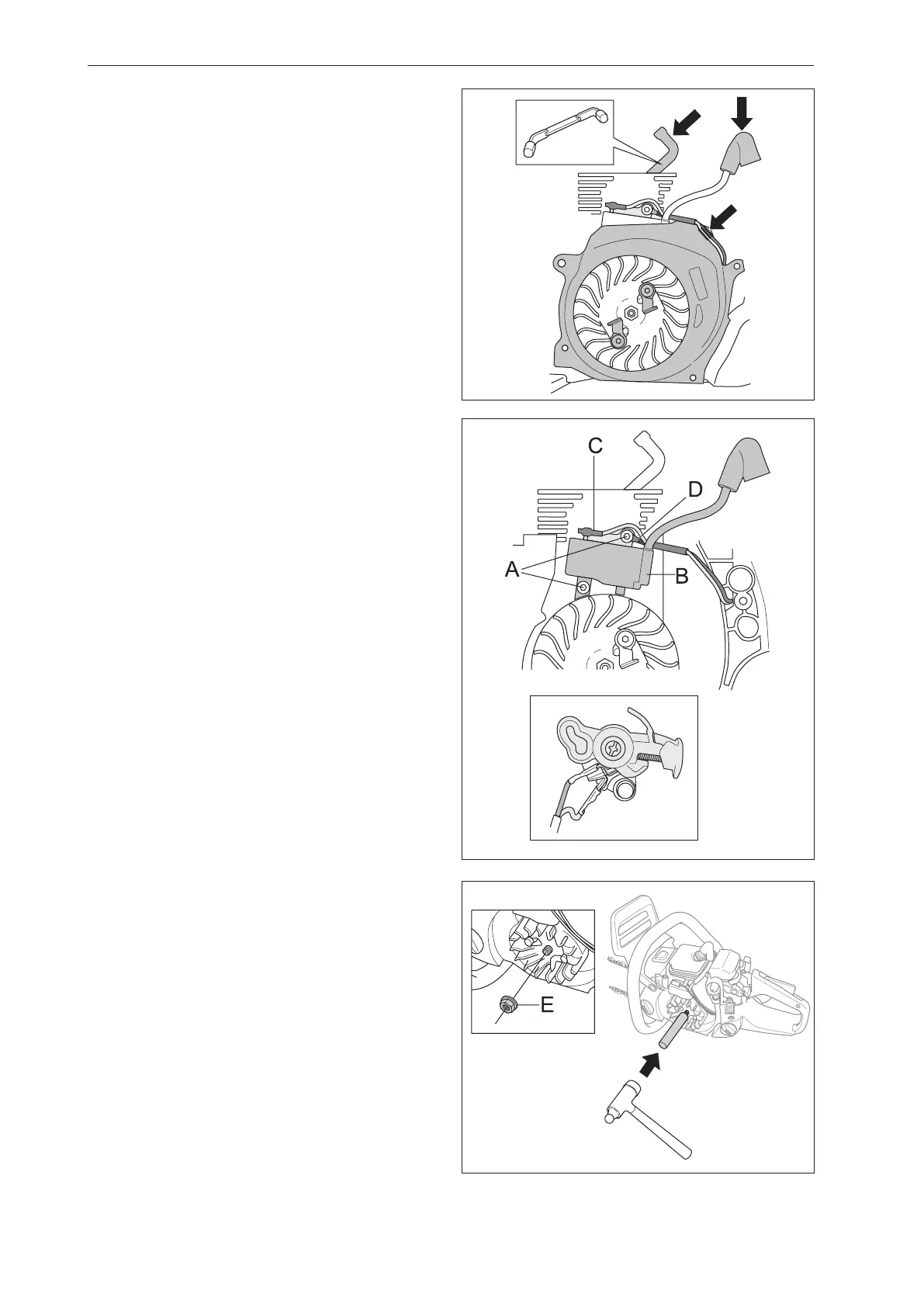

7.7 Ignition module and flywheel
– removal
1
Remove the cylinder cover. Disconnect the HT lead,
remove the spark plug and t piston stop 502 54 15-
01. in its place. Take off the starter assembly, release
the leads from the cable guide and remove it (see
gure 8).
4
Knock on the punch using a metal mallet until
the ywheel releases from the shaft. Remove the
punch and the ywheel (see gure 10).
Cleaning and inspection
Clean all parts, especially the tapers on the
ywheel and shaft.
Check that the ywheel is not cracked or da-
maged in any other way.
2
If replacing the ignition module (B), loosen the
cable lug (C) and screw (A) and unscrew it. The
ignition module can be left in place if you are simply
removing the ywheel (see gure 9).
3
Loosen the ywheel nut (E) using a suitable socket
and remove it (see gure 10).
When replacing the cables, they are tted on the
stop switch, as shown in gure (see gure 9).
Fig 8
Fig 9
Fig 10
