Jonsered CS 2240 Workshop Manual

20 – English
6.5 Chain catcher – replacement
If the chain catcher is worn it must be replaced with
a new one.
1
Release the brake by pushing the kickback guard
backwards. Undo the guide bar bolts and remove
the clutch cover, chain and guide bar.
2
Remove the chain catcher and replace it with a
new one. Check that the vibration damping spring
locates correctly against the crankcase when you
bolt the new chain catcher in position. (see gure
12)
Safety equipment
6.6 Dismantling the start/stop control
1
Remove the cylinder cover and air lter.
2
Loosen the screw and dismantle the control (see
gure 13).
3
Loosen the lter holder from the rubber mountings
(B). (see gure 13)
4
Cut off the starlock washer and pull out the control
from the shaft on the lter holder.(see gure 14)
Cleaning and inspection
Clean and inspect all parts carefully. If there are
any cracks or other defects replace the damaged
parts with new ones. Always use original parts.

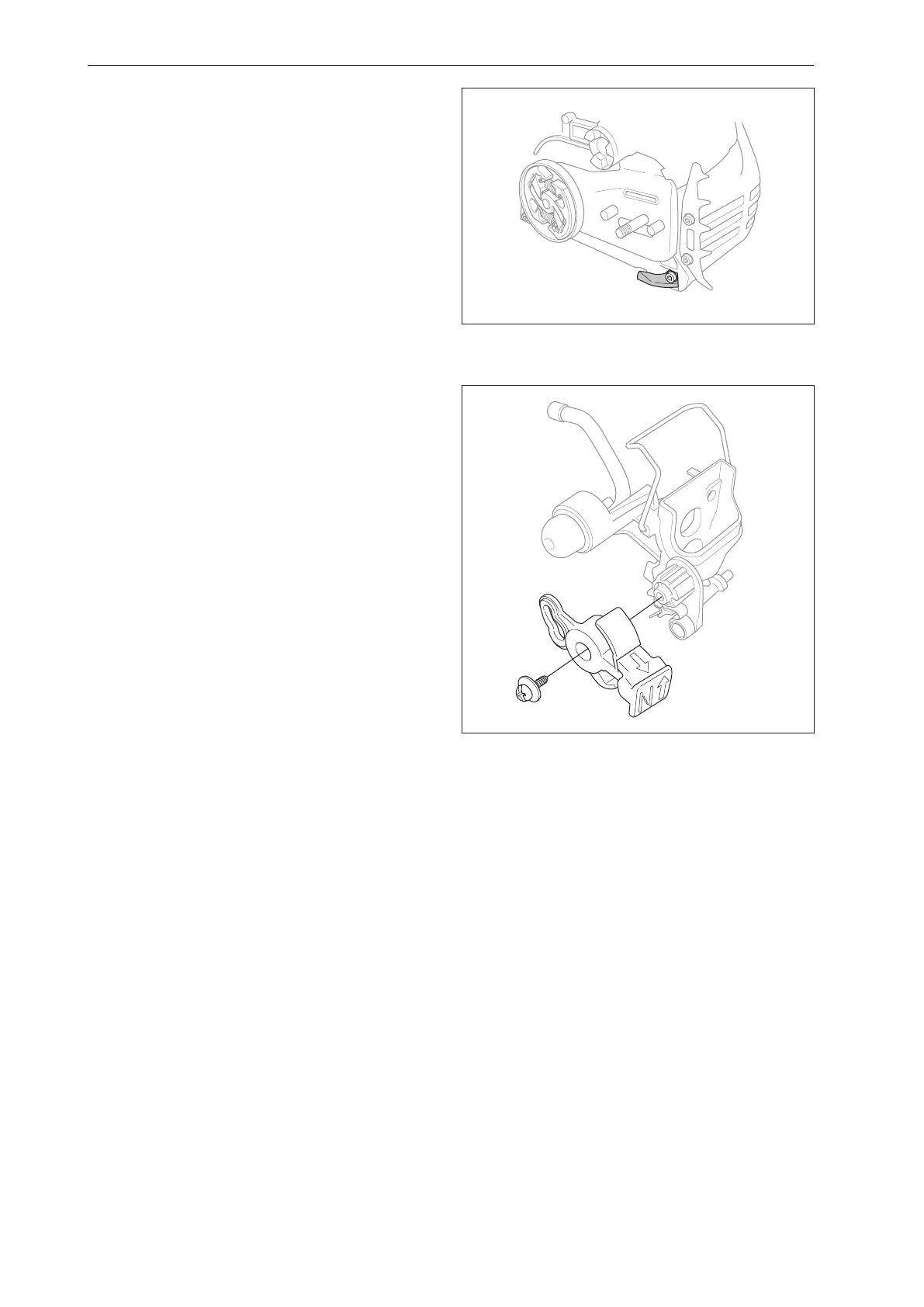

Fig 12
Fig 13

Jonsered CS 2240 Specifications

General

Engine Displacement	40.9 cm³
Power Output	1.8 kW
Weight (excluding cutting equipment)	4.4 kg
Chain Pitch	3/8"
Fuel Tank Volume	0.37 liters
Oil Tank Volume	0.25 liters
