Jonsered CS 2240 Workshop Manual

22 – English
Safety equipment
3

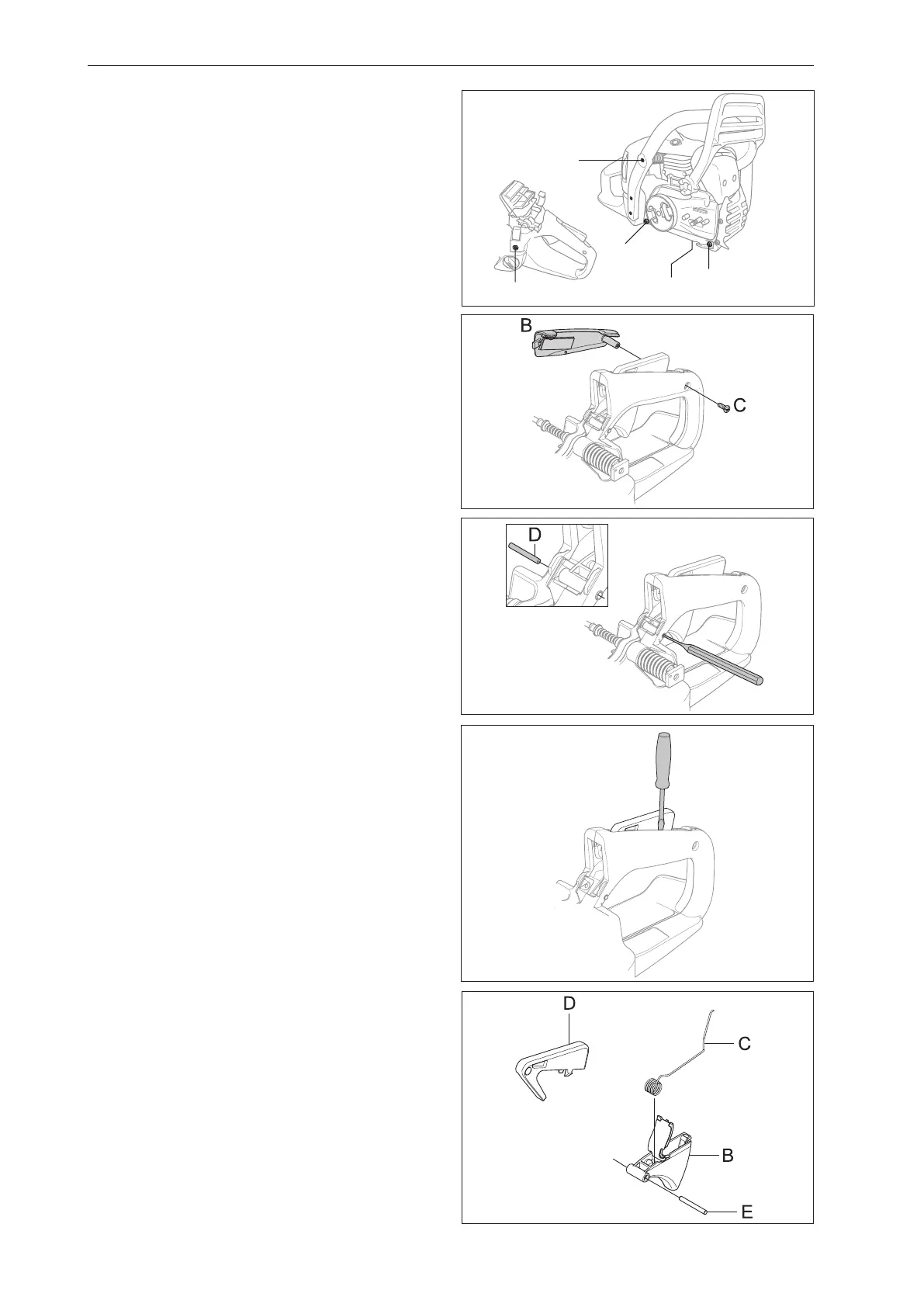

Dismantle the handle insert (B) by loosening the
screw C on the handle (see gure 18).
4
Press out the throttle control pin (D) with the help
of a punch (see gure 19).
5
Loosen the throttle lock as illustrated with the help
of a screwdriver or the like. Then dismantle from
the shaft in the handle (see gure 20).
6
Dismantle the throttle control (see gure 20).
6.9 Throttle lock, throttle trigger and
return spring – removal
1
Loosen the throttle actuator rod on the carburettor,
the fuel hose and the suction hose to the fuel pump.
2
Dismantle the tank unit from the engine unit by
loosening the screws A (see gure 17)
Fig 17
Fig 18
Fig 19
Fig 20
Fig 21
7
Now loosen the spring.
A
2xA
A
A
A

Jonsered CS 2240 Specifications

General

Engine Displacement	40.9 cm³
Power Output	1.8 kW
Weight (excluding cutting equipment)	4.4 kg
Chain Pitch	3/8"
Fuel Tank Volume	0.37 liters
Oil Tank Volume	0.25 liters
