Jonsered CS 2240 Workshop Manual

English – 35
Repair instructions

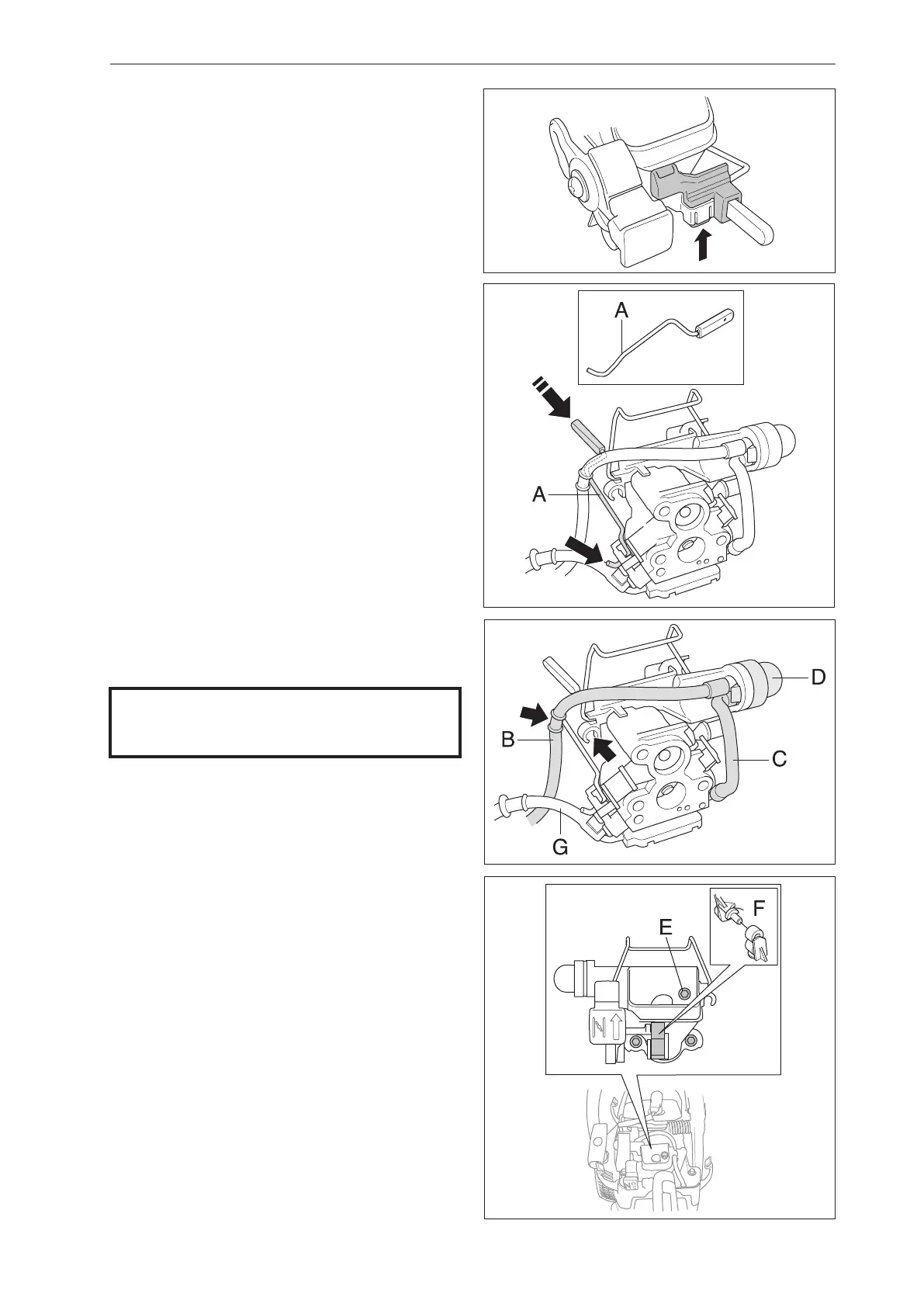

Dismantling the carburettor
1. Dismantle the cylinder cover and the air lter.
2. Disassemble the handle holder (see gure 29).
Fig 29
Fig 30
Fig 31
Fig 32
3. Push the throttle actuator rod out of the han-
dle part. Unhook it from the carburettor (see
gure 30).
4. Remove the return hose (B) and suction hose
(C). Loosen the fuel pump (D). Let the fuel
hose (G) remain in place (see gure 31).
5. Loosen the screws (E) and unhook the rubber
mountings (F) (see gure 32).
NOTE!
Take care when lifting out the carburettor so
that the fuel hose does not become loose.

Jonsered CS 2240 Specifications

General

Engine Displacement	40.9 cm³
Power Output	1.8 kW
Weight (excluding cutting equipment)	4.4 kg
Chain Pitch	3/8"
Fuel Tank Volume	0.37 liters
Oil Tank Volume	0.25 liters
