Jonsered CS 2240 Workshop Manual

52 – English
Repair instructions
7.29 Replacing the bar bolt
Replacing the front bar guide.
1
Drain the oil tank.
2
Knock through the old guide bar bolt so that it falls
into the oil tank.
3
Remove the bolt from the oil tank.
4

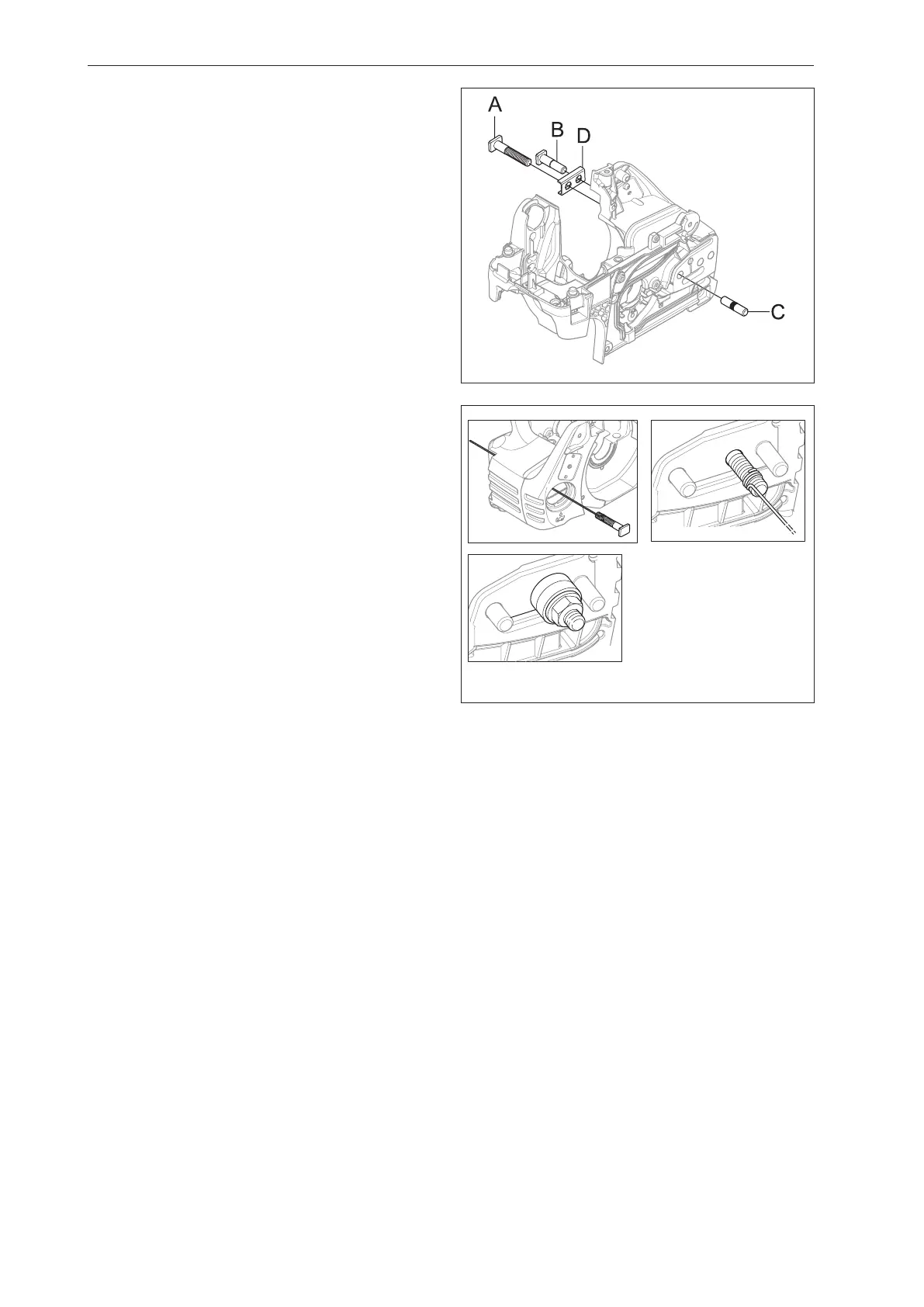

Secure steel wire to the outer part of the bar bolt
(A), thread the steel wire through the oil tank and
out through the bolt hole in the crankcase (see
gure 70).
5
Pull the steel wire so the bolt comes out of its hole
(see gure 71).
6
Check that the bolt's square head ts in
the washer (D) which is positioned in the cut-out in
the crankcase.
7
Pull out the bar bolt with its nut. Place a spacer
between the nut and crankcase (see gure 71).
8
Rell with chain oil.
Replacing the rear bar guide
1
Pull out the bar guide (C) with the help of slip-joint
pliers (see gure 70).
2
Fit the bar guide with the help of a hammer.
Fig 70
Fig 71

Jonsered CS 2240 Specifications

General

Engine Displacement	40.9 cm³
Power Output	1.8 kW
Weight (excluding cutting equipment)	4.4 kg
Chain Pitch	3/8"
Fuel Tank Volume	0.37 liters
Oil Tank Volume	0.25 liters
