Jonsered CS 2240 Workshop Manual

40 – English
Assemble on the saw
1. Press the carburettor down towards the parti-
tion wall. Make sure that it gets into the correct
position.
2. Fit the lter holder by hooking the choke con-
trol into the choke lever (A).
3. Hook on the rubber mountings. Insert and
tighten the screws.
Repair instructions

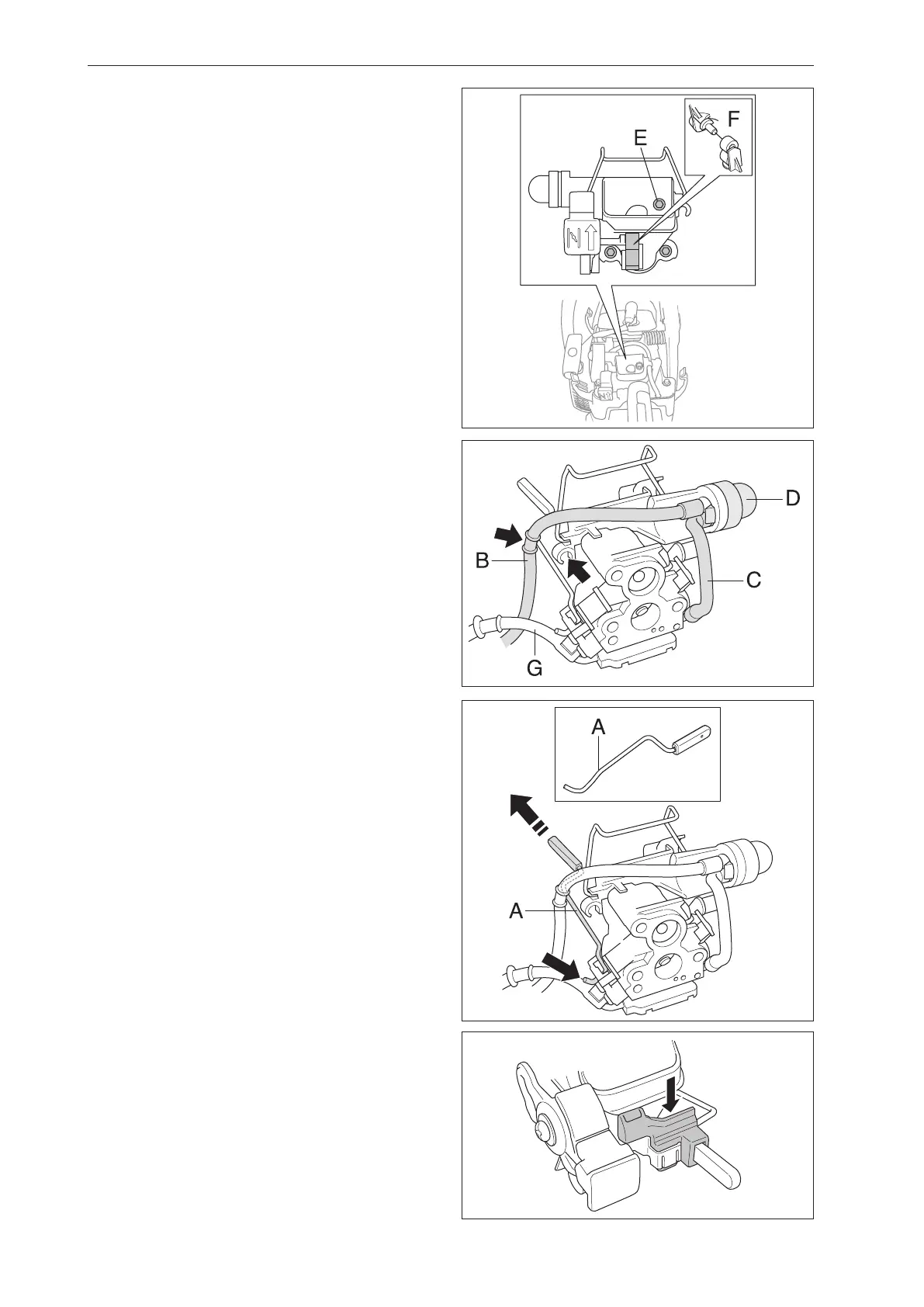

Fig 39
Fig 40
Fig 41
Fig 42
4. Insert the return hose (B) into its position in the
lter holder.
5. Press on the fuel diaphragm (D). Fit the suc-
tion hose (C) and return hose (B).
6. Hook in the throttle actuator rod into the carbu-
rettor. Thread the handle holder into the throttle
actuator rod (A). Push the rod forwards so that
it can be inserted into the handle part.
7. Push down the handle holder into the lter
holder (see gure 42).
8. Assemble the air lter and cylinder cover.
9. Mount the handle holder.

Jonsered CS 2240 Specifications

General

Engine Displacement	40.9 cm³
Power Output	1.8 kW
Weight (excluding cutting equipment)	4.4 kg
Chain Pitch	3/8"
Fuel Tank Volume	0.37 liters
Oil Tank Volume	0.25 liters
