English – 9
Service Schedule
The following is a list of maintenance procedures that must be performed on the rider. For those points not
described in this workshop manual, refer to the operator’s manual.
50
100
Page
Maintenance interval
in hours
25
Maintenance
Daily
mainten-
ance
before
starting
● = Described in this workshop manual.
❍ = Not described in this workshop manual.
▼ = Described in the operator’s manual

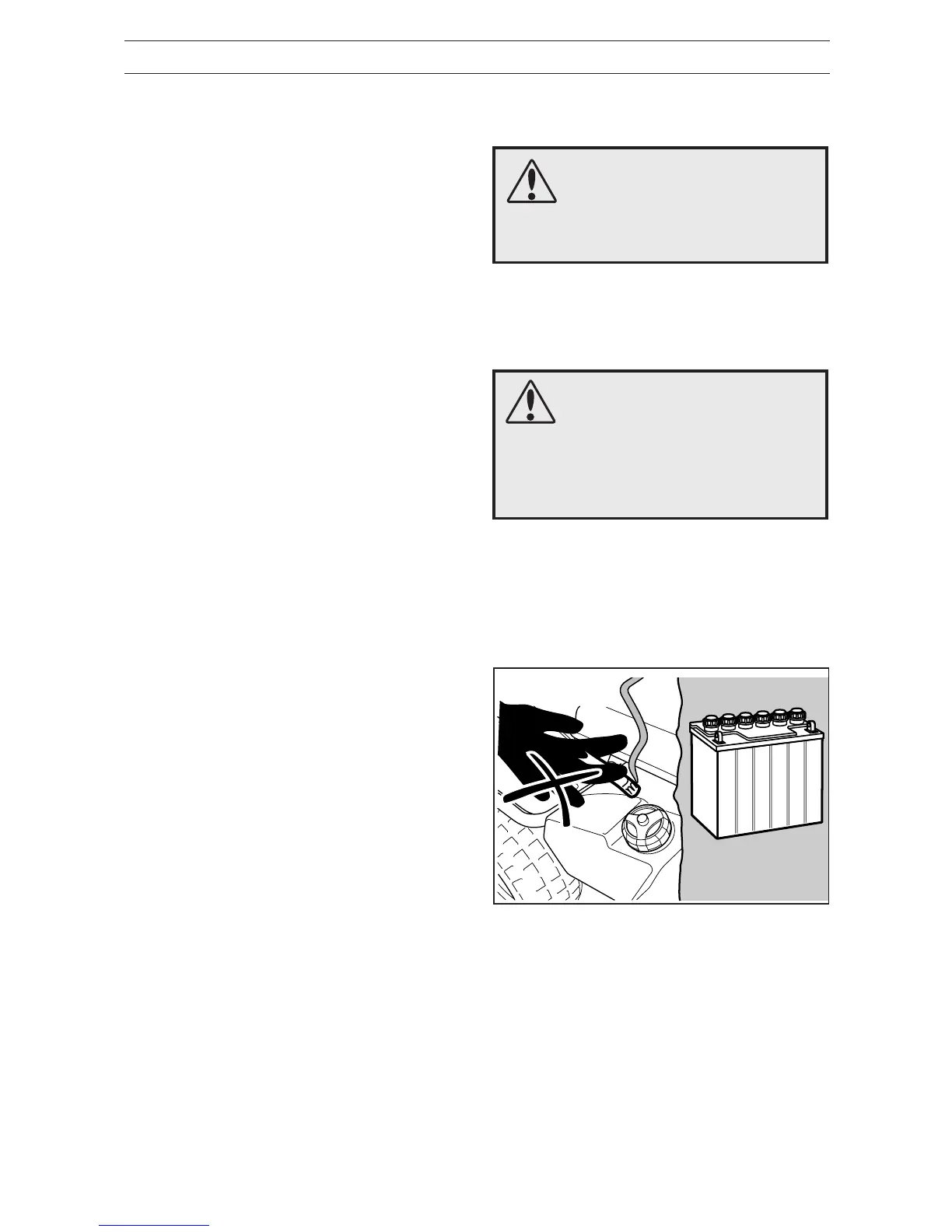

WARNING!
No service operations may be performed on the engine or cutting unit unless:
• The engine is stopped.
• The ignition key has been removed.
• The ignition cable has been removed from the spark plug.
• The parking brake is on.
• The cutting unit is disengaged.
Delivery and Dealer Service
1)
First change after 5 hours.
2)
In dusty conditions, cleaning and replacement are required more often.
3)
With daily use, the rider should
be lubricated twice weekly.
4)
Performed by an authorised service workshop.
Check the engine oil level 12 ●
Check the engine’s cooling air intake - ▼
Check the fuel pump’s air filter - ▼
Check the steering cables 26 ●
Check the brakes 29 ●
Check the battery 11 ●
Check the safety system 59 ●
Check nuts and bolts - ❍
Check for any fuel or oil leakage - ❍
Change the engine oil
1)
26 ●
Clean the air filter’s pre-filter (foamed plastic)
2)
- ▼
Check the cutting unit 45 ●
Check the air pressure in the tyres (60 kPa) 13 ●
Lubricate the belt adjuster
3)
- ▼
Lubricate joints and shafts
3)
- ▼
Adjust the brakes, FR 13, FR 2111 29 ●
Check the V-belts - ❍
Check the transmission’s cooling fins on
hydrostatic machines - ❍
Check the transmission’s oil level on hydrostatic
machines 44 ●
Adjust the brakes on hydrostatic machines 29 ●
Checking and adjusting the throttle cable 24 ●
Clean the cooling fins on the engine and transmission
2, 4)
- ❍
Replace the air filter’s pre-filter and paper filter
2)
- ▼
Replace fuel filter - ▼
Replace spark plug - ▼
