3.6 To the right (Ackermann)
If this function is activated, the trailer/semi-trailer steers to the right according to the Ack-
ermann principle. In that case, the imaginary plumb lines go through the wheels of the artic-
ulated vehicle through a point that is to the right of the articulated vehicle. The angular
rotation differs per wheel on the steered axle.
Depending on thecustomer’s requirements,left and right can beswapped
over.

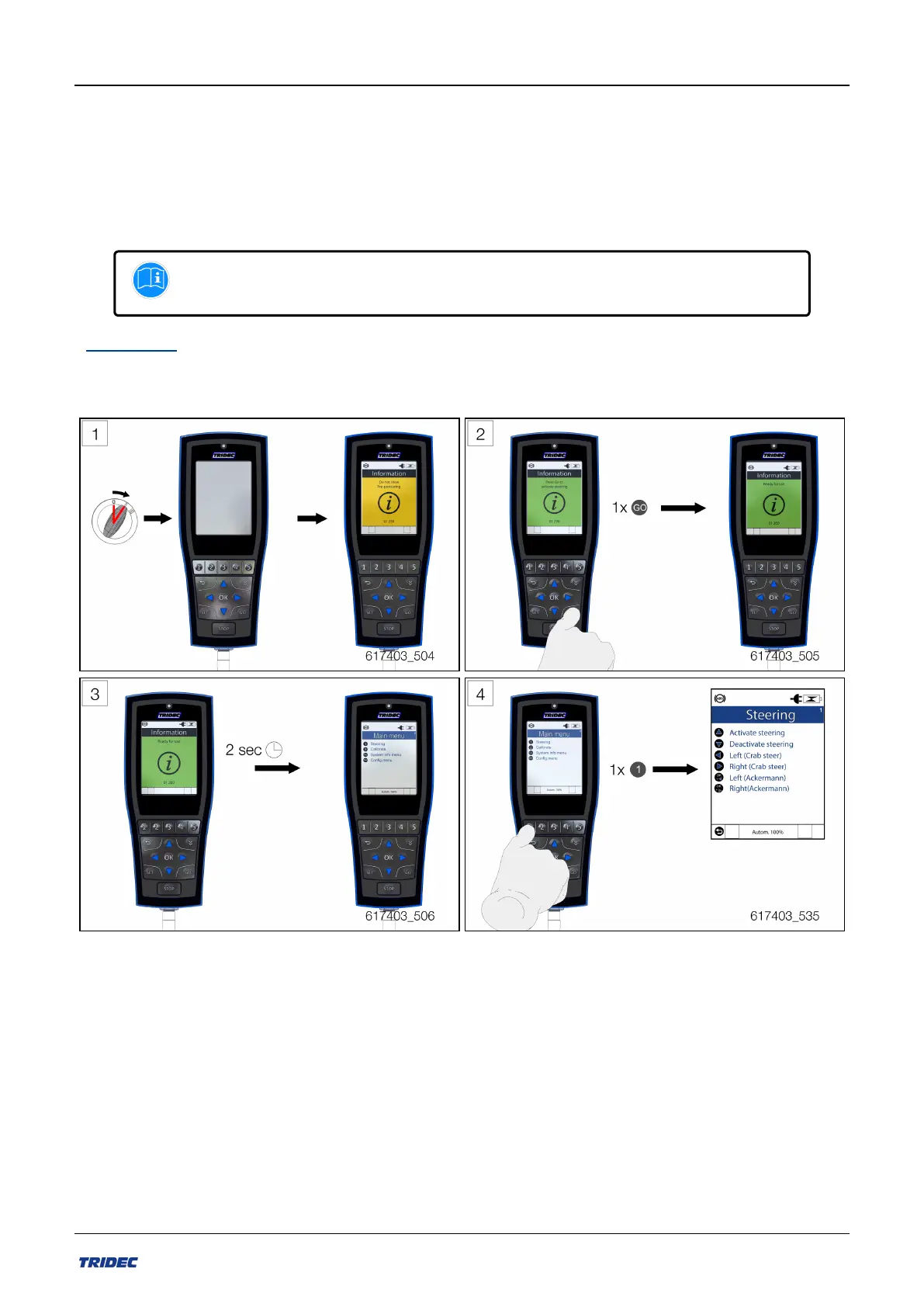

Procedure:
1. Follow the procedure given below.
Part no.: 162014 EN-1
43
Release 07/2020
User manual 2300 EF-S system
