7.3.3 Sensors
This menu shows the various sensor values, such as:
n The "towing angle" and the "steering angle".
n The oil pressure in the centring circuit(s) and steering circuit(s).
n The temperature of the various components.
Towing angle and steering angle
The angle sensor (WS) transmits two signals: the WSA steering signal and the WSB control sig-
nal. The value of the WSA signal is a measure of the angular rotation of the wheel or the king-
pin. The numbers 0, 1, 2 and 3 before the abbreviation WS indicate where the angle sensor
is located.
0WS = angle sensor on the kingpin
1WS = angle sensor on axle 1
2WS = angle sensor on axle 2
3WS = angle sensor on axle 3

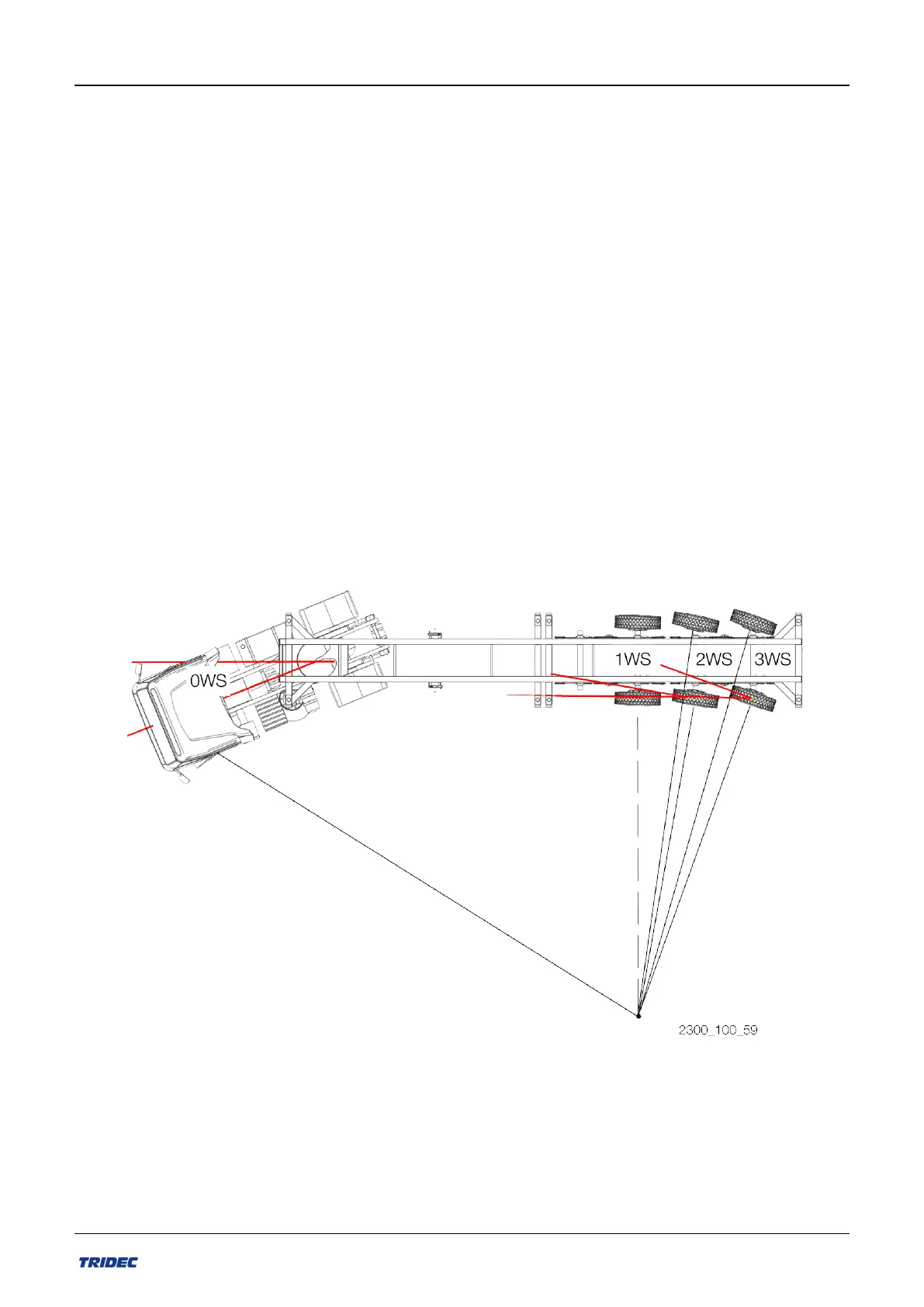

Figure 7-2
Part no.: 162014 EN-1
78
Release 07/2020
User manual 2300 EF-S system
