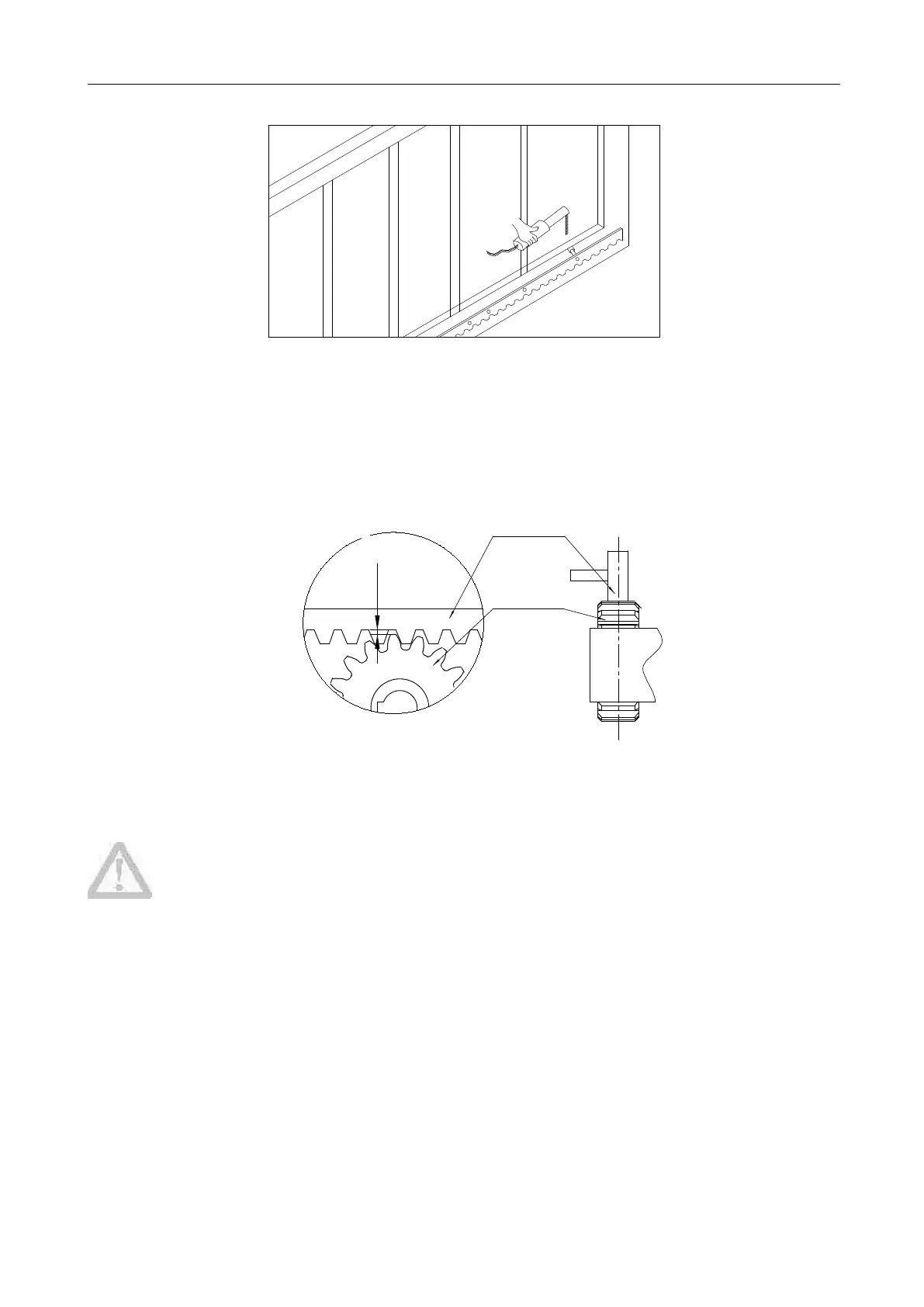

The fit clearance of output gear and rack is shown in Figure 7 below:
1-21-2
GearGear rackrack
OutputOutput geargear
mmmm
Figure 8
Warnings
To ensure safety, install safety stop blocks on both ends of the rail to prevent the gate from
running out of the rail. Before installing the main machine, make sure that the safety stop blocks
are installed in place, and check whether it has the function of preventing the gate from running
out of the rail or safety range.
Please make sure that the main machine and its components have good mechanical properties,
and the gate can be operated flexibly when manually moved before installing the main machine.
Please note that for this product, one control can only drive one main machine, otherwise, the
control system will be damaged.
