9
Earth leakage circuit breaker must be installed in where the gate movement can be seen, and
the minimum mounting height is 1.5m to avoid being touched by children.
After installation, please check whether the mechanical property is good or not, whether gate
movement after manual unlocking is flexible or not, whether the installation for infrared sensor
(optional) is correct and effective.

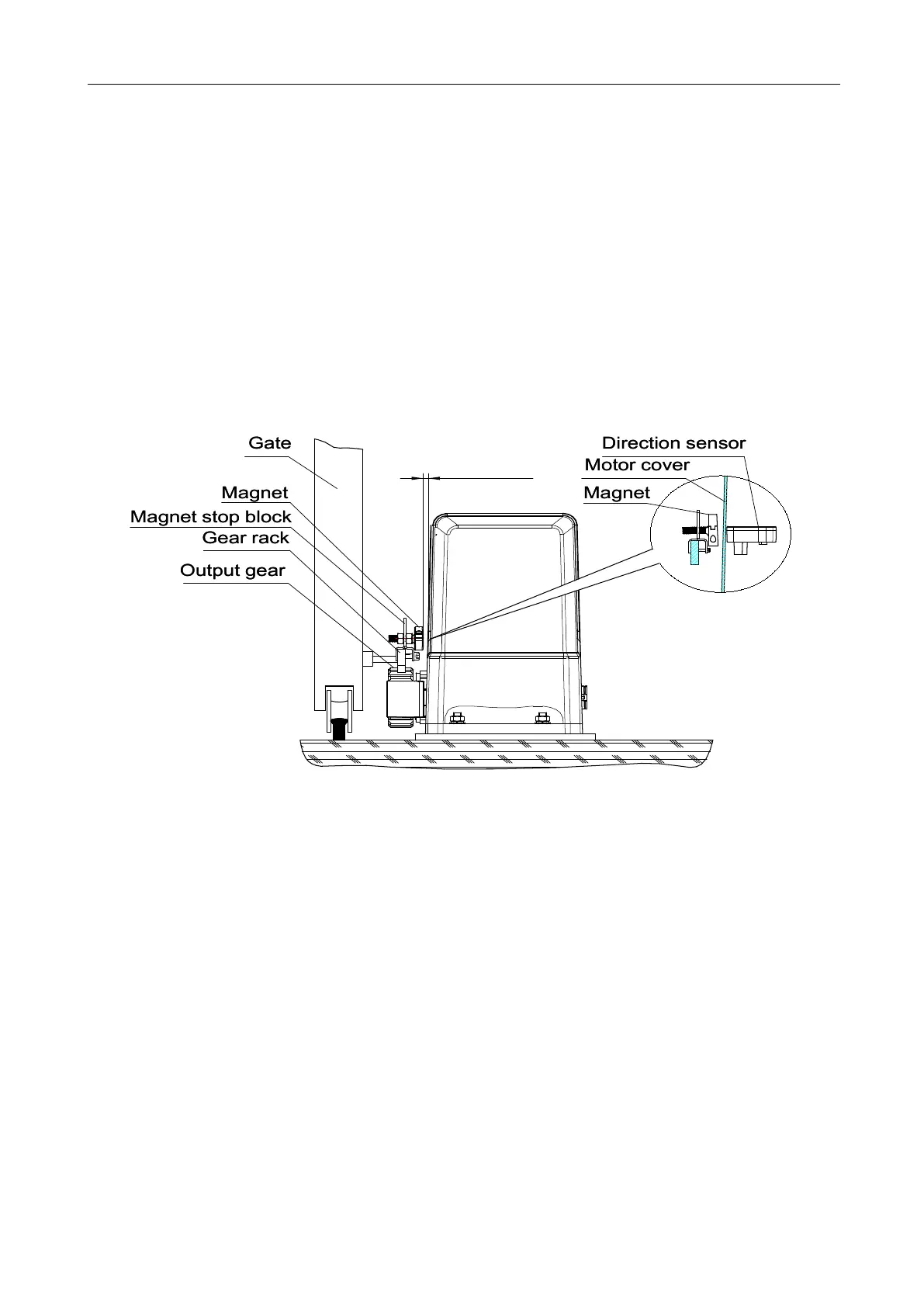

4.3.4 Magnet Installation
The installation position of magnet is shown in Figure 8:
OutputOutput geargear
GateGate
GearGear rackrack
MagnetMagnet stopstop blockblock
DirectionDirection sensorsensor
≤10mm
MotorMotor covercover
MagnetMagnet MagnetMagnet
Figure 9
The installation position of magnet should be on the gear rack near the middle of the door. It cannot
be moved or removed after opening travel limit position and closing travel limit position are settled.
4.3.5 Direction Sensor
Take right side installation as example (factory default setting)
Working Principle:
The direction sensor is a gadget installed inside the machine, which will be mutually inductive with
the magnet installed outside. When the gate is closed, the sensor rod inside the direction sensor is
right-biased; when the gate is opened, the sensor rod inside the direction sensor is left-biased. After
To Next Page
