JPT YDFLP - Installation Guide; Mechanical Dimensions

YDFLP Fiber Laser Installation
Guide and User Manual
FileNumber:EFLP001‐B‐E ShenzhenJPTOpto‐electronicsCo.Ltd.
 Version：BDate:2016.4
12
2. Installation
2.1 Dimensions
1．Dimension of main body

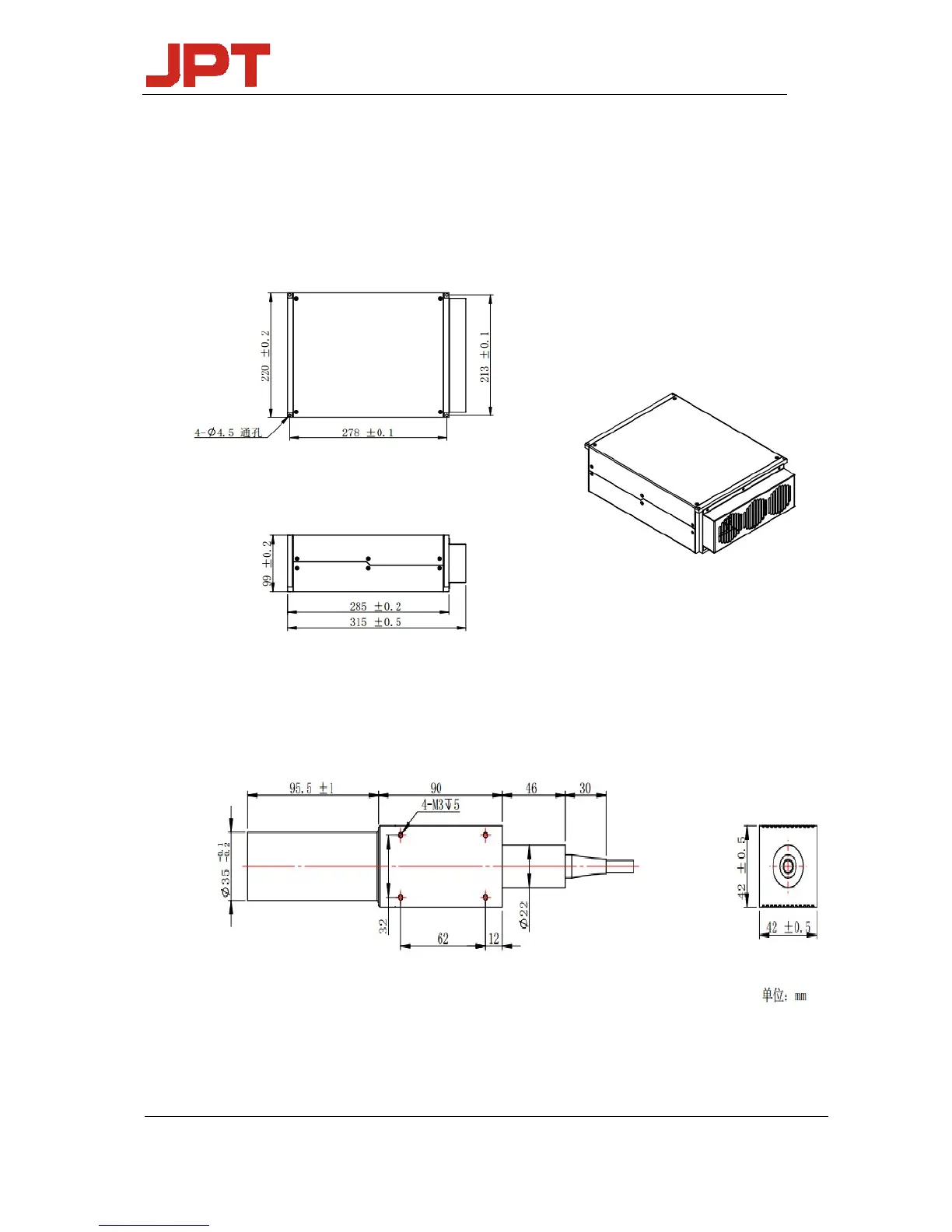

Figure 7 Mechanical Dimensions of the fiber laser module (Unit: mm)
2. Mechanical Dimensions of the output isolator
Figure 8 Mechanical Dimensions of the output isolator (Unit: mm)
