JR XP6102 User Manual

5.9
SWITCH SELECT
The XP6102 allows the several options to
be programmed for the dual rate, gear and
flap switches.
Aileron and elevator dual rates can be
programmed to be individually selected
via it's own switch (Individ) or the aileron,
elevator and rudder functions can be
combined to operate from one of 4
switches.
The gear channel can be programmed to
operate on one of 4 switched or rockers
or it can be inhibited, helpful for some
types of mixing. Plus the flap channel can
be programmed to operate from switches
or levers.
24 XP6102 - Airplane Manual

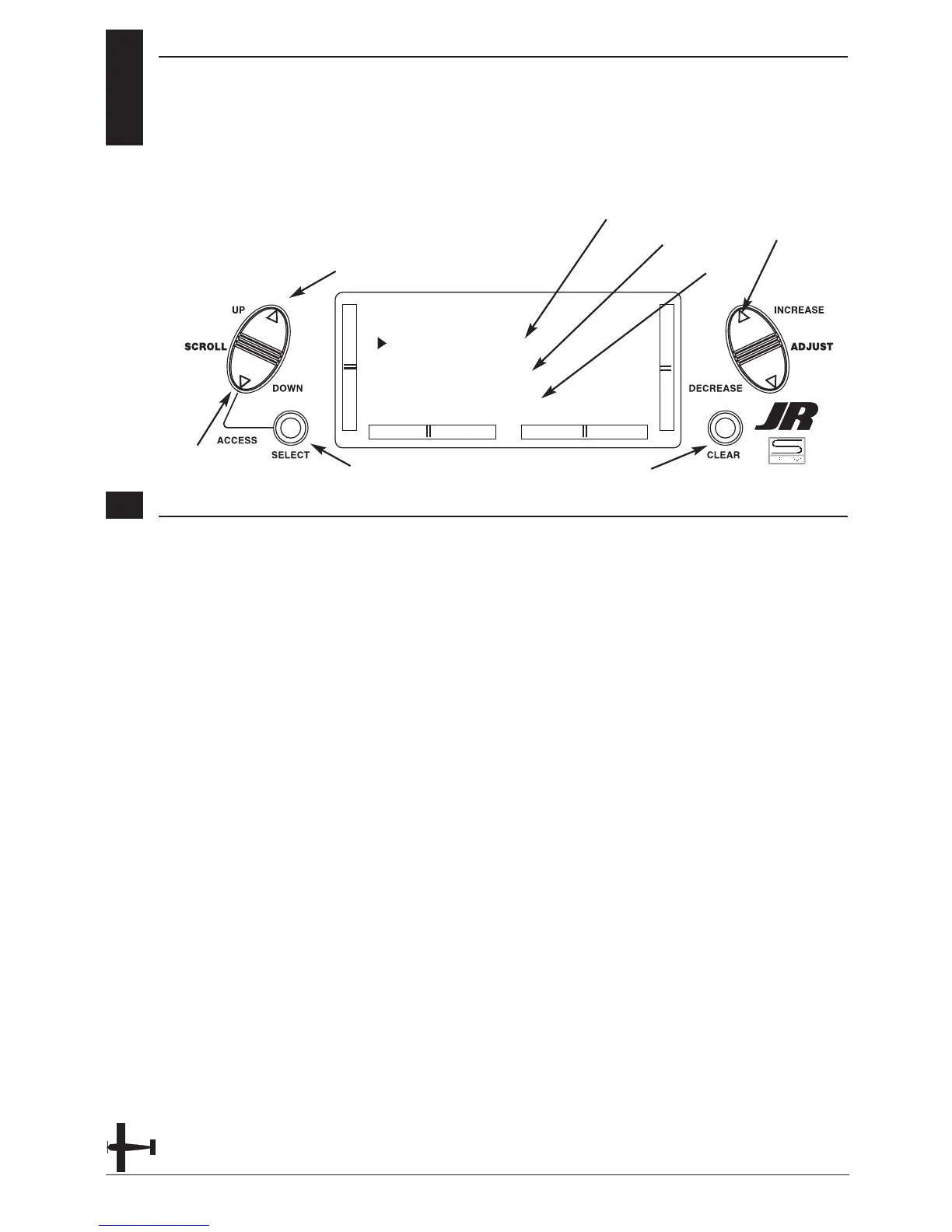

[SWITCH SEL]
D/R INDIVID
GEAR LEFT SW
FLAP RIGHT SW
Gear indicator
Dual Rate indicator
Reset selection to default
Go to Wing Type menu
Go to
Trainer menu
Switch selection
Accessing the Modulation Function
Dual Rates
D/R INDIVID (default) - In this mode
the aileron and elevator rates are
independently selected using the
ELEV D/R and AILE D/R switches.
Note: In this mode the rudder D/R is
always in the 0 position and is not
selectable. This is the default setting.
COM AILE - In this mode the aileron,
elevator and rudder dual rates are
combined on the AILE D/R switch.
COM ELEV - In this mode the aileron,
elevator and rudder dual rates are
combined on the ELEV D/R switch.
COM R-SW - In this mode the aileron,
elevator and rudder dual rates are
combined on the upper right (flap) switch.
COM L-SW - In this mode the aileron,
elevator and rudder dual rates are
combined on the upper left (gear) switch.
Gear Channel
LEFT SW (default) - The gear channel
operates from the left upper (gear) switch.
AILE D/R - The gear channel operates
from the aileron dual rate switch.
ROCKER - The gear channel operates
from the right rocker switch and offers
three positions.
INHIBIT - The gear channel is inhibited
and is centered making it useful as a slave
channel for mixing.
RIGHT SW - The gear channel operates
from the right upper (flap) switch.
Flap Channel
RIGHT SW (default) - The flap
channel operates from the right upper
(flap) switch.
LEFT SW - The flap channel operates from
the left upper (gear) switch.
ELEV D/R - The flap channel operates
from the elevator dual rate switch.
FLAP LVR - The flap channel operates
from the left flap lever and is proportional.
Flap indicator
Select function
