JR XP6102 User Manual

71XP6102 - Helicopter Manual
Accessing the Throttle Curve Function
1. Place the transmitter switch in the On
position.
2. Press the Down and Select keys
simultaneously to enter the Function
Mode.
3. Press either the Up or Down key until
THRO appears in the upper portion of
the LCD.
Note: Use NORM for hover curves and
STUNT for aerobatics. We will
concentrate on the hovering curve
during this example.
4. Press the Select key to select the point
of the curve you want to change.
5. Press either the (+) or (-) key to change
the value of the current curve point. The
range of each point is 0-100% in .5%
intervals.
Note: In each curve, the factory setting
indicates INH for points 1 and 3.
These values are 25% and 75%
respectively if no value changes are
made to any other points. If any of
the other points have been changed
while these points were inhibited, the
inhibited points will also change to
plot a smooth curve. If you want to
keep this from happening, press the
Select key until the display indicates
P-1 or P-3 at the upper right portion
of the LCD. Press either the (+) or (-)
key to activate the points 1 (25%) or
3 (75%). The values for each of these
curves can then be fully adjusted by
pressing either the (+) or (-) key.
6. To set curves for STUNT mode, press
the Select to highlight the NORM
function, then press the (+) or (-) key to
select the STUNT function. Repeat Steps
4 and 5 to complete the procedure.
7. Access the PITCH CURVE function by
pressing the Up key.
8. Access the THROTTLE HOLD function
by pressing the Down key.
9. Exit the THROTTLE CURVE function by
pressing the Down and Select keys
simultaneously.
Throttle Time Settings
The throttle trim lever is only active when
the flight mode switch is in the normal
position. The throttle trim is used to
increase or decrease the engine power
when the flight mode switch is in the
Normal mode. The throttle trim lever has
no effect on positions 1 or throttle hold.
Note: Making changes to the throttle
trim lever does not change the input
values for any of the points on the
throttle curve; it merely makes
adjustments to the engine idle
speed position.
[THRO]
NORM
P-3
INH


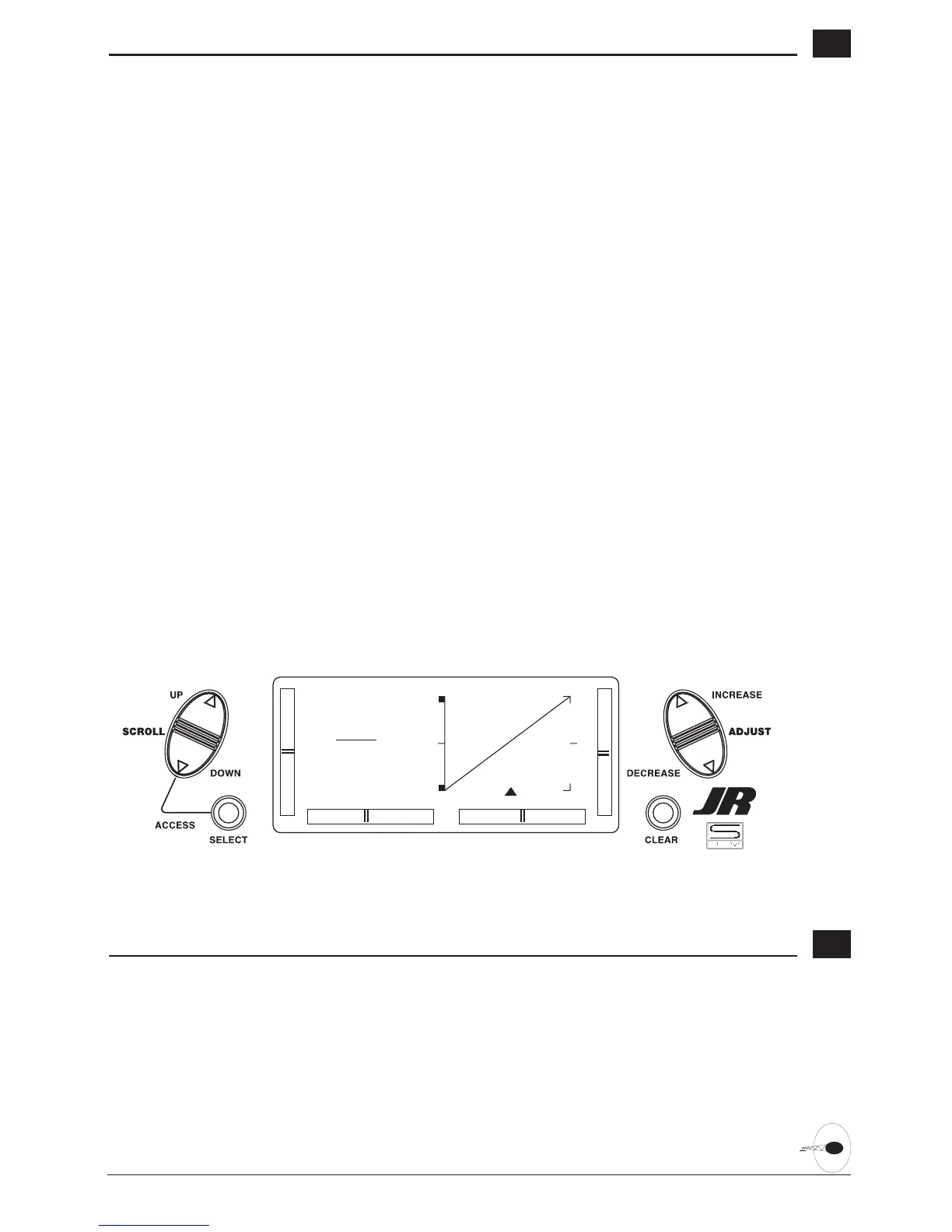

Screen showing setting the Mid-Point of the Normal Throttle Curve
