7 Setting the Chart display
Chart display detail is set through the [View] menu.
The display procedure of the Chart display setup dialog box is as follows.
7.1 Setting up the display of Chart Common
1 Click on the [Menu] button on the left tool bar.
The menu is displayed.
2 Click on [View] - [Options] on the menu.
The [View-Options] dialog box appears.
3 Select [Chart Common] in the classification pane.

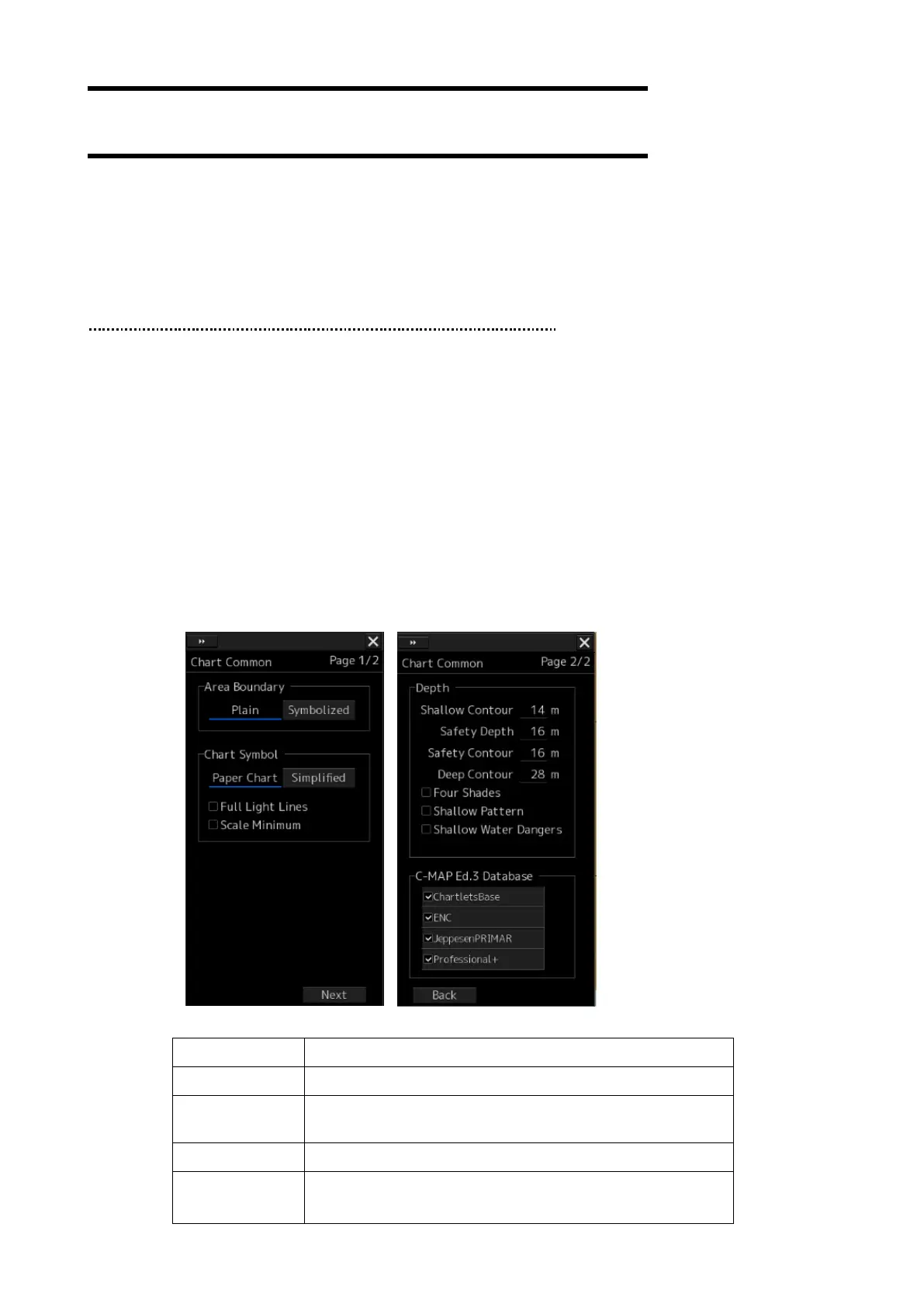

The [Chart Common] dialog is displayed in the edit pane.
The edit pane is divided into two dialogs.
To advance to the next dialog: Click on the [Next] button.
To return to the previous dialog: Click on the [Back] button.
Setting Item
Description of Setting
Area Boundary
Select a display method of area boundary.
Chart Symbol
Select a type of chart symbols that want to use on the
chart.
Depth
Use [Depth] items to set up the depth.
C-MAP Ed.3
Database
Select this to show a chart database chart.
