JRC JFV-700 Series User Manual

9
2.1 Mounting of Echo Sounder
(1) Mounting location
1. The transducer cable tends to pick up generate noise, thus the echo sounder must
be installed in a location that can prevent interference between the cable and a co-
axial cable on a radio equipment.
2. The echo sounder must not be installed near a DSB or amateur radio equipment.

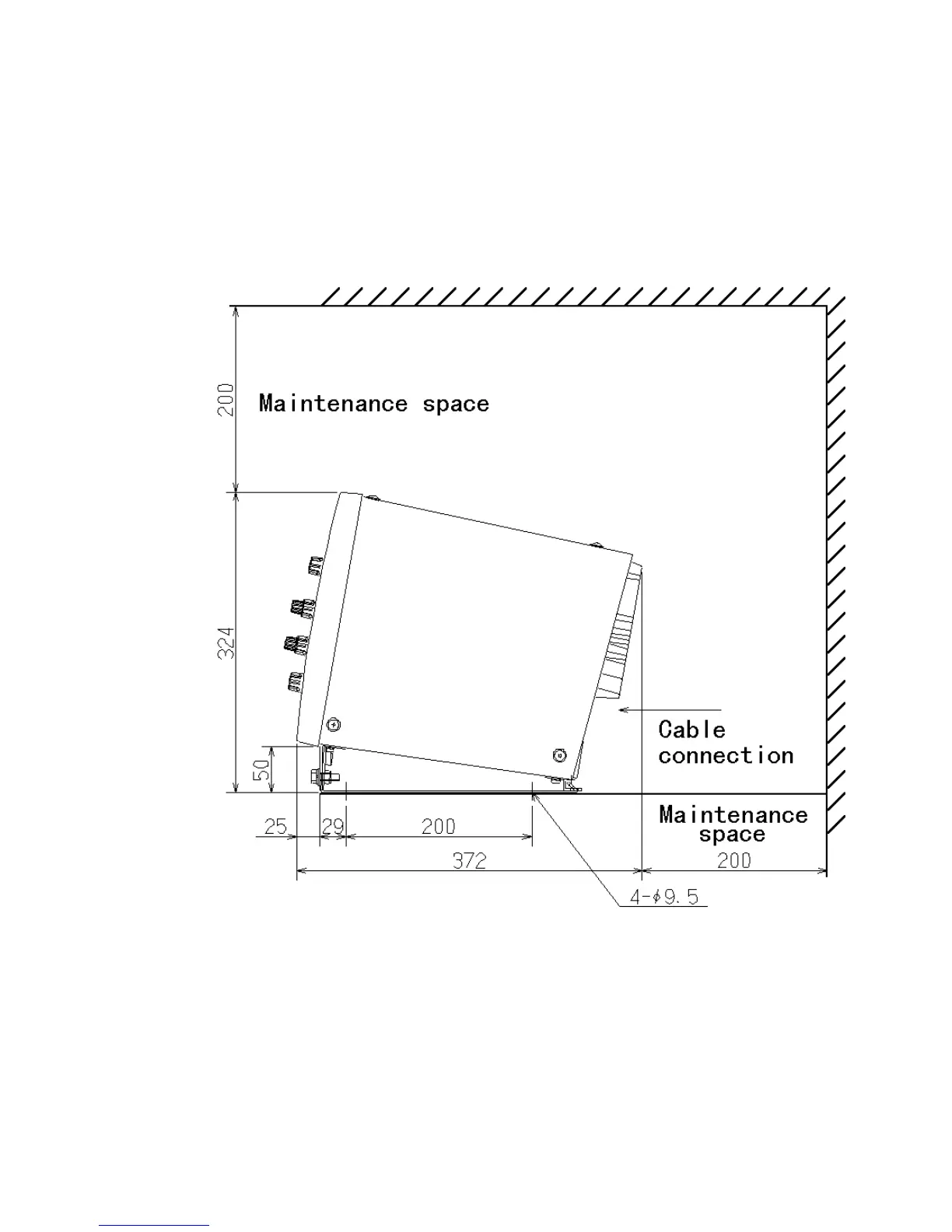

Side View of Mounted Echo Sounder ( Unit : mm )
