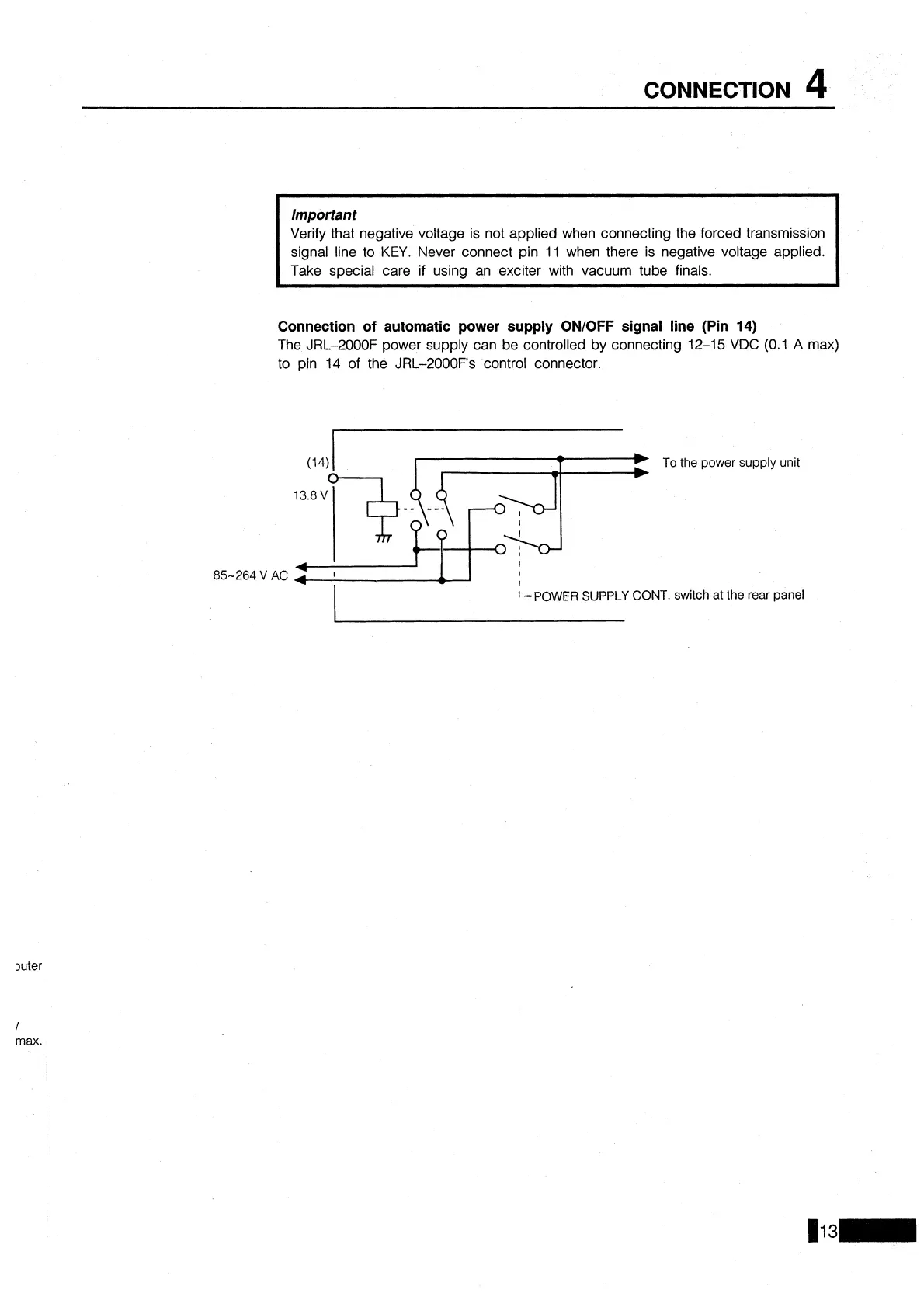

CONNECTION
4
Important
Verify that negative voltage is not applied when connecting the forced transmission
signal line to
KEY.
Never connect pin 11 when there is negative voltage applied.
Take special care if using an exciter with vacuum tube finals.
Connection
of
automatic power supply
ONIOFF
signal line (Pin
14)
The JRL-2000F power supply can be controlled by connecting 12-15 VDC
(0.1
A
max)
to pin 14 of the
JRL-2000F's control connector.
I
4
I
I
85-264
AC
+
I
I
I
I
-POWER SUPPLY CONT.
switch at the rear
panel
I
max.
