JS-AZ PRIS SCALE - Connector Pin Assignments

7
.

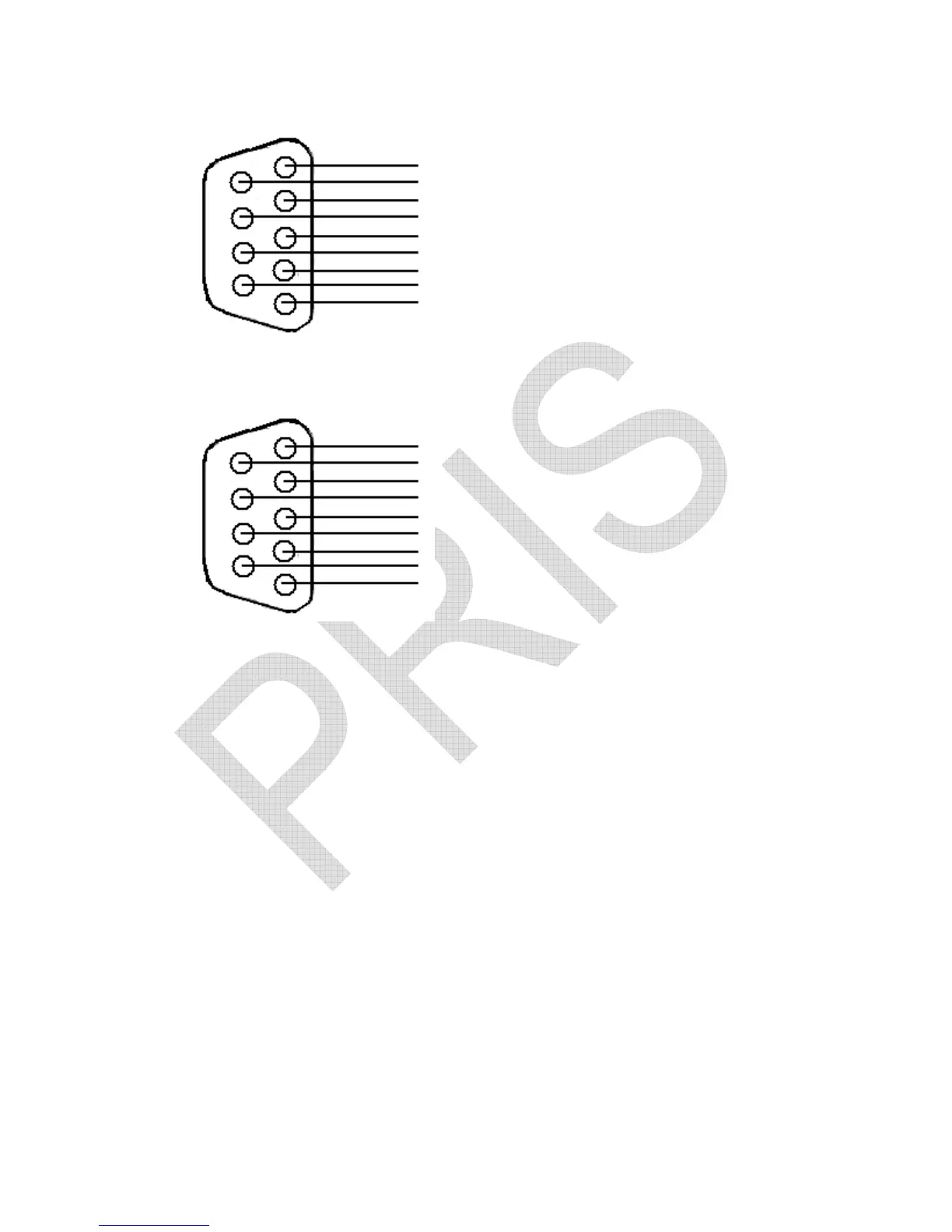

Remote platform connector
RS232 Connector (3-color alarm lamp)
1
6
2
7
3
8
4
9
5
PIN
1 + Excitation
3 Shield
5 – Excitation
7 + Signal
9 – Signal
1
6
2
7
3
8
4
9
5
PIN
2 RXD
3 TXD
5 GND
6 VCC
7 Yellow
8 Green
9 Red
