IX. RS-232 Output

The scale can be ordered with as optional RS-232 output.

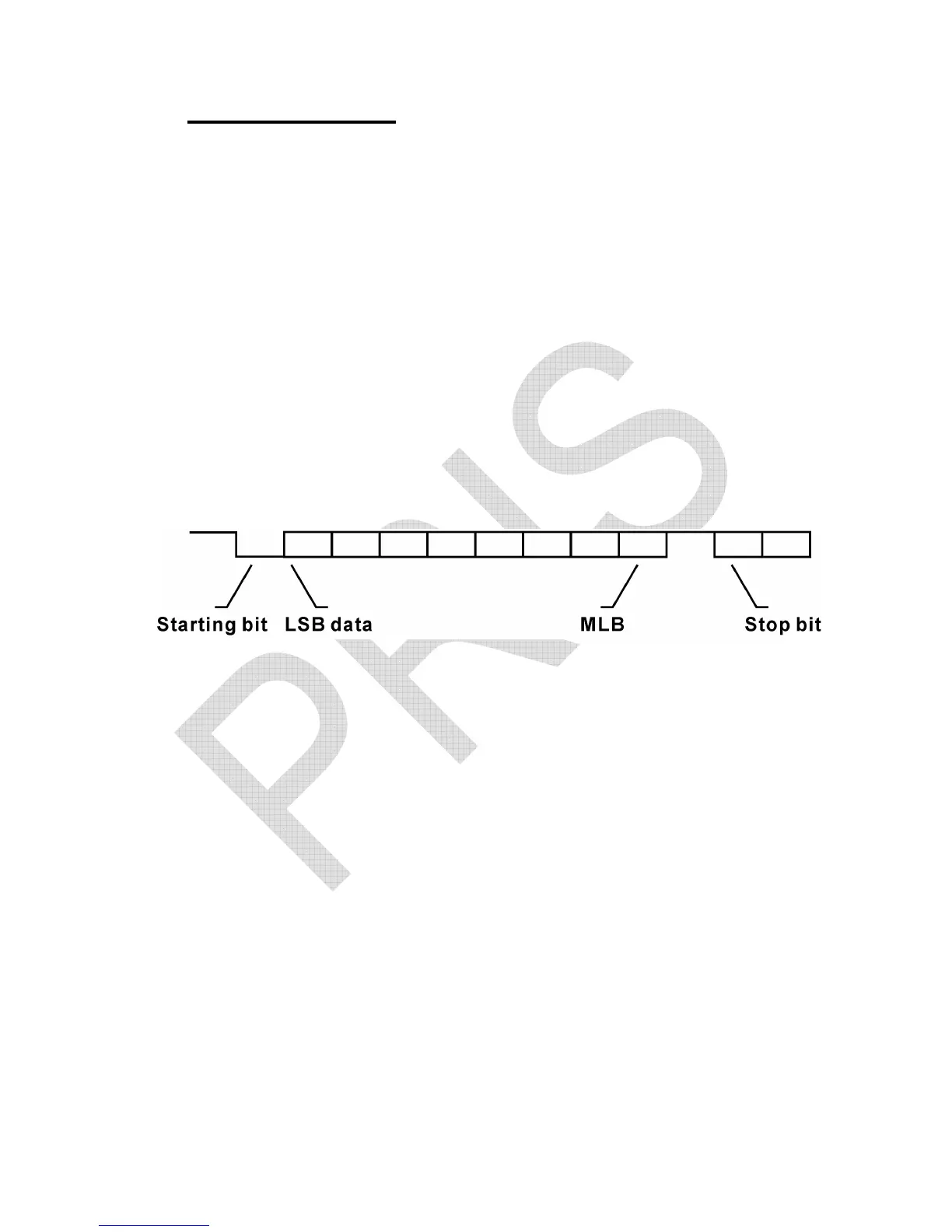

1. Model EIA-RS 232C’s UART signal

2. Format:

Baud rate: 1200~9600 BPS

Data bits: 8 BITS

Stop bit: 1 BIT

Code format: Code ASCll

Connector: 9 Pin Socket

Pin2 Input

Pin3 Output

Pin5 Signal Ground

3. Transmit Format, when it is in Accumulation mode and transmit by

pressing the following keys:

Press the ADD key

Record#01

Net 02000.0 g

U/W 000000 g

Pcs 000000

Press the ADD key again

Record#02

Net 03000.0 g

U/W 000000 g

Pcs 000000

Press the TOTAL/PRINT/ENTER key
