– 139 –
(2) Replacement of parts
1) Replacement of fuses
The SDC board is provided with two replaceable fuses for power source protection.
o F1 fuse 10AT : DC +50V power source protection fuse for large presser motor driving
o F2 fuse 5AT : DC +24V power source protection fuse for small pulse motor driving and solenoid valve
driving
In regard to the fuse mounting position, refer to 2)-2. Replacement of SDC board.
2) Replace the board
1. Replacement of MAIN board
This board is provided with a memory device (EEPROM) that stores the adjusting data singular to the machine
and also the operation setup data. This memory device can be out of order due to a problem in the board.
However, since precious data are stored there, it is recommended to transfer this memory device to a new board
after replacement.

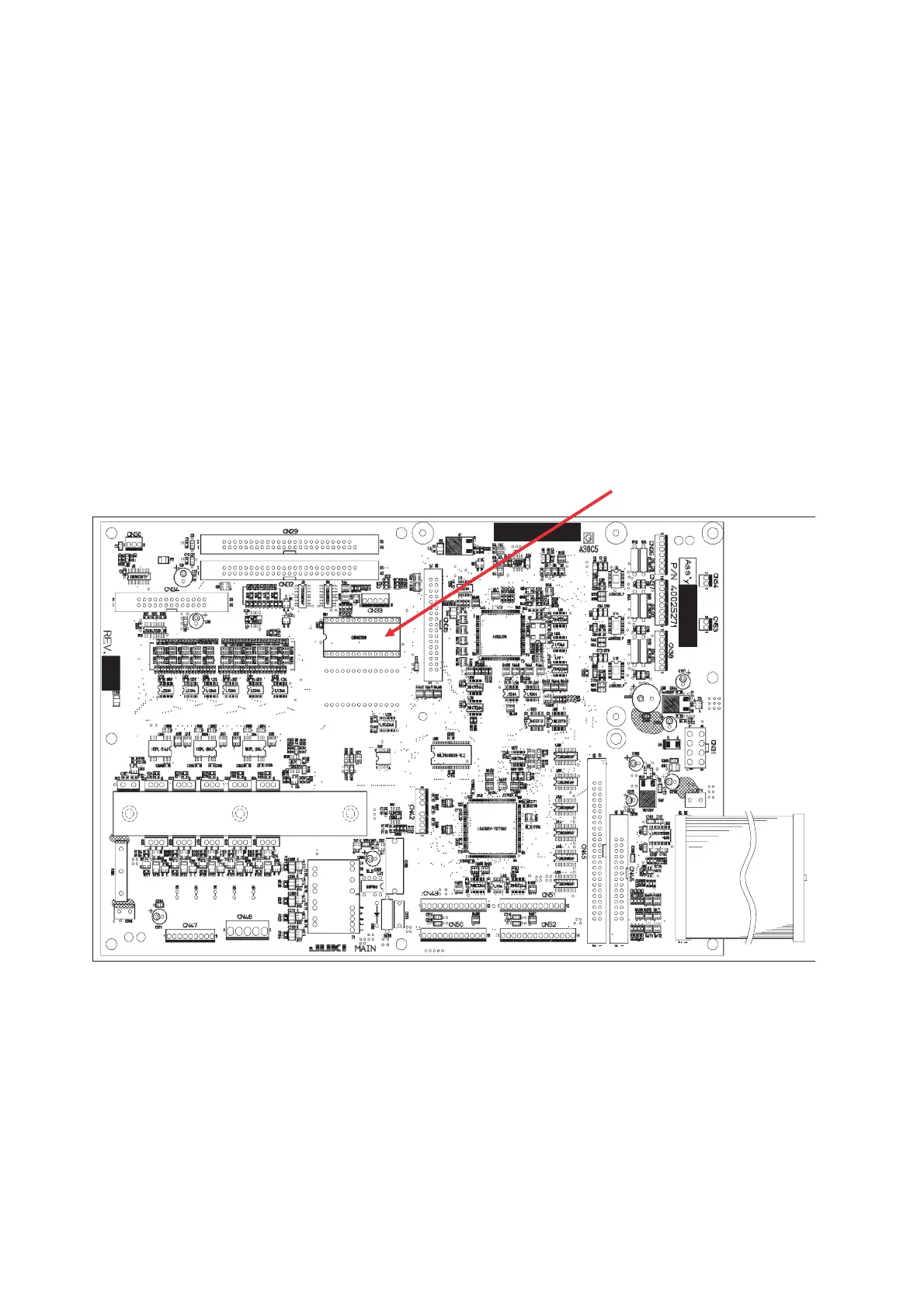

According to the diagram shown below, replace the MAIN board carefully, not to damage the EEPROM terminals.
EEPROM
To Next Page
