JUKI APW-895 - Standard Adjustments; Machine Head Adjustments; Timing Belt Replacement

3. Standard Adjustment
(1) Machine head

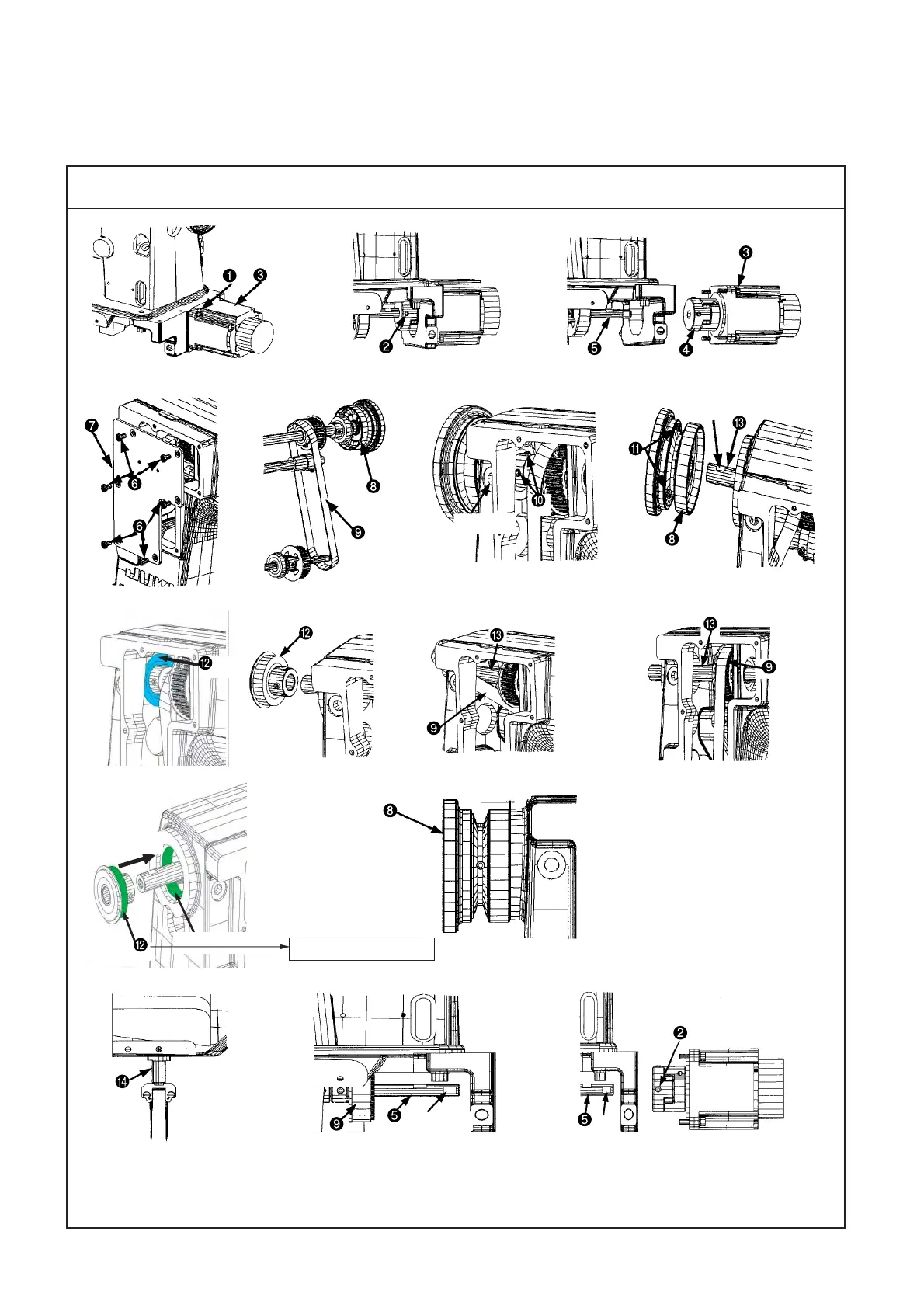

1) How to change the timing belt
– 3 –
Flat in
front
Arm inner diameter
Up dead position
No. 1 screw
Flat
Flat
0.5mm
Arm hole
Driving
Standard Adjustment
Parts no. : 40029049
