JUKI APW-895 - Needle and Hook Timing

10) Adjustment of center knife motion stop
– 13 –

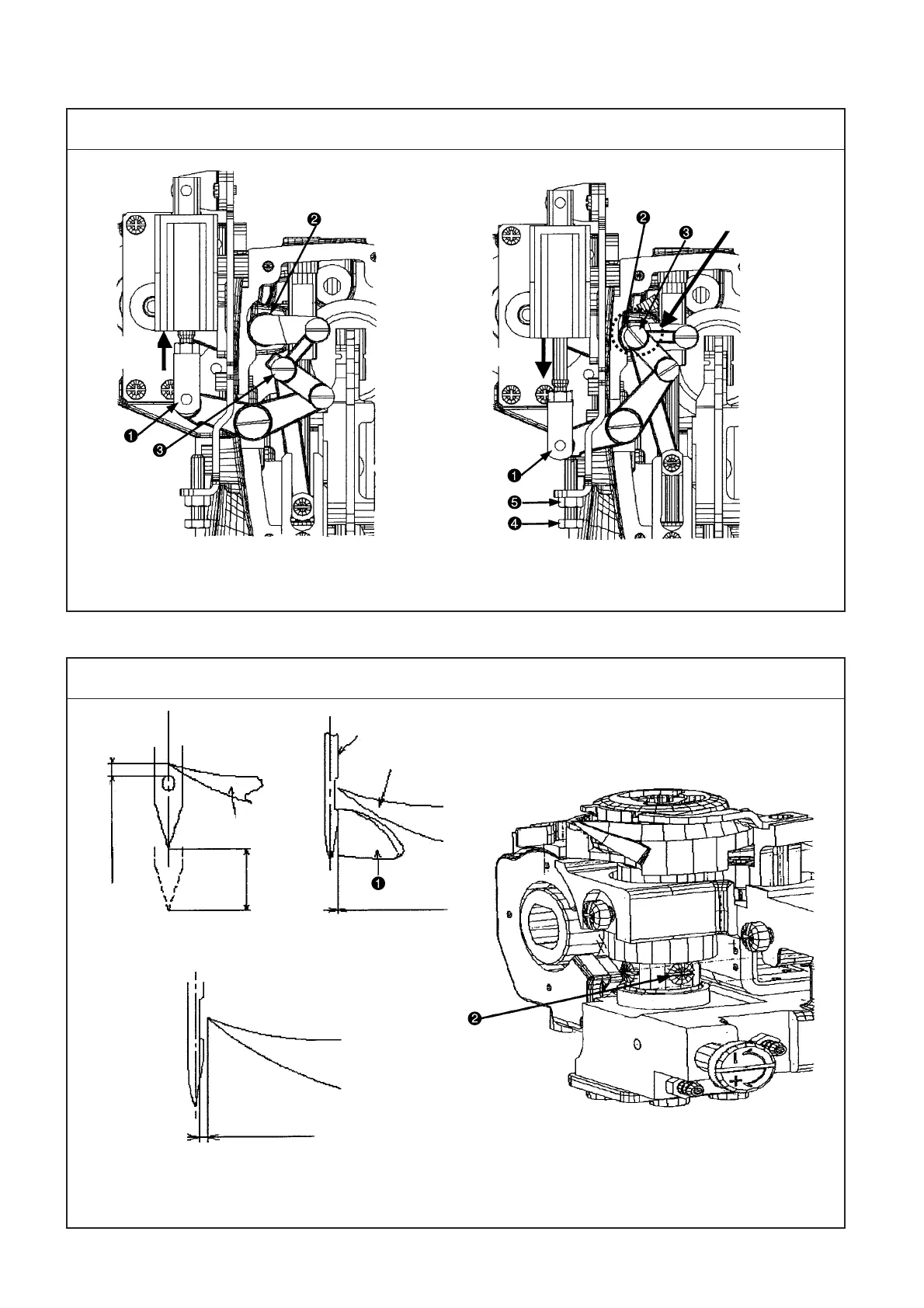

11)Timing adjustment of needle and hook
Protruded
Coincidence of
shaft centers
1.3
±
0.2mm
Blade point
3.5mm
Withdrawn
Lifting position
Needle
Blade point
0 to -0.05mm
0 to 0.03mm
Standard Adjustment
Standard Adjustment
